MOBILE FIELD HOSPITAL









Mobile Hospital (Field Hospital)


This one is sold and an example only - but


We can supply all Field Hospital made and equipped on your order - either in Tents or in Containers



Made in Europe


(All offers subject to prior sale and final confirmation)


Surface space:

approx. 1,000 squaremeters

Capacity:

300 peoples

Specifications:

3  tents 9 x 12 meter with insulatingand hygienical inlets
+ 17 smaller tents
beds complete

blankets and airbeds

Departments:

Reception
renuntiation ward
anaesthesia ward
operation ward

- all sections are complete -

Devices:

x - ray apparatus
laboratory
ambulance
pharmacies
therapy - devices
operation devices
bandage material

industry, tables, cabinets and further accomodation

Special:

3 electricity generators with cable andlights
complete food-unit with kitchen, dishes, cisternetc.
Material to erect toilets, washing-rooms,

firing and more cisterns

Packed:

complete on pallets

Price:

ASK





Details:

Characteristic of the Hospital

The hospital is designed to admit, sort and temporarily hospitalize wounded persons with mild and severs injury.
It provides professional surgical aid, its equipment makes it possible to carry out major operations on limbs and chest and miner operations on head.

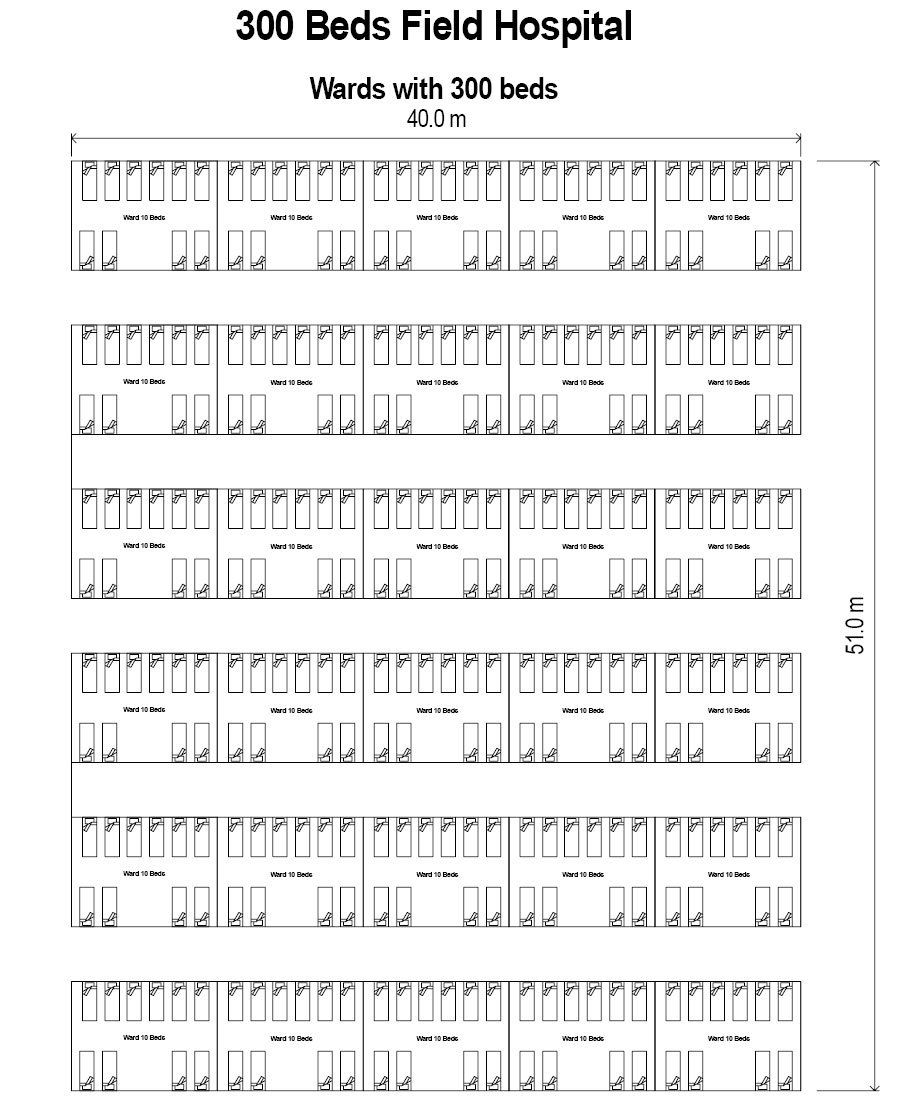

The hospital capacity is 300 beds, and the hospitalis placed in tents or appropriate buildings in various combinations.The performance of the main workplace of the hospital the surgery dressing unit is 40 to 59 surgeries, of which 11 major and 24 medium or 39minorones.

Possible Structure of the Hospital

1. Special cleaning treatment department
2. Admission department
3. Resuscitation
4. Anaerobic department
5. Surgery dressing unit / main work place of the hospital
6. X-ray department
7. Pharmacy department with dispensary and preparation of infusion solutions
8. Laboratory with out-patient department
9. Hospital department with 300 beds
10. Administration section
11. Accommodation for staff

Optimum Staff for the Hospital

11 medical doctors specialized in surgery
  2 pharmaceutical chemists
50 paramedical staff
50 other staff in charge of running the hospital

To unfold the hospital of this type in winter or summer takes 10 12 hours or 5 6 hours, respectively.

The material of the hospital comprises 30.10MT (Megatons)
of which sanitary material  14.00 MT
food                                            2.70 MT
other material                         11.00 MT

The composition of the material and is packing permit to be transported by all means of transport / truck, railway, car,ship or plane.

Hospitals of this type can also operate in the so called declared zones according to the Geneva Convention, provided they are visible marked with the symbol of red cross as requested by theConvention.

Material

Pos.

Name

Cartons

Description

1

SetB - 01 60 P

6

dressing cotton well package

2

SetB - 02 60 P

3

splints

3

SetB - 03 60 P

11

unsterilized dressing package

4

SetB - 010 60 P

3

anaesthetic material

5

SetLA 60 P

1

small autoclave

6

SetN - 06 80

4

medical objects

7

SetN - 08 80 REX

1

larg eoperating theatre

8

SetN - 09 80

1

operating material f. operation Dressing depart.

9

SetN - 13 80

11

hospital requisite / f. bedridden patients at medical transfer

10

SetS - 01 60 P

1

shock articles / for injured and burned patients

11

SetV - 01 80

2

large dressing unit / surgical instrum. and med. article

12

SetN - 15 80

2

small operating unit for small size surgical operations

13

SetV - 08 80

1

ambulance unit for outpatient examination

14

SetV - 05 80

1

disinfecting unit

15

SetV - 07 80

1

oxygen set

16

Medical bag Z VZ 80

6

first aid equipment

17

SetN - 05 70

1

medicine chest consumption material

18

SetN - 06 70

1

pharmaceutical unit / prepare section of sterilized drugs

19

SetL - 01 60 P

1

basic laboratory / clinical laboratory diagnostics

20

SetLCH - 1 70

2

washroom for the operation of field pharmaceutical unit

21

AutoclaveAut 41 VZ 65

1

Sterilization

22

Sterilizing drum

26

390x 195 mm

23

Crutches

60

wooden made with handles

24

Vessel

6

for disinfecting solution

25

Vessel

30

for blood transfer

26

Base for stretcher - store

16

27

Bracket for 3 stretchers

6

28

Distillation apparatus DP 5

2

29

AnaestizerNHM

1

30

Table for instruments store

9

31

Operating table - field type 59 positions

2

32

Dressingtable - field type

7

33

Plasticbottle - capacity 25 liters

12

34

Vesselfor stool dispatch

20

35

Vesselfor smear dispatch

20

36

Vesselfor spura dispatch

20

37

NTSbottle complete 0.5 liters capacity

600

38

AnaestizerNMP V

3

39

Whiteoperating rubber shoes

25 pairs

40

Sanitarystretcher - VZ 80

2

41

SetSKCM 60 P

1

commercialmaterial for the execution of auxiliary tasks

43

SetNZ 60 F

1

fitter'stools

43

Plasticoperating saron

60

44

SetNT 60 F

1

joiner'stools

45

Oxygenbottles, capacity 2 liters

14

46

Oxygencylinder, capacity 10 liters

10

47

Oxygencylinder, capacity 40 liters

5

48

Medicalequipment for treatment

1

of10 persons - oxygen

49

SetPSX 60 P

1

repumningstation for oxygen from 40 liters capacity cylinders in 2 literscapacityvessel

50

Manualresuscitation apparatus RK-32 V

6

51

Resuscitationapparatus SPIRETA V

4

52

Suctionflash 0-69 pedal type

5

53

Universalholder

3

54

Backsupport on stretcher

5

55

Twopart trestle

17

56

Universalstand

15

57

Platefor instruments

2

58

Vesselfor disinfecting

5

Solutionwith holder

59

Holderfor 1 wash basin

3

60

Holderfor 2 wash basin

4

61

Packhead

2

62

Bottleholder NIS

5

63

Bracketfor tent division

4

64

Showerunit MKS

1

smallshower set for hygienic washing up of 30 persons/hour

65

InstrumentPDP - 2

1

portabledisinfecting apparatus for clothes and underwear

66

X-rayapparatus ARTEX 2

1

67

Darkroom for x-ray apparatus

1

The set of medical material is without medicamentsand chemicals
The operation of pressure vessels requiresto carryour regular revisions and attendance by trained and instructedpersonal.

NCN Sanitary Material

Provisions for 1 set:


1.

Trailer field kitchen Type 26 E

3 units

2.

Water tank PP - 3 or PP - 5

1 piece

3.

Water bag, 100 liters

8 piece

4.

Water reservoir Z - 800

1 piece

5.

Material and utensils issuing room B

1 unit

6.

Dining utensils, tree parts

3,000 units

Pressure vessels for oil field kitchens were notsubjected to inspection by technical supervision.
The military administration does not undertake any responsibility for contingent technical defects on these pieces ofequipment.






Description:

Mobile Surgical - Type Hospital

The surgical field hospital is designed for admittance,classification and temporary hospitalization of moderately injured patients.It provides expert surgical medical aid. The equipment of the hospitalmakesit possible to perform major surgery of limbs thorax, and minor surgeryhead.The capacity is 300 beds.
The system of the field hospital consist of thedepartmentof special purification, of the admitting department, of resuscitationdepartment,and anaerobic department. The principal working place is aoperation-rebandagingblock. There are also a pharmacy department witha pharmacy and the manufactoryof infusion solutions, an x-ray department,a laboratory with an ambulanceand three hospital departments, each witha capacity of 100 beds. There isa maintenance section to ensure the operationof the hospital.
Hospitals of this kind can work in so called"declaredconditions" under the Geneva conventions, provided they are visiblemarkedwith an emblem of Red Cross.
The responsibility of the admitting departmentis toadmit and record injured people, to determine their diagnoses andabove allto provide immediate first aid.
The basic equipment of this working place consistsofstretchers that are, according to available conditions, placed on theconsolesfor stretchers or are laid or stands.
The set No. 7 - Medical items - serves for necessarytreatment of patients, as well as sets B-1 and B-2 A parts of these setsisalso a bandage material and splints for immobilization of limbs.
The equipment of the department of entries iscompletewith the first aid kid and neccessary hygienic instruments
The responsibility of the department of specialpurificationis to provide a complete special purification of patients.It is divided ontothree working-places:

a. disrobing room
b. wash room
c. dressing room

The basis equipment of this department consistsofthe bathing set MKS and field washing room.
Part of the bathing set is also the shower extensionsand a hand shower for washing seriously injured patients. DisinfectingsetV-5 consisting all the necessary instruments for disinfecting and purification.Moreover, the department of special purification is equipped with stretchers,banches and with other material necessary for activities of the department.

The responsibility of the resuscitation departmentis treatment of shock of injured patients and resuscitation and post-operativecare until the patients may be relocated to the hospital ward. There issomebasic equipment in this department. The set N-7 Medical Items hand-operatedresurgent apparatus RK-32-V, resurgent apparatus SPIRETA-V, and equipmentfor oxygen treatment for ten persons. The department is also equipped withsinks, palla, tables for medical instruments, rests and stands for stretchersand other instruments necessary for the function of the department.
The responsibility of the anaerobic departmentis toadmit patients, provide aid and hospitalize those patients who aresuspectedof having an anaerobic infection. This department fulfils thefunction ofthe surgical hospital. The precondition for the functioningof this workingplace is a strict separation of the anaerobic materialfrom the material ofother departments.

The basic equipment of this working place consistsof sets of splints bandage material B-1, bandage material B-3, a set ofsplintsE-2 and a table of rebandaging patients. The equipment is furthersupplementedwith stands for stretches, universal reck and other necessarymaterial.

The principal working place of the surgical fieldhospital is the operation-rebandaging block. The operation-rebandagingblockconsists of surgery room and sterilization room. The responsibilityof theoperation-rebandaging block is to perform all kinds of surgery uponadmittedpatients. The surgery room is designed to provide highly skilledtreatmentfor very seriously injured patients. It is equipped with twooperation tablesthat makes it possible to position particular parts orthe operating tablesinto different positions according to requirementsof the surgery. The operatinglamp provides enough light for the medicalpersonal
even during the most demanding surgery. The basicequipmentof the surgery room consists, besides other, of nois of surgicalinstrumentsand items N-7 and N-8, anesthesia apparatus NHM, aseptic materialin barrels,pedal-operated section 0-69 and apparatus ENDOKAUSTIK CHIROTOMand others.The surgery room is supplied with tables for surgical instruments,hangers,sinks, buckets, stands for stretchers, stetchers and other material.

The re-bandaging room of the operation-rebandagingblock is the working place, especially in the limbs injuries and minorburns.The re-bandaging room usually has four re-bandaging tables and operatinglamps.The set ZARREPO, a part of the re-bandaging room, is an exquisiteequipmentfor repositioning bone fragments.
There is also a set of surgical instruments N-,hand-operatedresurgent apparatus RK-32-V, suction apparatus 0-69 and anumber of otherpieces of hygienic and other equipment.

The sterilization room of the operation-rebandingblock is the working place where the surgical instruments are washed andsterilized,and where the aseptic material for the surgery room and rebandingroom issterilized. The material intended to be sterilized is put intobarrels. Allthe work is done in large sterilization apparatus AUT-41.

The x-ray room is designed to specify surgicaldiagnoses,to locate foreign bodies and to perform x-ray diagnosticallyexaminationsof patients. The x-ray room is divided in two parts. The examinationroomis equipped with a folding x-ray apparatus ARTEK II, which makes itpossibleto perform both sciascapic and sciagraphic examinations in verticalas wellas horizontal positions. The cartridges with exposed films aredeveloped inthe dark room, the other part of the x-ray room. The darkroom is dividedinto a dry
and a wet working place. These include films,foile,cartridges, tanks with developer, fixer, drier and other instrumentsand material.

The pharmacy department consists of a pharmacyanda manufactory of infusion solutions, and of the stock of medical material.The pharmacy ensures and carries out the supply with mass-produced pharmaceuticals,distilled water, medical oxygen, nursing and other medical material. Itpreparesmedicines according the individual prescriptions of physicians.The basicequipment of the pharmacy is a set N-5, a set for the operationof the pharmacy,and a distiller for preparation of distilled water. Themanufactory of infusionsolutions has two parts: - a wash room and themanufactory of solution itself:
The wash room is designed to wash transfusionbottlesand containers used in the pharmacy. The basic equipment of themanufactoryof infusion solution is a set N-6.
The manufactory must ensure maximal sterilityof producedsolutions. It is therefore appropriately equipped with sterilizationapplianceLA-60.

The daily capacity of the manufactory of infusionsolutions is approximately 150 liters.
The stock of medical material stocks all necessarymaterialto supply all the expert departments of the hospital. A part ofthe pharmacydepartment is equipment for preparing transferring oxygenfrom pressure tankscontaining 40 liters into tanks for 10 or 2 litters.

The responsibility of the ambulance is to maintainthe readiness on a working place for minor surgery and rebanding and aworkingplace for ambulatory treatment. The basis equipment of the ambulanceis are-banding table, a set for ambulatory examination V-8, a set of surgicalinstruments V-1 and other necessary material.

The laboratory is divided into a biochemical workingplace and a hematology working place. Its responsibility is to performvariousexamination of samples prepared by other departments, is equippedwith a setL-1, sterilization apparatus LA-60 and other material necessaryfor the operationof a clinical laboratory.

In the surgical field hospital there are usuallythree hospital departments, each with a capacity of 100 beds.

The responsibility of the hospital departmentisto hospitalize and treat injured and sick patients. The basic equipmentofthose departments are gots. Their numbers corresponds to the capacitiesofparticular hospital departments. As a part of the equipment there arealsotables, chairs and hygienic requisites and equipment.

An integral part of a surgical field hospitalisalso the maintenance support. It serves to supply all the departmentswithelectricity, cares for small repairs and maintenance of equipmentof the fieldhospital and last not least, it secures food and preparesday-long food forpatients and for the personal of the hospital. Naturallyit is properly equippedto serve this need.
There are three electricity stations for theproductionof electric energy.
These stations capacity is 1 KVA, 3 KVA and 7.5KVA,possible is 15 KVA.
The power distribution is provided by illuminatingsystems.
For the preparation of food there is a fieldkitchen.
A complete system of eating utensils and a reservoirfor 300 liters water are parts of maintenance support.

The hospital is located in tents or in availablebuildings in various combinations. Moreover, there are 3 large medicaltentsand 17 small medical tents in the delivered set. The compositionof the materialand the way it is packaged makes it possible to implementthe transportationof the surgical field hospital by automobile, by trainand as well as by sea.

We are in the position to provide a video-tape and further information - but we need a signed and sealed LOI with buyer's letterhead to proceed

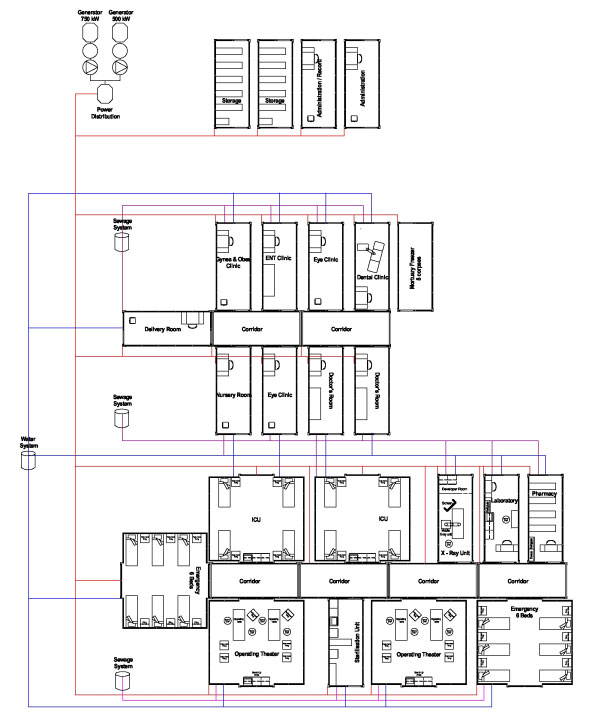

50 Beds Field Hospital



50 Beds Field Hospital

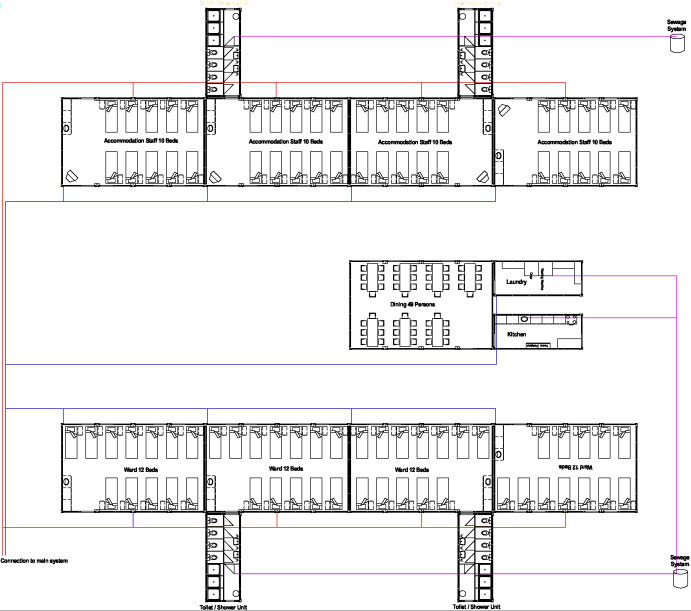

Wards, Staff Acommodation and Dining



Operation Theater in an Expandable Container

Demeco's Mobile Hospital is a concept of having a fully equipped and functional hospital unit's that can be transported from one place to another with ease. With the Operation Theater build into a 3 in 1 expandable container the module can be ready to service with 1 hour from arrival to site.

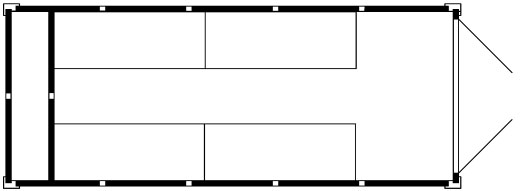

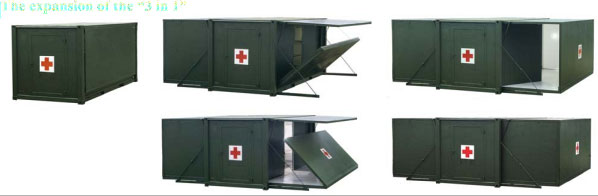

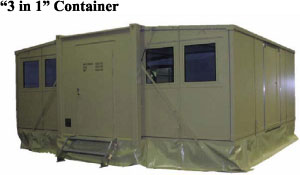

The container is an expandable 3 in 1 container with the below overall measures:

Height, outside:

2,44 m

Width:

2,44 m

Length:

6,06 m

Width unfolded:

6,47 m

Floor area unfolded:

37 m2

Weight: :

3.200 kgs



15 minutes after the base container is secured on the corner casting, the shelter is ready for use






Inside The Container


The container will have the below basic configurations:

  •  All floors equipped with heating cables
  •  Utility unit for gas battery and power unit
  •  Windows and doors - adjusted to customers needs
  •  Electrical - and telecom cables installed in panels
  •  Lights and Electrical connection according to customers specifications

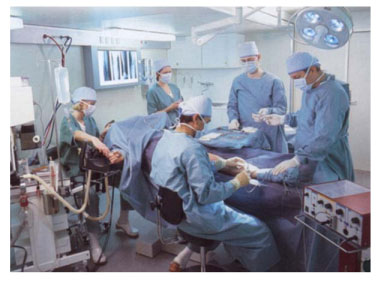

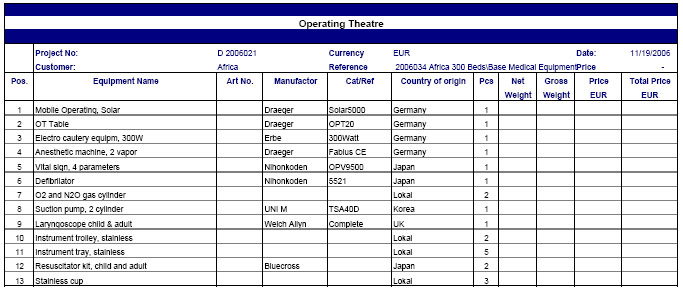

Operation Theater


The Operation Theater will be equipped with:

  •  Mobile Operating light, 5 bulb
  •  TO Table
  •  Electro cautery equipm, 300W
  •  Anesthetic machine, 2 vapor
  •  Vital sign, 4 parameters
  •  Defibrilator
  •  O2 and N2O gas cylinder
  •  Suction pump, 2 cylinder
  •  Laryngoscope child & adult
  •  Instrument trolley, stainless
  •  Instrument tray, stainless
  •  Resuscitator kit, child and adult

Scrub-up Area

  •  Scrub-up Area in stainless steel

The expandable shelter can be equipped with all needed medical equipments for the different functions:

  •  Dental Clinic
  •  Emergency and Triage
  •  Examination Room
  •  Intensive Care
  •  Maternity ward
  •  Operating Theatre
  •  Post Operation
  •  Pre Operation
  •  Sterilization
  •  X-ray

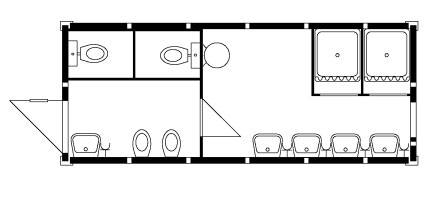

Toilet / Shower Unit

Containing:

  •  2 toilets
  •  2 showers
  •  2 urinates
  •  5 wash basins
  •  water heater

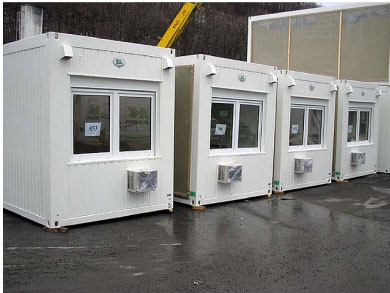

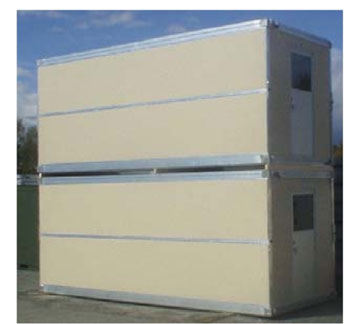

ISO container modules

Modules ready for connection

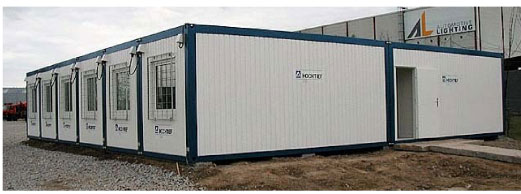

Erected on site

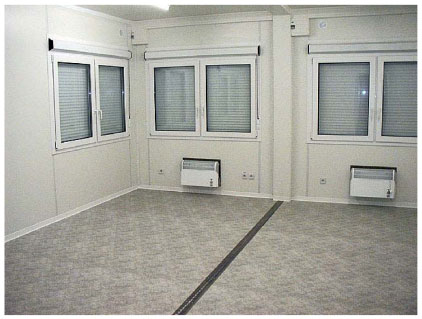

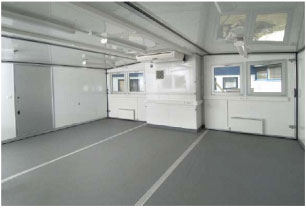

Interior

Corridor

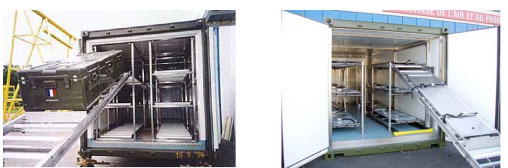

The Containers in use

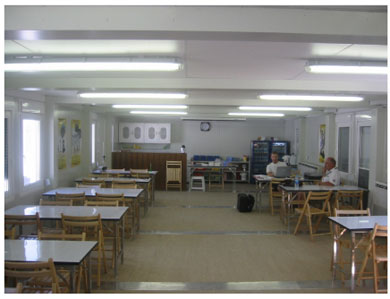

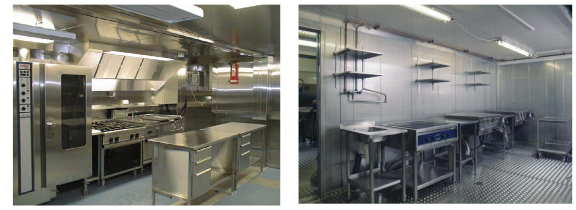

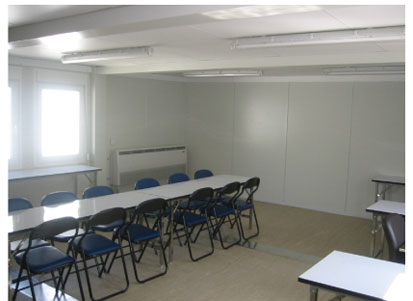

Canteen in 6 containers

Office in 3 containers

Kitchen

The Kitchen Unit is configured inside an ISO 20' CSC steel container.

Power Inlet Panel as well as outlets to facilitate domestic functions and connection for equipment and functions is installed. The Kitchen configuration will be fitted to accommodate production kitchen and catering functions for 100 Persons, by using facilities within the hospital complex.

Integrated Kitchen Equipment:


The unit is fully equipped to produce 5 meals per day for 100 persons as well as a dish washer line to clean cutlery. The following equipment is installed in the kitchen unit;

The kitchen will have the following cooking equipment:

  •  One rice cooker able to cook 10kg of rice each time within an hour.

  •  One wok cooker designed for stir-frying using a standard wok of 24 inches diameter.

  •  One water boiler able to boil 50 liters of water within an hour

  •  Two convention ovens each with a capacity of 4 full size GN Pans of 50mm depth

  •  Two hot plates with cooking area of about 50cm x 50cm each.

The kitchen will come with stainless steel preparation tables.

There will be adequate shelving and storage space to keep and secure condiments and the accessories supply together with the kitchen, such as the water tank, water pump kits, spare burner, tables, wash basin, insulated food containers and tool sets, etc.

The refrigeration system will consist of a refrigerator and a freezer and will be refrigerated by 2 separate refrigeration units. Both refrigerator and freezer will have large door for easy access to the foods stored inside. The operating temperature of the refrigerator and freezer will be 5 degree Celsius (+5C) and minus 18 degree Celsius (-18C) respectively.

Laundry

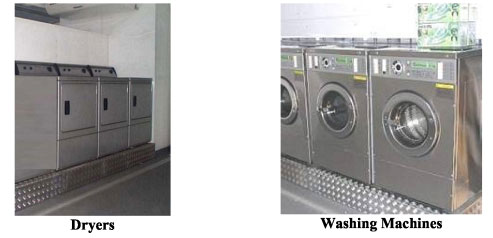

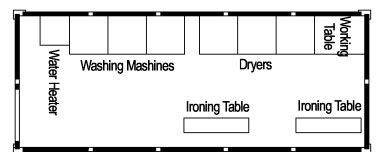

Complete laundry unit with washing machines and dryers in a 20' ISO Container.

Equipment included:

1 unit of 3000W Electrical Resistance Heater
3 units of Industrial Washing Machines Power inlets for 220V AC 50hz/Generator System
3 units of Drying Tumbler 2 units of Internal Lighting Fixtures 2x36W
1 unit of Cloth Roller 1 unit of Fire Detectors
2 units of Flat Iron 1 unit of Fire Extinguishers, 6 kgs
2 units of Ironing tables Leveling Jacks (set of 4) lifting height 300 mm
1 unit of Air Conditioning
20' ISO Container


Post Mortem 20' ISO Container

The 20' refrigerated container with lift and shelves is capable of holding 10 - 12 corpses and is designed for use within the climatic range from -31 C to +55 C.

The 20' refrigerated ISO container has reinforced insulation and temperatures adjustable from +29C to -29C for outside temperatures of +50C and for an intensive use. The refrigerating unit is however able to function by outside temperatures up to +55C.

Dimensions .

20 food Length mm: Width mm: Hight mm:
Outside:

Inside:

Door:

6058 2438 2591
5520 2160 2260
- 2286 2261
Floor area 13,7 m2



Mobile Hospital in Foldable Shelters

Demeco's Mobile Hospital is a concept of having a fully equipped and functional hospital unit's that can be transported from one place to another with ease. With the Operation Theater build into a Foldable shelter container the module can be ready to service with 1 hour from arrival to site.

20' Foldable shelter ready for transport

7 units of Foldable Shelters equals one standard ISO container size

Panels is constructed and insulated as one piece sandwich panel consisting of outer cladding; vertical stringers integrated in the insulation, inner lining and extruded aluminum edge profiles as a four side's outer frame.

The claddings made out of aluminum have thickness of 0.8 mm, are without corrugation and are preprinted.

The Foldable shelter can be lifted and mounted in 30 seconds by 8 men. Lifting eyes are affixed on each corner for lifting by crane.

The Aluminiums door is 900 x 2000 mm

Electrical system & outlets are integrated in ceiling panel.

Heating treasing (80W/m) is installed in floor panel.

The dimension of the Foldable shelter in erected possition (inner/outer): Length: 5856 / 6000 mm Height: 2350 / 2540 mm Width: 2400 mm

Weight: 925 kgs

Floor Area: 14 M2

Units are easily joined to form large open rooms here: Two units combined to one room.


The Shelter can be stacked













Specification and photos are not contractual and are subject to verification upon inspection















TAKE NOTICE!



PLEASE BE ADVISED THAT INFORMATION INCLUDED IS CONFIDENTIAL IN NATURE AND IS BASED ON PRE-EXISTING BUSINESS RELATIONSHIP WITH THE LEGAL OWNER OF PROPERTY DESCRIBED HEREIN (IF APPLICABLE). AS SUCH, UPON RECEIPT OF SAID INFORMATION THE RECEIVER ACKNOWLEDGES THAT ANY UNAUTHORIZED CONTACT WITH SAID LEGAL SELLER WILL BE CHARACTERIZED AS A BREACH OF CONFIDENTIALITY AND SAID AGREEMENT MAY BE ENFORCED UNDER EXISTING LAW OR IN EQUITY.



This paper was prepared by General Equipment Corp.
The paper represents an offer of a partner of General Equipment Corp.
All rights are reserved by and for General Equipment Corp..
All content and ideas of this paper are the property of General Equipment Corp.










Defense items are subject to final destination approval and granting of an

export license issued by exporting country's authorities
