New Ford Explorer Armored B6 Level
new ford explorer armored b6 level
SPECIFICATIONS FOR ARMORED VEHICLE

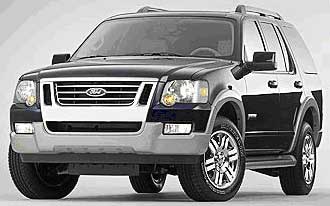

“NEW 2006 FORD EXPLORER B6 LEVEL”
CHASSIS STANDARD FEATURES
· FORD EXPLOTER XLT
· 4.6L SOHC 24V V8
· Front Suspension: Independent short- and long-arms (SLA) architecture with coil-over- shock and stabilizer bar
· Rear Suspension: Independent trailing blade short-/ long Arm (SLA) architecture with coil-over shock and stabilizer bar
· Front and rear brakes: Anti-lock power, 4-wheel disc
· Front and Rear Shocks: HD gas-charged
· Steering: Power rack-and-pinion
· Automatic Transmission
· 292 hp @ 5750 RPM
· Torque (lb-ft)300 @ 3950 RPM
· 6-Speed Automatic Overdrive
· Gas 22.50 US Gallons
· Material: Vinyl
· No of Doors: 5
· Colour: To be specified by customer (No Extra Cost based on availability of manufacturer)
BASE ARMORED EQUIPMENT
· Base vehicle protection to B6 Euronorm Ballistic Standards EN1063 levels
· All armored doors have protection to B6 Euronorm Ballistic Standards EN1063 levels
· Roof protected with ballistic steel (4.2mm thickness)
· All pillar posts, side panels, kick-panels, firewall, and headers, cargo area, rear wheel arches, rear cargo doors will all be armored to B6 Euronorm Ballistic Standards EN1063
· Overlap System around each window will be used throughout the vehicle to ensure complete protection to B6 Euronorm Ballistic Standards EN1063 levels
· Battery protection to B6 Euronorm Ballistic Standards EN1063 levels
· Hutchinson Run-Flats installed in all tires with 1 spare
· Underside of vehicle is protected with steel to protect against under vehicle blasts (Mild Steel 3mm)
· Rear door kept original with armored swing door directly behind original with glass measuring 24” X 18” for full viewing capacity. This is done so original door can be functional
Terms of Payment: 50% deposit and additional 50% payable when vehicle complete prior to shipment
Terms of Delivery: Extra
Specification and photos are not contractual and are subject to verification upon inspection
