E350WAGON





TYPE:

Wagon

DESCRIPTION:

Ford E-350 Wagon 15 Pax. Armored to Level B6

PRICE:

Upon Request

PACKING:

Ex-Works

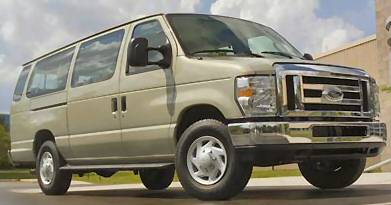

NEW FORD E-350 WAGON 15 PAX ARMORED TO LEVEL B6













Ford E-350 Super Duty 15 Passenger Van – IAC Armor Level 5 (NIJ Level III/EN 1063 Class B6)


Base Armor Specifications:



Level 5 (EN 1063 B6) HANDGUN AND HIGH POWERED RIFLE

·         .357 Magnum (full metal jacket, coned bullet, or soft core), 10.2 g, 425 ms / 158gr. 1450 fps

·         9mm Luger (full metal jacket, round nose or soft core), 8 g., 381 ms / 124gr. 1250 fps,

·         .44 Magnum (Full metal jacket, flat nose, or soft core), 15.6 g, 460 ms / 240gr 1510 fps

·         7.62 X 39mm, 9.3g, 713ms / 145 gr., 2,430 fps

·         7.62 X 39mm, 7.9g, 822 ms / 123 gr., 2,697 fps

·         7.62 x 51mm M80 (full metal jacket -  or soft core), 9.5 g, 830 ms / 147 gr., 2,700 fps

·         5.56 x 45 (full metal jacket, pointed bullet, soft core, SS109), 4 g, 950 m/s, / 62gr. 3116 fps



Base Armoring Specification:


1)   Transparent Armor (Glass areas): Glass will be removed and replaced with curved bullet-resistant transparent armor multi-layer glass with polycarbonate inner layer to prevent spalling upon ballistic impact. The transparent armor will be contoured to retain the appearance of the original glass and will be provided from Isoclima or equivalent source.  The glass will be tinted to match unless otherwise specified. Driver and Co- Driver windows will be operable to approx 6”of travel to allow passing of documents at toll booths and checkpoints, etc.



2)   Body: Doors, pillar posts, side panels, kick-panels, firewall, and headers, cargo area, rear wheel arches, and rear cargo doors will all be armored with Armormax ballistic composite material or ballistic steel in accordance with IAC Level 5 of defeat. Elitus® overlap system around each window will be used throughout the vehicle to ensure complete protection.

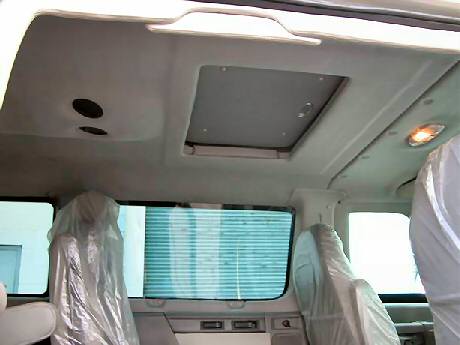

3)   Roof: Armored with Armormax® ballistic composite material in accordance with IAC Level 5 protection at a 45 degree angle. Sunroofs if present on vehicle will necessarily be inoperable.



4)   Floor: Floor areas will be armored with multi-ply rigid ballistic fragmentation material combined with Armormax® PAC300 molded to form fit contours of floorboards and panels. Protection of the floor against the explosion of grenades (single German DM51 or US M-67).  Multi-ply ballistic nylon w/Armormax® PAC100 molded to form fit contours of floorboards and panels.



5)   Vehicle Structured Modifications: Reinforcement of pillar posts and hinge mounts, high pressure heavy duty shocks, and suspension upgrades as required to maintain original appearance and maneuverability and may include: HD sway bars, high tension coil springs and polyurethane bushings.



Additional features included at no extra charge in the standard package:



6)      Battery: Original replaced with an Optima® bullet-resistant battery.

7)      Door Supports: Hardened plastic door risers installed on all doors to support closed doors at Overextension straps will be installed to protect the hinges and support the weight of the armor.

8)       Engine: Electronic control Module (ECM) protection.

9)       Exhaust System: Wire mesh tailpipe protection.

10)    Fuel System: Locking Fuel cap.

11)    Fuel tank: Ballistically protected.

12)    Operable Window: Driver and Co-Driver Side Front Doors (to Approx 6”)

13)    Reinforced Dual Ram Bumpers: (Front and Rear)

14)     Run flat tire system (5)





Specification and photos are not contractual and are subject to verification upon inspection
