DREDGER





TYPE:

Dredger

DESCRIPTION:

Cutter Section Dredger

PRICE:

Upon Request

PACKING:

Ex Works





cutter section dredger



Subject unsold or market withdrawal

From New Manufacture






Cutter suction dredger


Year constructed: 2012
Length over all: 34m
Hull material: Steel

New made in China



700cbm/hr Dismountable CSD



 Class:ZC
 Flag:China
 Delivery place:China
 Delivery time:60 days



 L.o.a:34.00m
 Length of Hull:27.00m
 Width:7.50m
 Depth:2.40m
 Draft:1.60m
 Dredging depth:15.00m
 Suction/discharge diameter:610/550mm
 Discharge distance:1500m



 Dredge pump unit
 Type:450WN
 Water flow:3500m3/h
 Head:55m
 Rotation:680rpm
 Q'ty:1 set
 Manufacturer:Shijiazhuang Pump



 Diesel Engine
 Type:KTA38-P1400
 Power:1400HP
 Rotation:1800rpm
 Q'ty:1 set
 Manufacturer:Cummins



 Hydraulic Engine
 Type:NTA855-P400
 Power:400HP
 Rotation:1500rpm
 Q'ty:1 set
 Cutter
 Type:HY-100
 Diameter:1550mm
 Shaft power:170KW
 Speed:10-30



 Spud
 Diameter:510mm
 Thickness:20mm
 Length:21m
 Weight:5.5t



 Generator set
 Type:22GF
 Diesel engine:Cummins 4B3.9-G2 22KW 1500rpm
 (all dtls given in good faith but w.o.g)

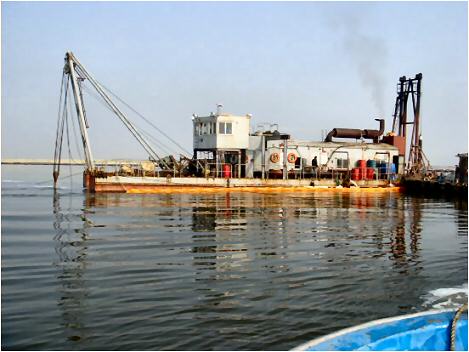

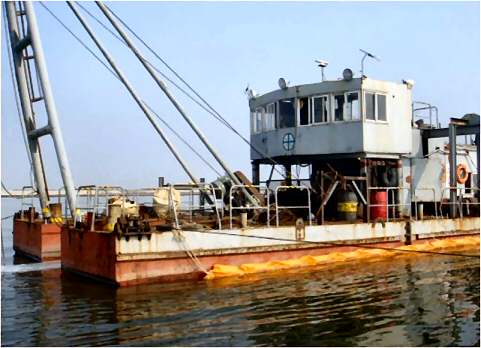

Dredger with sand Discharge and AH Boat





Launched in 2006 and built in Korea. Dimensions are 27.4m x 7.88m.

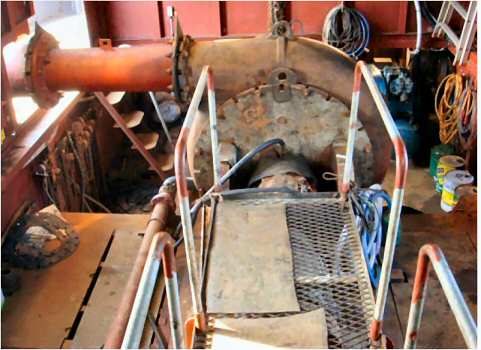

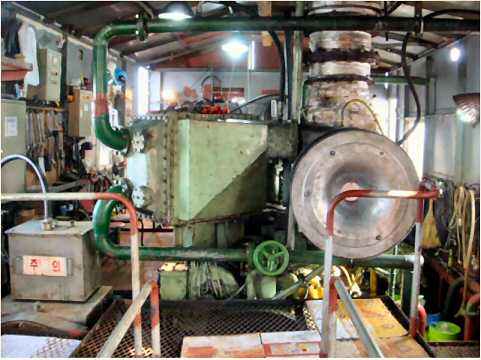

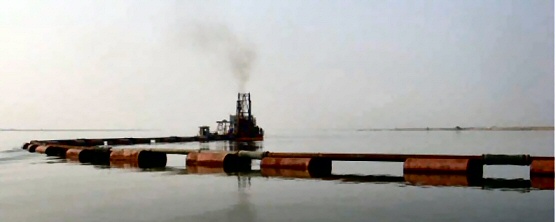

The pump engine, a Hanshin 6MG31EZ drives the pump with a capacity of 400m2 per hour with a discharge pipe of 1.3km.



The vessel is operational and inspection is in Korea by appointment.

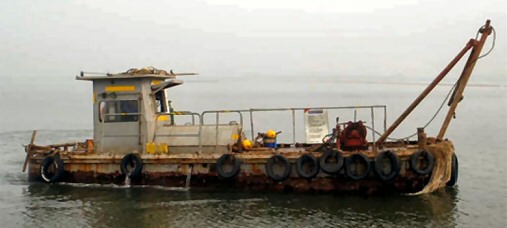

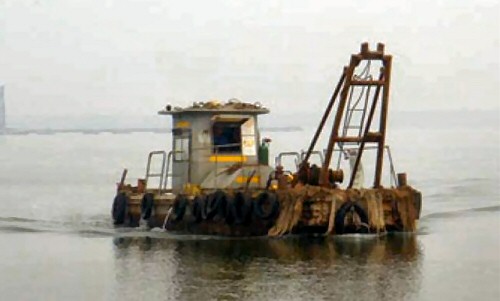

Included in the sale is an Anchor Handling Vessel, 10.18m x 3.02m, 2006 build. Complete package ready to go at a very good price.



Specification and photos are not contractual and are subject to verification upon inspection
