DRAGON 200CC





TYPE:

Motorcycle

DESCRIPTION:

Dragon 200cc Motorcycle

PRICE:

Upon Request

PACKING:

See Below

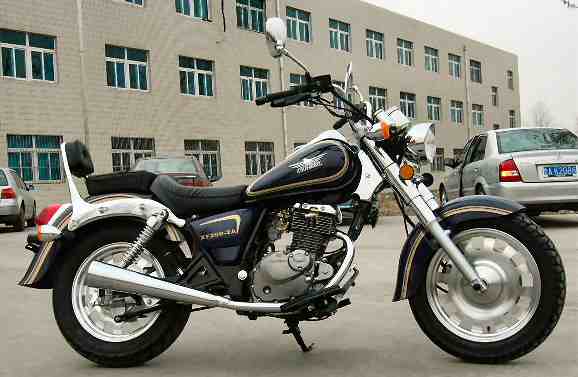

dragon 200cc motorcycle



From New Manufacure




200cc motorcycle


Dragon  XF200-2A.

200cc Motorcycle – Model XF200-2A (EEC II)



SPECIFICATIONS



Engine: Type Suzuki model GS series 199cc, single-cylinder, 4-stroke, air- cooled, Bore x Stroke (mm) 66 x 58.2, Compression Ratio 9.4:1, Ignition CDI
Max net Power: 11.5hp/8000r/min
Drive chain

Transmission: 5-speed gear shift

Starting system: Electric/kick

Chassis:
Suspension/Front: Spring oil damper
Suspension/Rear: Swing-arm spring oil damper
Brakes/Front: Disc type
Brakes/Rear: Drum type
Tires/Front: 110/90-16 6PR 250kpa
Tires/Rear: 130/90-15 6PR 225kpa

Dimensions
Length x Width x Height: 2235 mm x 840 mm x 1130 mm
Wheelbase: 1460mm
Unladen mass: 143KG
Mass of vehicle: 148KG
Maximum net power/mass of vehicle: 0.078(KW/KG)
Fuel Capacity: 13.8L

Color Options: Black, Red, Flash Silver

Packing size: 2000 x 570 x1100 - Qty/40’: 48 units/40GP

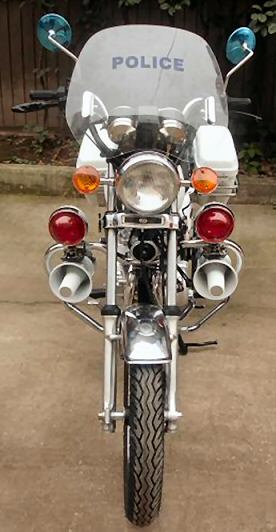

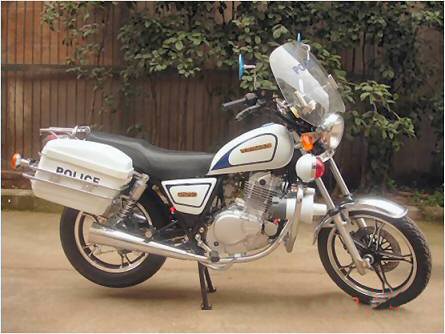

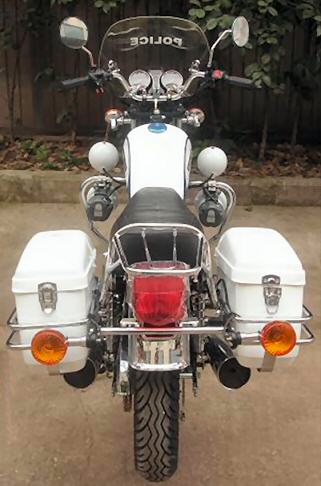

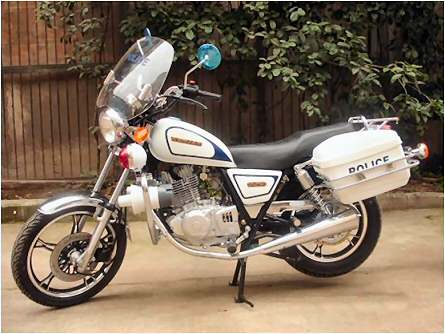

DRAGON 250cc POLICE MOTOR BIKE





Technical specifications



Engine

Frame

engine model

172FMM

dimension(L×W×H)

2100×800×1260

cylinder

single

wheel base(mm)

1360

valve

4 stroke

dry weight(kg)

165

cooling

air cooling

max. load(kg)

150

bore×stroke

72×61.2

max. speed(km/h)

115

displacement

249

clutch type

manual

starter

electrical

brake(Fr./Rr.)

disc/drum

ignition

transistor

transmission

chain

max. power(kw/r/min)

14.7[8500±500]

wheel

alloy

max.torque(N.m/r/min)

16.8[7000±500]

tyre size

3.0-18\4.6-16

Package

CBU/SKD

CKD

packing status

Carton with iron bracket



packing quantity in one 40'HQ

68







Specification and photos are not contractual and are subject to verification upon inspection
