COSSACK APC





TYPE:

APC

DESCRIPTION:

Cossack Series APC

PRICE:

Upon Request

PACKING:

Ex Works





cossack series apc



From New Manufacture



WHEELED MULTI-ROLE ARMORED VEHICLES COSSACK



On base tank T-54, T-55, Type 59, Type 69, Type 79

On base armored vehicles BTS-2, BTS-4, BREM-3, MTU, MTU-20, MTU-55, T-54T, IMR-1, VIU-55, IWT, VT-55A, T-55BZ, Type 652, Type 84, Type 64, Type 653

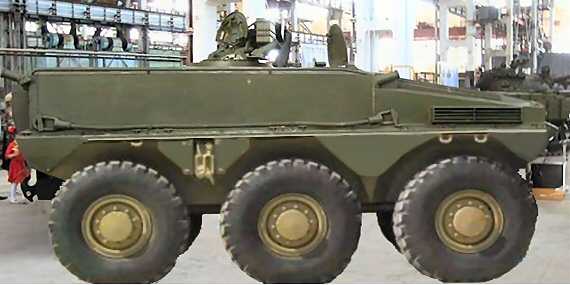

MRAV Cossack on base T-55



Specifications



Weight

17.7 tons

Crew

3 (8)

Length of Body – Gun Fwd

6m

Width

3.27m

Height

2m

height the fighting compartment

1.35m

Base

3.84m

Wheel Base

1.6m / 1.6m

Rut

2.64m

Clearance

0.45m

Maximum Speed

105km/h

Fuel Capacity

680 litre

Operational Range

1000km

Obstacle



Ascent

31⁰

Wall

0.8m

Trench

1.5m

Ford

1.6m

Engine

Model Yamz-65010 or Yamz536-1

Cylinders

L6

Fuel

Diesel

Horsepower

412hp (303kW)

Suspension

Torsion Bar

Wheels

6x6

Tyres

16,00-20 or  1300×530-533






Drive travell about

Concept on base armored vehicles Rooikat was turned into a conventional vehicle electric drive technology demonstrator (CVED) and displayed at AAD2006 in Cape Town in September of that year.  vehicle was fitted with a power supply control system feeding eight wheel-hub mounted M67/0 electric units and a two-phase pneumatic gearbox.

Drive line

Electrical

Alternator (power)

388kW

Wheel drive units (power)

100kW

Max toque

21,000Nm

Special features

Internal / External power supply



220V AC 50Hz / 380V AC 50Hz

Skid steer Function

Pivot neutral steer function

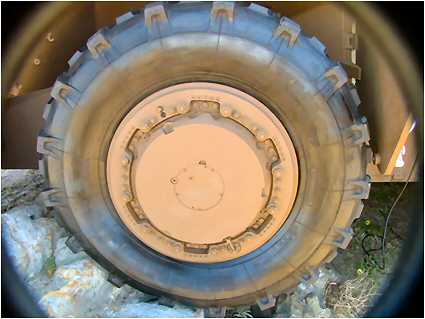

Why in wheel? Because an electric motor that has to provide enough torque to drive a vehicle without gears has a large diameter. Building it inside the vehicle will take allot of space and is negative for your building flexibility.



Shocks en water ingress? We are already driving for 10 years with our truck, bus, military vehicles with the electronics fitted inside of the wheel. Shocks and water have till thus far never been a problem.



Armouring



 Front top

100+80+40+30mm

Hull top

80mm

Rear Hull Middle

40mm

Bottom Hull

20mm

Roof Hull

30mm

Armaments



Main Gun

30x210B Zastava M89                      430 projectiles

or

30x155mm NR-30                             430 projectilies

or

23x152mm 2A14 or 2A4                   500 projectilies

or

23x115mm HR-23/GSh-23                500 projectiles

or

20x110mm Zastava M55                  500 projectiles

or

12.7x108mm DshKM/NSVT/M87         600 rds

or

14.5x114mm KPVT                             500 rds

Coaxial MG

7,62x54R SGMT / PKT / M86          3500rds

Fire control system

DNNS

Stabilisation system



Fire extinguishing system







Specification and photos are not contractual and are subject to verification upon inspection
