CONTAINERIZED GENSET 1710 KVA





TYPE:

Genset

DESCRIPTION:

1710 KW Caterpillar 3516 DITA Generator

PRICE:

Upon Request

PACKING:

As is, Where is







1710 KW Caterpillar 3516 DITA Generator







Item Number:  4257
Manufacturer:  Caterpillar
Fuel Type:  Diesel
Model:  3516 DITA
Serial Number:  25Z03963
KW:  1710
Hz:  50
Voltage:  400
RPM:  1500
Hours:  1500  Since New

More Information:

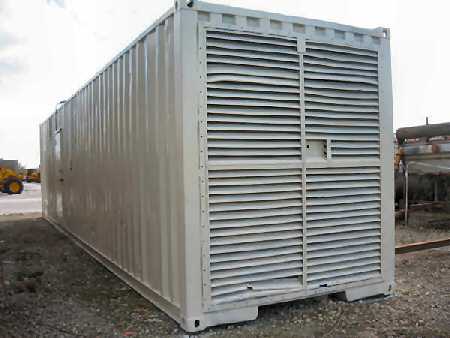

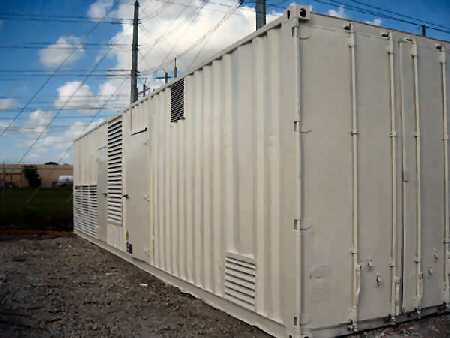

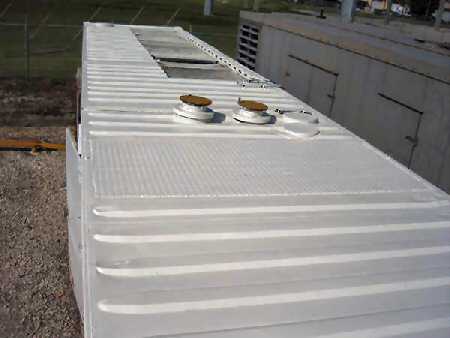

Caterpillar 3516 DITA Industrial Generator Set. 2000kva, 1710kw, 50hz, 400v, 1500rpm, unit has 1500 hours since new. Serial number is 25Z03963. Mounted in a 40' high cube sound attenuated container, 500 gallon fuel tank, mainline breaker, muffler, single bearing generator alignment, 2301A load sharing governor, switchgear conversion, jacket water heater, electric starting motor.





(25Z03963)-Engine

(2ED01504)-Generator





Sales Model: 3516







Built Date: 20Jun1994

Tested Date: 22Jun1994

Shipped Date: 30Jun1994



Test Element

Eng Updates

Test Value



Spec Value

Label

Spec Number



2T5825



2T5825



Arrangement Number



1077350



1077350



Corr Fl Power



2,322



2,340

HP

Speed



1,502



1,500

RPM

COR FL FUEL RATE



116.5



114.2

GAL/HR

CSFC



0.355



0.345

LB/HP-HR

Adj Boost



66.0



63.7

IN HG

Fuel Pressure



61



73

PSI

Oil Pressure



56



64

PSI

TQ COR FUEL RATE



110.3



107.1

GAL/HR

TQ CK CSFC



0.358



0.347

LB/HP-HR

TQ CK ADJ BST



61.4



62.2

IN HG

Torq Ck Speed



1,406



1,400

RPM

TQ CK COR TQ



8,151



8,275

LB/FT

Low Idle Speed



900



900

RPM

Low Idle Oil Pressure



52



61

PSI

High Idle Speed



1,516



1,515

RPM

Response Time







FL ST F SET



0.669



0.669

IN

FT ST F SET



0.669



0.669

IN

Timing Dim







FLS (INTRCPT)









FTS (SLOPE)









Advertised Power



2,293

hp

Advertised Speed



1,500

RPM

Advertised Torque





LB/FT







(25Z03963)-Engine (2ED01504)-Generator









Sales Model: 3516 DITA

Invoice Number: 36GE 123275

Dealer: L050

S.O. Number: BB42700

Build Date: 1994-06-20

Part Numbers

Reference Number

Eng Chg

Quantity

ASM

LESS

Set Type

Description



LA0029

02

1

I



3516 1460 EKW 50 HZ PGS-PRIME



- 1077350

02

1

I



3516 DITA GEN SET ENGINE AR.



- 3L0414



1

I



SINGLE BEARING GEN ALIGN-3500



- 4P0558

00

1

I



CLEANER GP - AIR-B



- 5N2438

05

1

I



FLEXIBLE FUEL LINES



- 6I0134

04

1

I



MOUNTING GP - ACL



- 7C2561

01

1

I



CONNECTION GP



- 7W3759

02

1

I



RAIL GP-ENG.SUPPORT(GEN,RAD &)



- 7W6669

01

1

I



GUARD GP - DAMPER



- 7W8708

00

1

I



INSTALLATION ARRANGEMENT



- 8N9639

04

1

I



GUARD GP-DAMPER



- 9Y3875

00

1

I



GENERATOR 808 FRAME PM



1018923

00

1

I



2301A LOAD SHARING GOVERNOR



PA3068

04

1

I



RADIATOR REMOVAL



5P9130

02

1

I



INLET/OUTLET CONNECTION



3N2451

03

2

I



MECHANICAL JOINT ASSEMBLY



5N2457

03

2

I



FLEXIBLE FITTING



1070165

01

1

I



FUEL PRIMING PUMP RH



8N6435

02

1

I



PRIMARY FUEL FILTER



PA5139

01

1

I

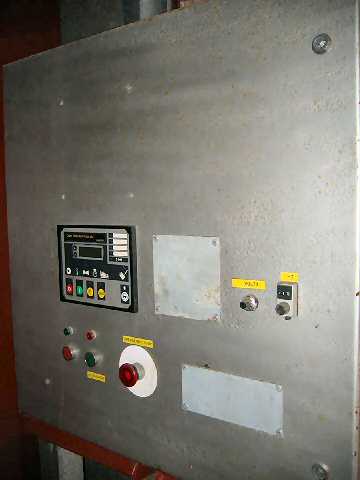

SWITCHGEAR CONVERSION



- 2W8947

02

1

I



WIRING GP (ENGINE)



- 2W9593

04

1

I



METER GP-SERVICE



- 4W4755

02

1

I



SWITCH GP-MAGNETIC (DUAL)



- 7W9265

01

1

I



LINES GP-INST PANEL-OIL FILTER



LA0003

00

1

I

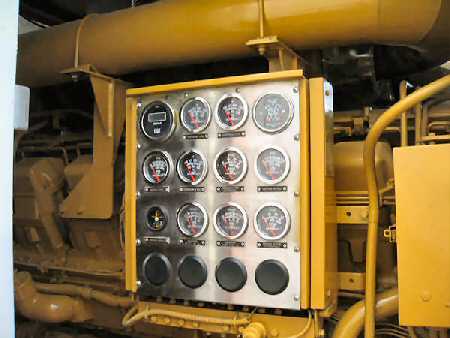

RH 16 HOLE INSTRUMENT PANEL



- 4W6463

04

1

I



LINES GP-INST PANEL(FUEL FLTR)



- 4W6887

04

1

I



PANEL GP-INST PREM. (16 HOLE)



- 7E3159

00

1

I



DIGITAL TACHOMETER



- 1091772

00

1

I



MOUNTING GP - INSTR PANEL (RH)



- 1093862

00

1

I



LINES GP - INSTR AIR CLEAN



9Y5563

00

1

I



FUMES DISPOSAL



LA0110

00

1

I



HEATER AR-JACKET WATER



- 1106208

02

1

I



HEATER GP-JACKET WATER-9KW



- 1106209

00

1

I



MOUNTING GP-JW HEATER



PA5313

00

1

I



LUBRICATING OIL



- 5P2586

03

1

I



OIL - BULK - ONE LITER



PA1772

02

1

I



ELECTRIC STARTING MOTOR LH



- 8N3896

13

1

I



MOTOR GP-ELECT.START(DUAL) 24V



PA1787

03

1

I



24 VOLT BATTERY SET - DRY



- 7L7872

06

1

I



24 VOLT BATTERY SET - DRY



3N7056

00

1

I



BATTERY RACK



LA0113

00

1

I



OIL DRAIN GP



- 2W5616

03

1

I



OIL PAN DRAIN COVER



- 1106206

00

1

I



DRAIN GP



LA0094

00

1

I



POWER TERMINAL STRIP



- 1124727

00

1

I



CONNECTION GP-TERMINAL STRIP



1106203

00

1

I



REGULATOR GP.



7N6961

05

2

I



FLANGE



0P1513



1

I



SPECIAL TEST CHARGE



0P7824



1

I



DOMESTIC PACK - EXPORT-CONTNR.



0P9894



1

I



FORWARDING CHARGES..



0P8707



1

I



LPS 94-1013-01_______QUOTE



0P7877



1

I



FRENCH DECAL



PL3339

03

1

I



LITERATURE GP - FRENCH



- 8N2577

02

1

I



LITERATURE GP - FRENCH



PP2222

00

1

I



2293 BHP 1636 GEN KW WOF 50 HZ



- 2T5825

00

1

I



1710 KW @ 1500 RPM (2293 BHP)



- 1077347

00

1

I



TURBO GP





Specification and photos are not contractual and are subject to verification upon inspection
