COASTAL PATROL VESSEL





TYPE:

Vessel

DESCRIPTION:

Coastal Patrol Vessel

PRICE:

Upon Request

PACKING:

Ex Works





coastal patrol vessel



From New Manufacture

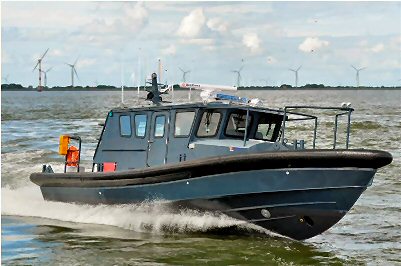

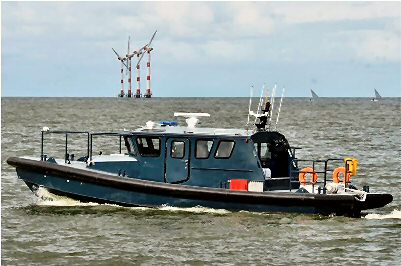

SIX NEW 2013 44' Fast Coastal Patrol Vessels
Vessel Model:  (Two available immediately, others on contract) Currently in service with: Navies ( Nigeria, The Netherlands ), Coast Guards ( Norway ) , Marine Police ( The Netherlands ) and other Civil Enforcement Agencies globally (Harbor Masters/Fisheries agencies etc)
Most economic deal on the market today, top quality and Dutch craftsmanship.


We can supply the boat with armor without problem

In case DP2 is needed then I would like to propose same vessel with full beam cabin and with waterjets.
Speed will bet hen 30 knots
Additional price for DP2 mode 60.000 USD
Passengers 12
Crew 2




L.O.A.: 13.85m
Beam: 3.96m
Length Waterline: 11.00m
Draft: 0.85m
Speed: 40+ Knots
Hull: Deep V ( 23 degree dead rise ) full Planning Mono-hull
Construction Material : Aluminum 5083 ( sea water resistant ) Extra strengthened structure.
Hull construction built under: DNV rules for high speed raft
Full Displacement: Approx. 9.5 Tons
Main Engines: Twin Volvo-Penta D6-400 (800Hp Total Power).
Gear Boxes: ZF
Drive System: Volvo Penta DPH Drive system ( alternatively on request water jets Hamilton 322 series )
Propellers: duo-prop
Fuel Tanks: 1,000 lt ( 2x 500 ltr ) with manhole for cleaning and inspection.
Fresh Water tanks: 100lt
Paint system: RAL 7000-NATO Grey
Fender system : 35cm x 30 cm. HEAVY DUTY - D shape rugged rubber fender system all around the vessel ( supplied by Fendercare.com UK ) custom designed to allow high

speed boarding and interception actions.
Handrails around the boat, allowing great safety, especially on the foredeck.
Tempered and laminated, extra robust window glasses.
Heavy duty (pantograph) window wipers.
Aluminum HD doors.

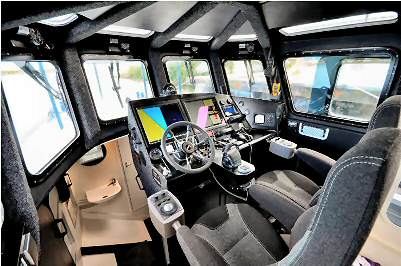

Large cockpit with hydraulic helm and VHF, RADAR and AIS stations.
Marine type Air-condition unit with digital control board.
Marine generator, seawater cooled 6 KvA 50 Hz.
Forward cabin for crew with porthole and settee / V-bed.
Full set of life saving appliances and equipment.
Automatic Firefighting arrangements for engine room
Non-skid external surfaces.
Foldable radar / antenna arch to suite dimensions required for road transport or shipment.
One head with macerator WC, sink and faucet, porthole.
Adjustable pilot and navigator seat make: NorSap with suspension unit.
Large cockpit salon and command station for 6 ( max 10 ) personnel with shock mitigating seating.
Digital can-bus electric switching and fuse system.
Superior building quality for electrical and mechanical systems, equipment and materials, Dutch uncompromised craftsmanship
Extra-large aft-deck (10m) + Platform (3m) areas.
Located in The Netherlands
Full warranty on all systems and work.


**   Demountable stern platform to ensure vessel fitting standard 40 ft. Container for affordable / low-cost worldwide shipment.
***  4 lifting points are intergraded with the vessels structure, an approved and certified 4-legged webbing sling and shackles are provided.
**** Demountable gun mounts 3 pcs. Optional.

Specifications



Vessel type:

Fast Coastal Patrol Vessel

Designer:

TPM

Builder:

TPM

Model:

DMD44

Year constructed:

2013

Berths:

2

No. Of engines:

2

Engine model:

Volvo Penta D6

Engine power:

400 HP

Fuel type:

Diesel

Drive type:

Stern drive

Length over all:

13.85m

Hull material:

Aluminium

Hull type:

Deep-V

Hull colour:

Navy Grey

Deadrise:

23 Degrees

Keel type:

Other

Displacement:

95 metric tons

Dry Weight:

8 metric tons

Fuel capacity:

1000 Litres

Water capacity:

150 Litres

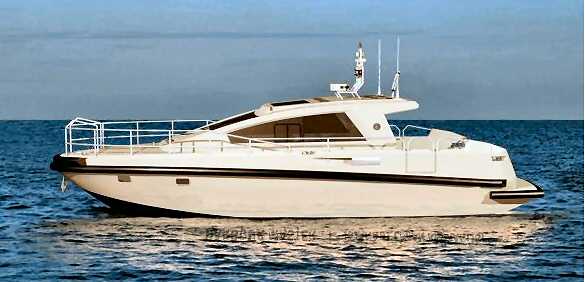

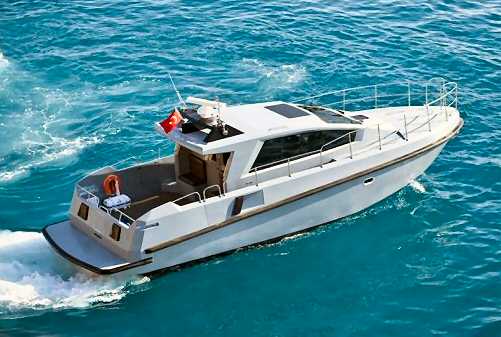

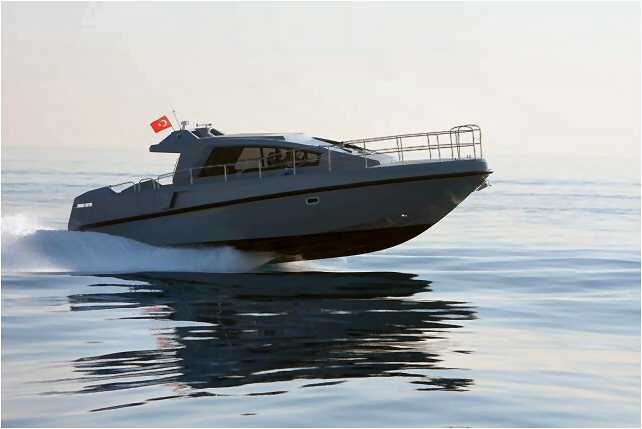

(2) NEW 2012 44' Fast Coastal Patrol Vessels





Vessel Model: 44CPB (Two available immediately others on contract) Currently in service with: NaviesCoast GuardsMarine Police and other Civil Enforcement Agencies globally (Harbour Masters/Fisheries agencies etc)

L.O.A.: 13.35m + (12+12) cm fixed fenders
 Beam: 3.96m + (12+12) cm fixed fenders
 Length Waterline: 10.00m
 Draft: 0.75m
 Speed: 40+ Knots
 Hull: Deep V Planning Mono-hull
 Construction Material : FRP Advanced Composites Extra strengthened partially vacuum applied monolithic GRP structure.
 Full Displacement: App. 13 Tons
 Main Engines: Twin Volvo-Penta D12-650 (1300Hp Total Power).
 Gear Boxes: ZF 325 1A.
 Drive System: ZF Minirex60 Surface Propulsion System (Fully controlled and synchronized by ZF Cruise Command system)
 Propellers: 5 Blade Surface Piercing
 Fuel Tanks: 1500 lt (stainless steel)
 Fresh and Waste Water tanks: 140lt / each (stainless steel) Paint system: JOTUN paint solution (Colour: RAL 7000-NATO Grey) Built under Turkish Lloyd rules.
 Fender: 12cm D shape rugged rubber fender system all around the vessel (stainless steel support inside).
 Stainless steel handrails around the boat allowing great safety especially on the fore deck.
 Tempered and laminated extra robust window glasses.
 Heavy duty (pantograph) window wipers.
 Composite doors.
 Large cockpit with helm and AIS stations.
 One cabin for the crew with porthole.
 Full set of life saving appliances and equipment.
 Fire fighting arrangements.
 Remote controlled windlass winch and anchor system with chain.
 Non-skid external surfaces.
 Composite radar arch.
 One day head with electric macerator WCsink and faucet porthole.
 One galley with electric hob,refrigerator,sink and faucet storage units porthole.
 Adjustable pilot seat with suspension unit.
 Superior quality electrical and mechanical systems equipment and materials.
 Large cockpit salon and command station for 11 personnel seating.
 Extra large aft-deck (12m) + Platform (3m) areas.
 Navigation lights.
 Located in Turkey.



Vessel type: Fast Coastal Patrol Boats
Model: (2) Fast Coastal Patrol Boats
Year constructed: 2012
No. Of engines: 2
Engine model: Volvo Penta D12-650
Engine power: 1300 HP
Fuel type: Diesel
Drive type: Shaft drive
Crusing Speed: 40 Knots
Nominal length: 13.35m
Length over all: 13.35m
Beam: 3.96m
Maximum draft: .75m
Hull material: Glass Fibre
Fuel capacity: 1500 Litres
Water capacity: 140 Litres
Holding tank capacity: 140 Litres







Specification and photos are not contractual and are subject to verification upon inspection
