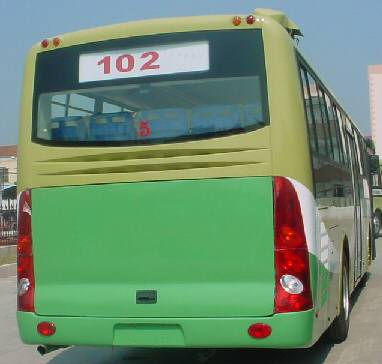

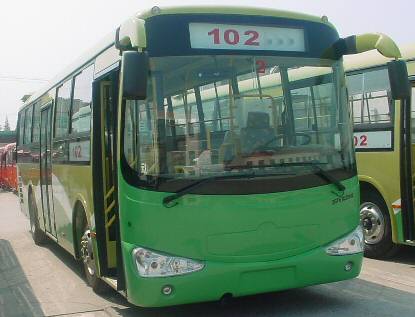

CITY BUS 6102DH





TYPE:

Bus

DESCRIPTION:

City Bus 6102DH

PRICE:

Upon Request

PACKING:

Ex Works





CITY BUS 6102DH








ZGT6102DH


CITY BUS


Dimension (L*W*H)

10388mm*2490mm*3230mm(3140mm)

Color

Optional

Wheel Base

5000 mm

Top Speed

85km/h

Fuel Tank Capacity

150 L

Fuel Consumption Per L/100Km

22 L

Passenger Capacity

74

Seat  Capacity

30-38

Engine

Model

YC6J210-20 (Euro II)

Max. Power

155 kw/2500rpm (210HP)

Max. Torque

710 N.m/1400-1600 rpm

Displacement

6.494L

Chassis

Clutch

Single disk, dry, operated far hydraulically.

Gearbox

Manual, five gear-full synchromesh

Rear Axle

single-reduction, hypoid gear,ratio:5.571

Brake

Pneumatic dual-circuit service brake, energy-accumulate spring parking brake

Steering Gear

Integral power steering system

Tire

10.00-20 (optional 10.00R20)

Suspension

Leaf spring

ABS

Optional

Body Equipment

Audio Video

Radio

Passenger Seat

Plastic seat

Passenger Door

air pressure two doors, inward  swung, mechanical door lock,

Rear View Mirror

Manual rabbit ear shape

Other Equipments

3 unit vents, sun curtain, side window curtain, inner rear view mirror, normal decoration, full glued window

Optional Equipments

Digital clock,

Water heater system

Optional 35000kcal/h

Air conditioner

Optional 30000kcal/h









Specification and photos are not contractual and are subject to verification upon inspection
