CABIN & HOUSING RANGE
Cabin & Housing Range
cabin & housing range

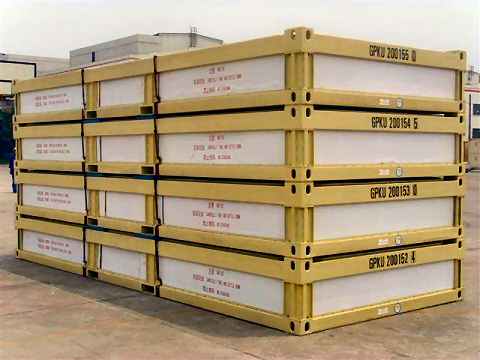

For the flat pack type

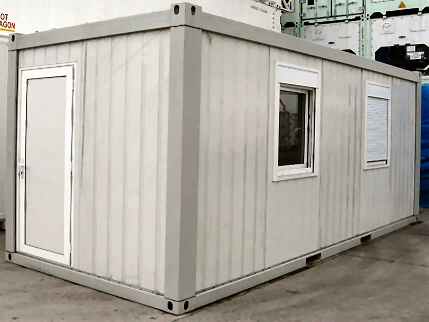

The size of standard modular is 20'x8'x8'6" flat pack type container
Well priced , high quality prefabricated homes. We are proud to offer the following homes which represent excellent value for money with quality fittings

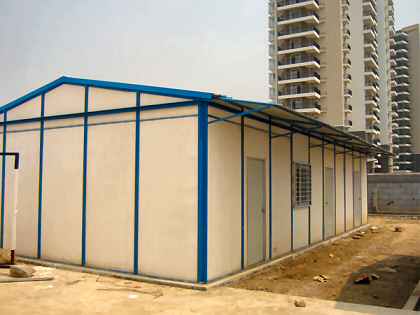

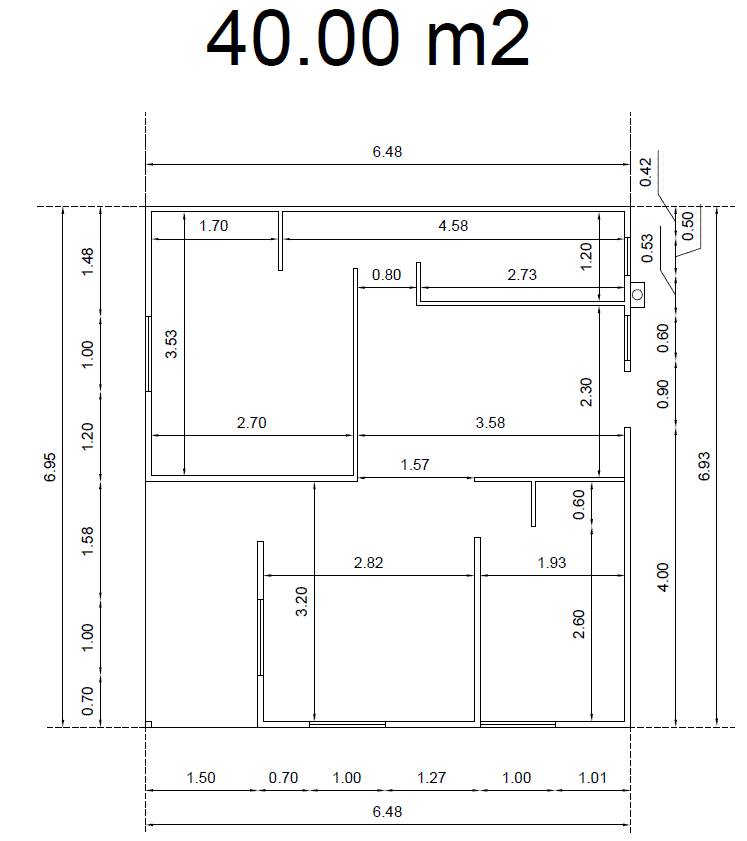

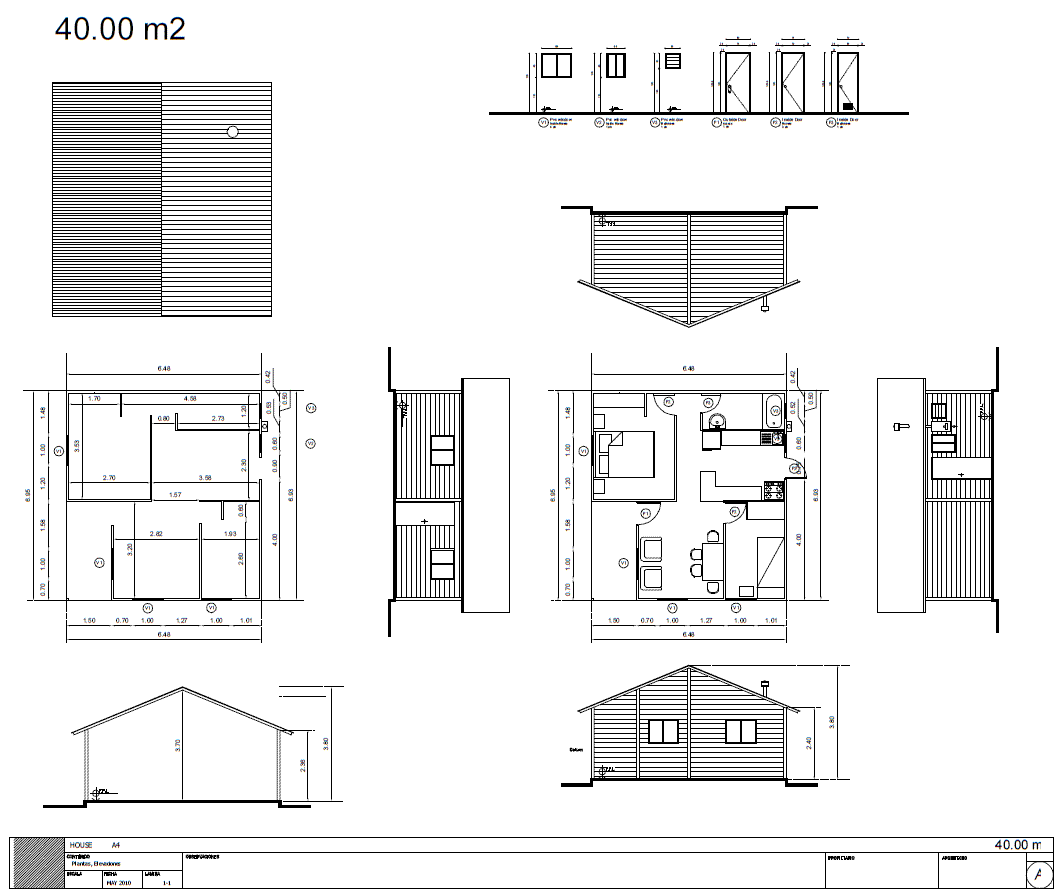

40m² DOUBLE SLOP WITHOUT CHASSIS
Area: 40m2 (double slop ,without chassis) Data:2010-05-25
material list (Standard fittings)

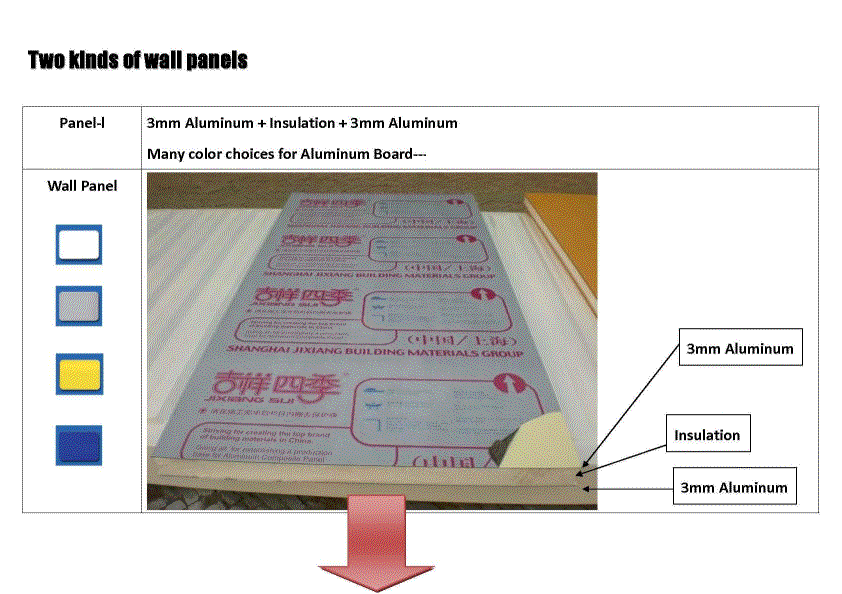

3 Exterior panel m2 75.9 12 910 75mm eps sandwich panelï¼Œthickness of both colored Steel:0.45mm;Density is 18kg/m3
4 Interior panel m2 47.68 12 572 75mm eps sandwich panelï¼Œthickness of both colored Steel:0.45mm;Density is 18kg/m3
5 Window m2 3.93 26.5 104 Plastic-steel window,4 *800mm *1000mm+1 *600mm *800mm+1 *500mm *500m
6 75mm Gutter aluminum pce 47 2.6 122 24pce window frame ,15pce door frame,8pce eaves Frame
7 Hardware fittings 51 100 pec Expansion Anchor bolts,26 pce Normal anchor Bolts,10 pce silica gel
House's price (standard fittings) SET $4,000 ex Ningbo The price only includes the data in this sheet
MOQ .One 40'HQ container can load4 - 4.5 sets

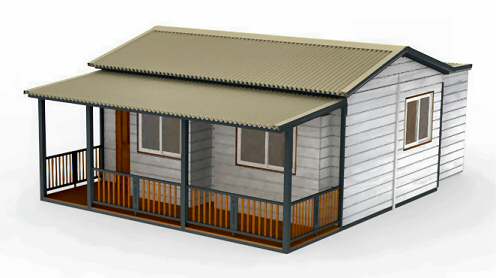

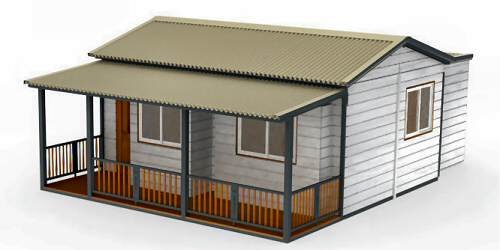

Made by an Australian company located in Semarang Indonesia.
areas where the Koala home differs from the other lower
cost homes we offer
· Sensational looking – Not the
typical sandwich panel aluminum products that are on the
market all over the world now. Koala units have a more
homely feel with all the comforts.
· Shipped via container – This
means fully transportable to anywhere on the planet, by
ship, by barge, by truck, by train or even by air. There
is no need for a wide load trailer to move these units
to remote or distant destinations.
· Quick and Easy Assembly – This
mean cost savings ! An average unit can be fully
functional within hours of delivery to prepared site.
It’s a simple matter of bolting them together, lowering
the roof and sliding out the pods.
· POD Technology (patent
pending)– Means you are shipping more living area for

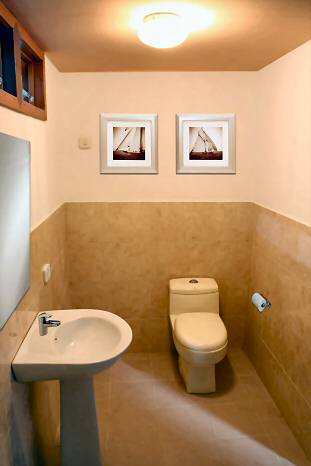

less = more savings again. Bathrooms come fully fitted
out with shower, toilet, sinks and fully tiled. No more
waiting for tradesmen, its already done for you and
finished off to 5 star hotel standards.
· Built to BCA – Our units are
built to the Building Code of Australia, one of the
toughest codes in the world and built to cyclonic area
· Insulated – Energy saving
technology ensure our units are “Green Friendly” energy
saving. Insulated to withstand the Hottest Aussie
Outback and Coldest Canadian climates.
· Fully Furnished on demand –
Once on site you can move in within hours. Kitchen is
included, pull down the blinds and your bed is ready to
· Fire Safe – Exterior cladding
is calsiplank (hardiplank) cement fiber weather board
(with attractive wood grain texture) and the wall cavity
is heavily insulated for further fire safety.
· We are a very flexible company
- As everyone’s requirements are different we are able
to incorporate your needs into a new design or build to
· Units come pre wired and
plumbed to BCA Standards and include all taps, sinks,
lights, power points, tv cable, internet cable, and

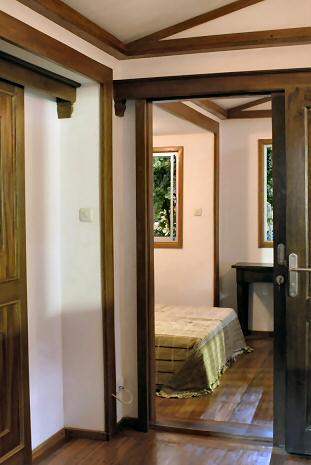

· The Feel of Timber – Solid
timber floors, solid timber window frames, solid timber
decking and balustrade, solid timber posts and interior
timber features such as exposed beams and dado wall
· Value for Money – Built in Indonesia by skilled tradesmen both local and from Australia, means your getting more for your money !

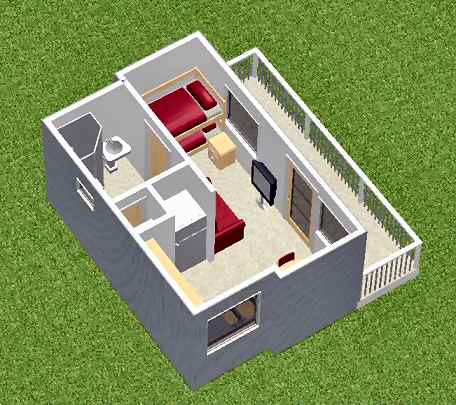

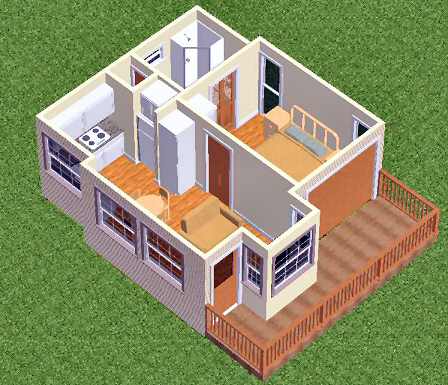

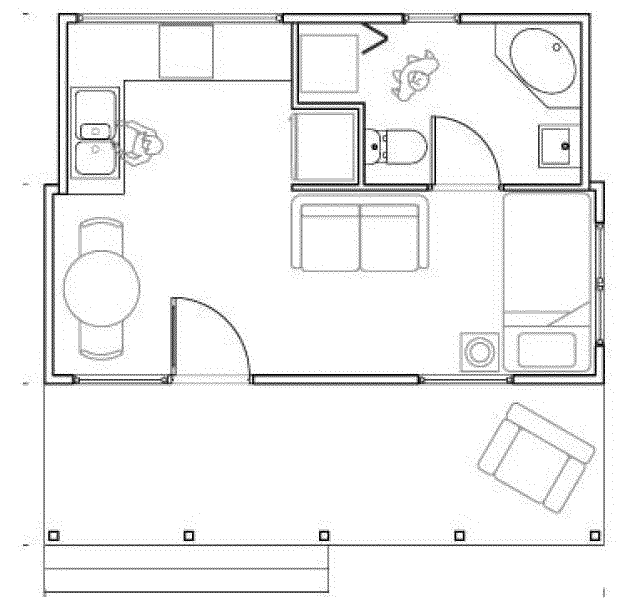

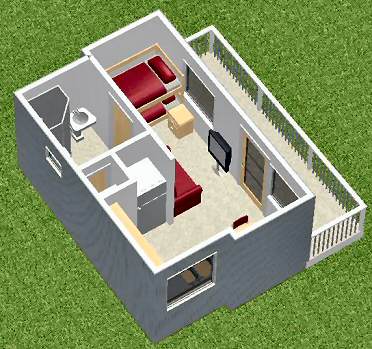

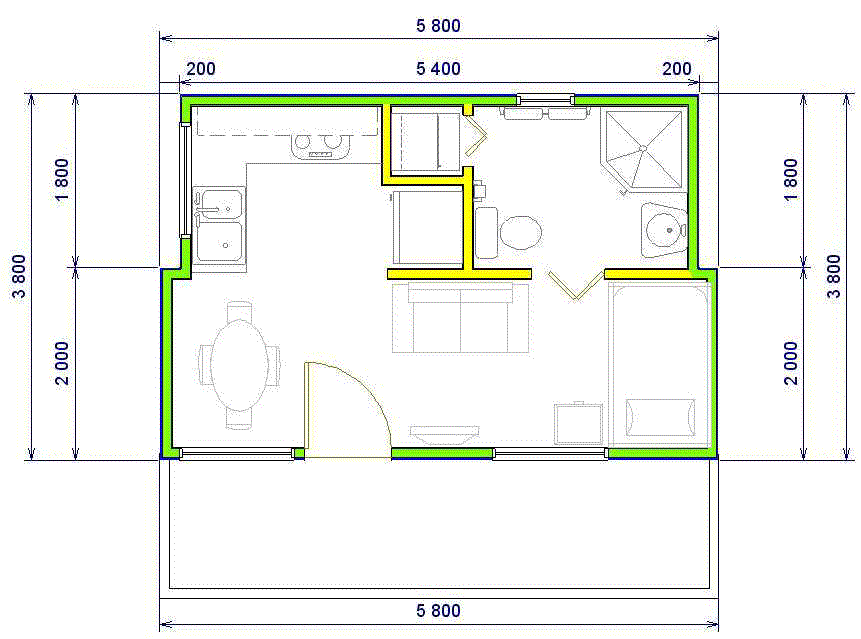

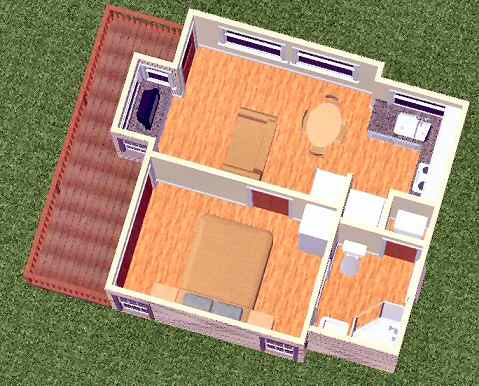

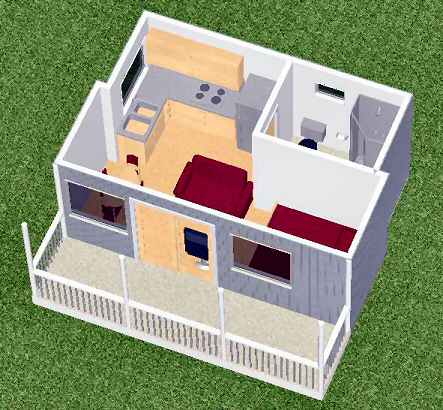

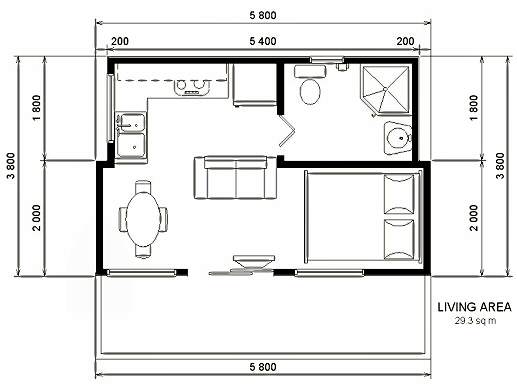

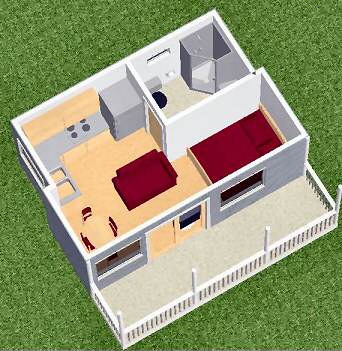

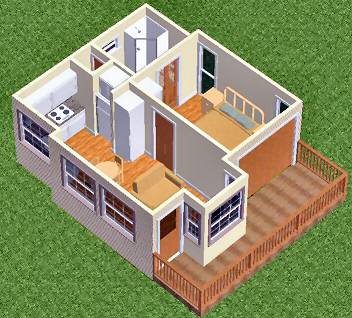

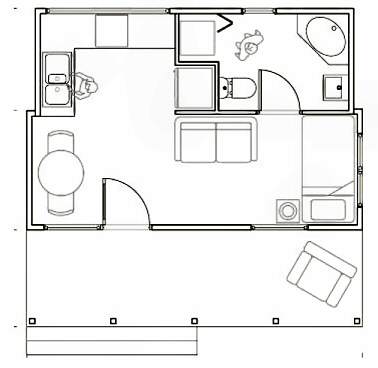

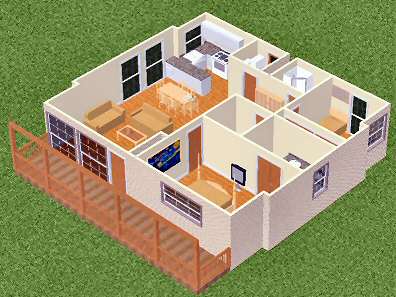

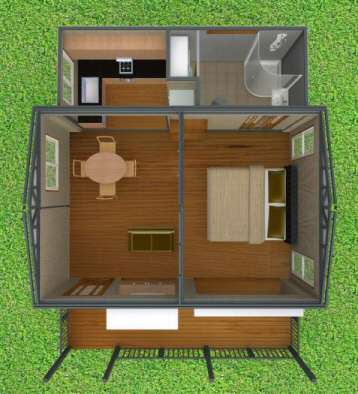

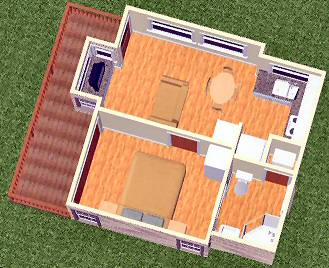

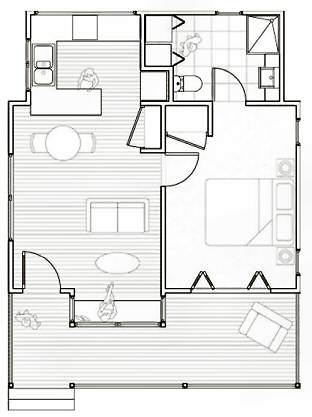

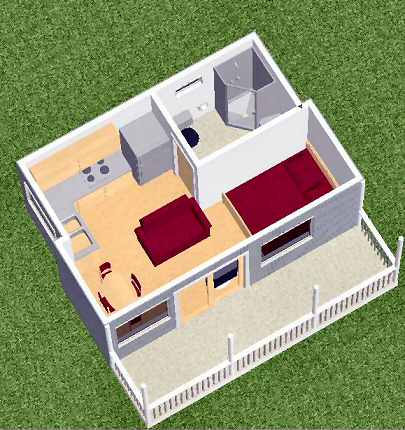

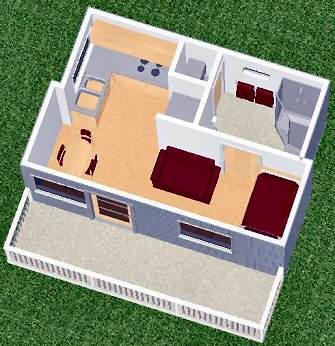

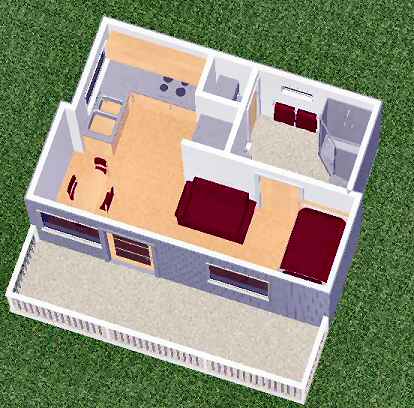

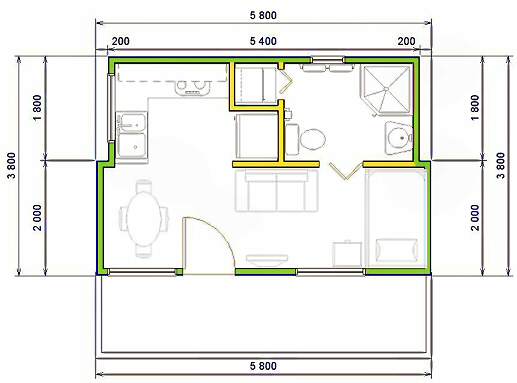

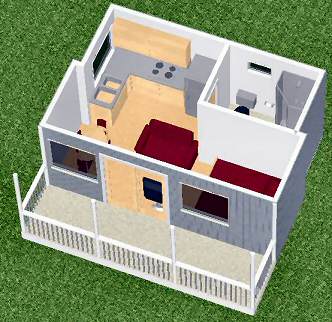

I have attached here 2 units we are producing now.
The assembly procedure is very straight forward. Your footings should be ready by the time the container arrives.

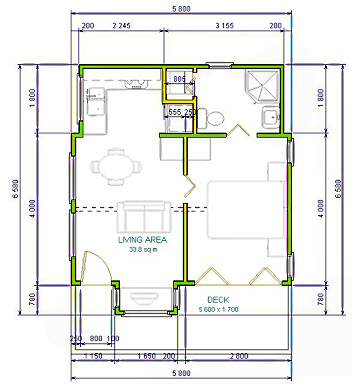

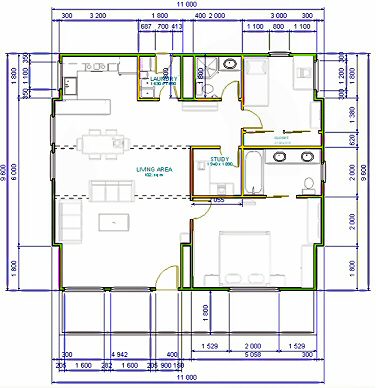

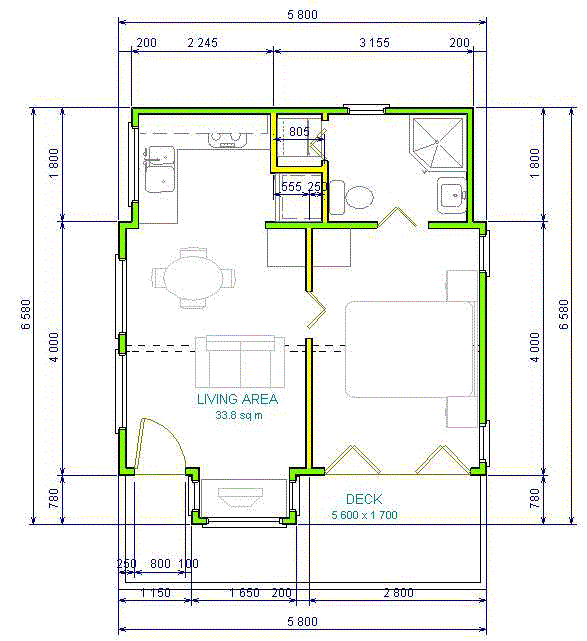

For the larger unit:
1. Remove both sections from the
container and line up using the locating pins. Bolt the
unit together (6 bolts total)
2. Roll out the Bathroom and
bedroom\study PODS and bolt into place.
3. Remove roof from the container -
Using a forklift or small crane, lower the roof down
onto the unit and bolt into place. (Roof is folded and
is unfolded as it is lowered)
4. Raise the verandah roof and
lower the decking. Insert timber posts and bolt in.
5. Roll out the kitchen and
bedroom\living room PODs and secure.
6. Remove timber balustrade and
stairs from inside the cabin and secure to timber posts.
7. Hook up electricity, water in and waste water out.
These units are IDEAL for :
· Miner\Farm accommodation for single or triple occupancy.
· Holiday Park Bungalow\Cabin
· Pool room
· Guest House
· Granny\Pensioner Flat
· Starter home
· Staff quarters
· Teenagers\Parents retreat
· Fishing\Hunting lodge

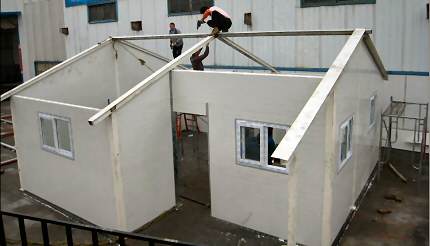

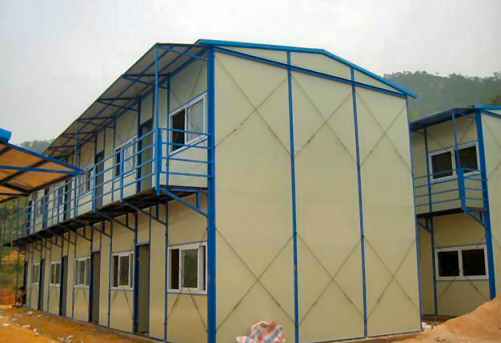

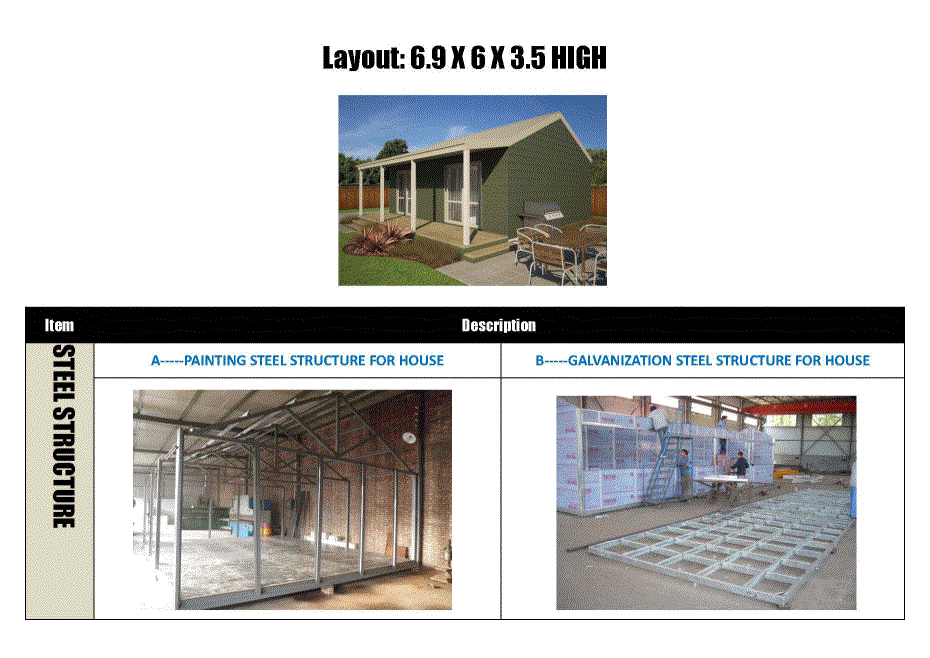

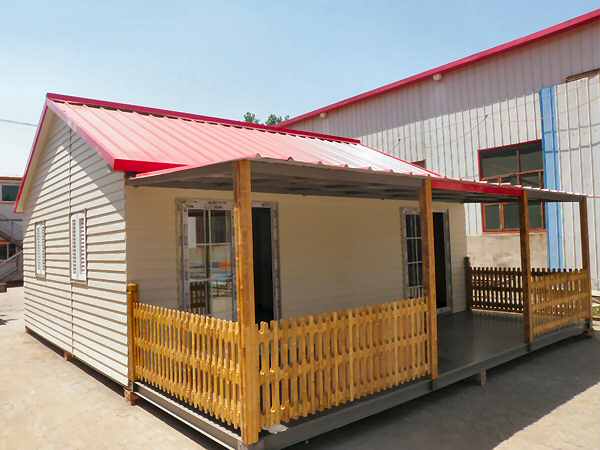

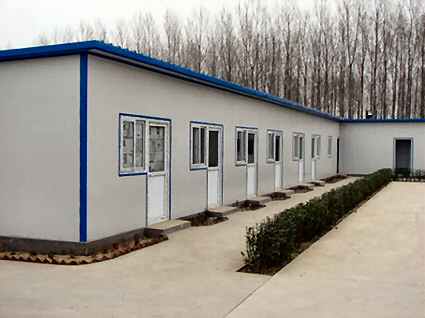

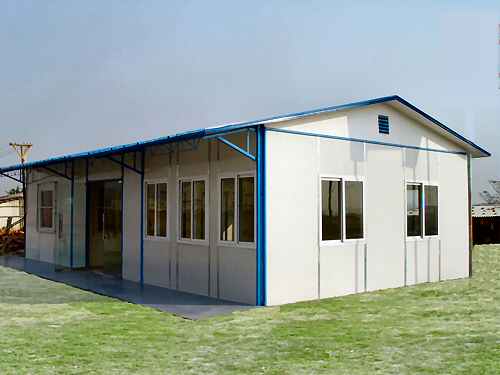

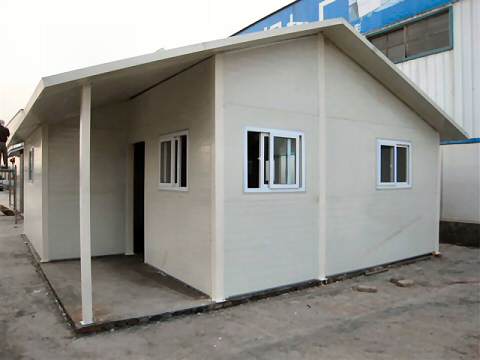

STEEL STRUCTURE PREFAB HOUSE
About our modular house it is made of steel frame with color steel sandwich panel for the wall and roof. the unit price is about FOB Tianjin $120-$170 per sqm.
The wall appearance is normally white-grey, if want to look nice the exterior wall can add cladding board and the price slightly more expensive.
The house size all customized as different customer demand.
If you need the permanent building we also can make the villa structure, the cost will be roughly FOB $320-$395 per sqm.
1.economic and environmental
Mobile family prefab house/steel structure prefab house
Light Steel Villa Specification:
11) Wind load: 110km/h
Let us know your requirements
Specification and photos are not contractual and are subject to verification upon inspection
