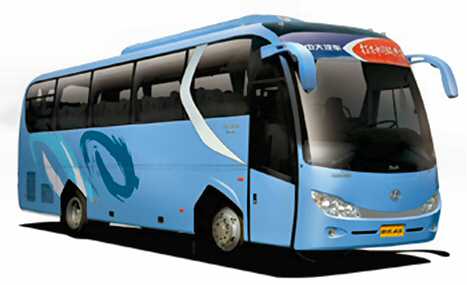

BUS YCK6899HP A5
|
TYPE: |
Bus |
|
DESCRIPTION: |
Bus 30 + 1 + 1 Pax |
|
PRICE: |
Upon Request |
|
PACKING: |
Ex Works |
BUS 30 + 1 + 1 PAX
|
Complete bus parameter |
|
Engine parameter |
|||
|
Overall length（mm） |
8940 |
Model |
YC6J210-20 |
||
|
Overall width（mm） |
2460 |
|
|
||
|
Overall height（mm） |
3455 |
Position |
Rear mounted |
||
|
Complete bus mass (Kg) |
8800 |
Type |
Water cooling, direct injection, pressurized, mid-cooling |
||
|
Max loading mass（Kg） |
12000 |
Max power（Kw/ps） |
155/210 |
||
|
Seats number |
30+1+1 |
Max torque (N.m/rpm） |
710/1400-1600 |
||
|
Top speed (km/h) |
115 |
Exhaust (ml) |
6500 |
||
|
|
|
Fuel type |
Diesel |
||
|
|
|
Exhaust standard |
Euro 2 |
||
|
Main configuration of chassis |
|||||
|
|
|
||||
|
Gearbox |
Five-speed gearbox |
||||
|
Front axle |
“I” shape section |
||||
|
Rear axle |
Integral, singe-stage deceleration |
||||
|
Suspension |
Multiple leaf steel plate spring |
||||
|
Steering |
Integral hydraulic power steering, left hand driven (LHD) |
||||
|
Service brake |
Drum type dual-circuit air brake |
||||
|
Parking brake |
Energy storage spring parking brake |
||||
|
Auxiliary brake |
ABS and automatic adjustable arm |
||||
|
Fuel tank |
220L |
||||
|
Tyre |
9.00R20 radial tyre, stainless steel wheel cap |
||||
|
Main assembly of bus body |
|||||
|
Body structure |
Rectangular steel pipe welding, whole phosphatizing |
||||
|
Interior trimming |
Molding softened interior trimming |
||||
|
Door/door pump |
Front pneumatic out-swing passenger door, middle door |
||||
|
Window & windshield |
Enclosed side windows with curtain, panoramic laminated front windshield |
||||
|
Safety scuttle |
One safety scuttle with electric ventilator fan |
||||
|
Luggage space |
Overturned compartment door, luxury lock |
||||
|
Luggage rack |
Luxury luggage rack, new style reading lamps |
||||
|
A/C system |
Non-independent A/C (22000kal/h) |
||||
|
Rearview system |
Luxury manual reversing mirror |
||||
|
Audio-video system |
DVD + 15″LCD displayer, microphone, radio |
||||
|
Seats |
High backrest adjustable seats with meal tray, guard rail |
||||
|
Lamp |
Front and rear combined lamps |
|
Paint |
Imported paint |
|
Other service facilities |
Electronic clock, thermometer, semi-breadth driver’s curtain, floor leather, running recorder, WC |
Specification and photos are not contractual and are subject to verification upon inspection
