BUFFALK II





TYPE:

APC

DESCRIPTION:

Buffalk II Armored Personnel Carrier

PRICE:

Upon Request

PACKING:

Ex-Works





BUFFALK II

















Technical Specifications of Buffalk II APC

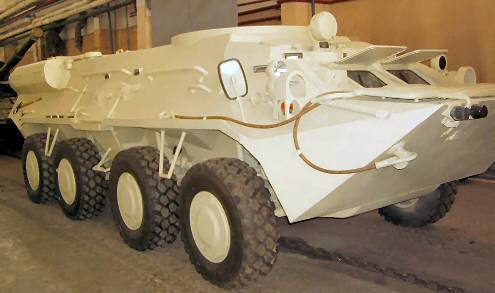

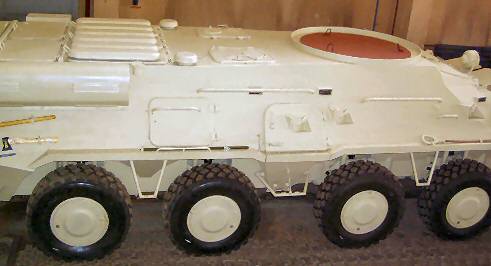

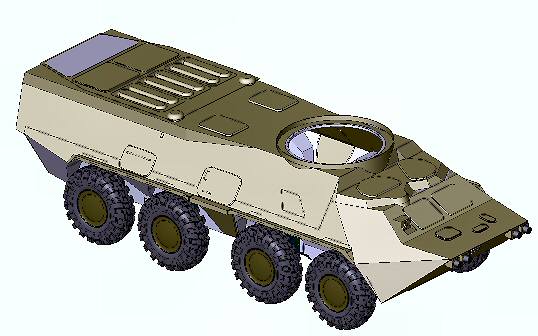

The “Buffalk II” APC is a multi-purpose wheeled (8x8) amphibious Armoured Personnel Carrier,

based on the BTR-80 and extensively modified to provide enhanced capabilities.



1.         Crew
             Driver: 1 Person
             Commander: 1 Person
             Troops: 6 Persons

2.         Weight (without turret): approx. 13,287  Kg

3.         Dimensions
             Length: 7.65 m
             Width: 2.90 m
             Base: 4.40 m
             Rut: 2.41 m
             Clearance:     0.475 m

4.         Power pack

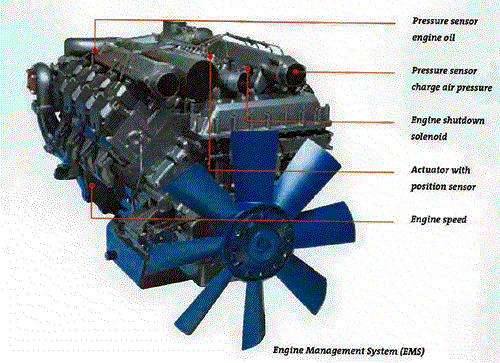

            4.1       Engine
                         Type: V-shaped, four-stroke six-cylinder fluid
                          Model Deutz BF6M1015
                          Quantity of cylinders 6
                          Diameter and piston stroke: 132x145 mm
                          Max. power at crankshaft speed 2,100 min-1  326 HP (240 KW)
                          Max. torsion torque at crankshaft speed 1,300 min-1: 1,420 N.m.
                          Specific fuel consumption at optimal functional point:   205 g/KW (150 g/HP.hr.)

             Dimensions:
             Length:  985 mm
             Width: 925 mm
             Height: 967 mm
             Weight: 830 Kg









4.2       Starting-up system
             Type: battery-supplied electric starter

4.3       Fuel supply system
             Quantity of fuel tanks: 3
             Capacity: 300 L

4.4        Oil system
              Type: forced, circulation lubrication with a dry crank case

4.5       Cooling system
             Type: liquid, enclosed, with forced liquid
             Heat radiator: circulation, 2 pcs., tube-plate type, 6 in line
             Caps for air in-take/off-take: with electro-pneumatic drive remotely controlled from driver’s seat

4.6       Air supply system
             Air filter type: dry type, two-stage filter (the first stage is an inertial screen with dust suction, and the second is a plug-in filter element) is equipped with a load indicator

5.         Shafting

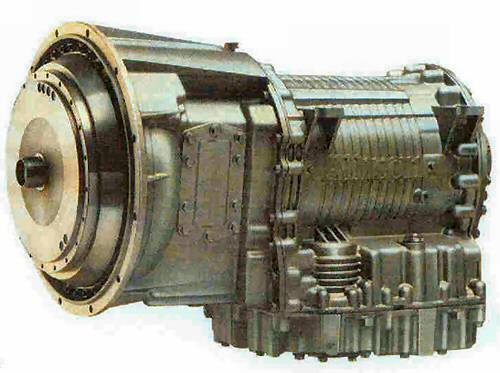

             5.1       Automatic transmission
                         Type: Hydro-mechanical
                         Model: Allison MD 3066 Automatic Gearbox
                         Control drives:  electromechanical, hydraulic
                         Input torque: 1,471 N.m.

              5.1.1  Torque converter
                         Type: single-stage, three-piece, multiphase
                         Model: TC-421
                         Transformation ratio: 1.78

              5.1.2  Gear box
                         Type: Planetary, with single-helical constant mesh, it has 6 front gears and 1 reverse gear
                         Transmission ratios: 1st  gear:                3.49
  2nd gear:                1.86
  3rd gear:                 1.41
  4th gear:                 1.00
  5th gear:                 0.75
  6th gear:                 0.65
  Reverse gear:       5.03

              5.2            Distribution box
                          Type: mechanical, center-axial, two-stage with differential distribution of torsion torque and differential hold
                          Transmission values: Up-shift gears:            0.76
  Down-shift gears:       1.39











                 5.3     Drive lines
                           Shafts: tube-type
                           Cardan joints: open-type, fixed, on needle-bearings

                 5.4           Driving axle
                            Quantity: 4
                            Main gears of driving axles: conical with spiral tooth and transmission ratio 1.846
                            Differential gears of driving axle: cam-type with increased friction

                 5.5           Wheel reducers
                            Type: single-reduction units with single-helical cylinder gears
                            Quantity: 8

                 6.       Steering control
                           Steering on land: by turning the controlled wheels
                           Steering afloat: by turning rudders and valve gate

                 7.       Hydraulic system
                           Working pressure: 7.8±0.3 MPa (80±3 kgf/cm2)

                 8.       Brake system
                           Working brake system: Brake mechanism: block brakes of drum type, close-endedn on each of the wheels
                           Brace linkage: hydraulic with air booster, dual-braking with parallel arrangement of the main cylinders
                           Parking brake system: Brake mechanism: 2 pcs., drum type, installed on the front idler  and the rear secondary shafts of distribution box
                           Brake linkage: mechanical

                   9.     Running gear
                           Wheels: Michelin, 335/80 R20 XZL, tubeless
                           Quantity: 8
                           Bead-lock: Hutchinson - 20x11
                           Rim: Grasdorf, EO7-4118

                           Suspension
                           Type:  independent, on the lateral arms
                           Springing medium: torsion shaft
                           Quantity of torsion bars: 8 pcs. (one bar for each wheel)
                           Quantity of arms: 2 pcs. (lower and upper) on each wheel
                           Bumpers: 2 pcs., hydraulic, telescopic of double action, installed as follows:
two by two for the first and fourth wheels
and by one for the second and third wheels

                   10.   Pneumatic equipment
                           Compressor:
                           Type: piston, single-cylinder, single-stage
                           Cylinder capacity 300 cm3
                           Pressure regulator: piston type, with a relief  Opening and closing pressure
                           for regulator relief valve (damper): Opened state:  not more than 0.8 MPa
Closed state:   not more than 0.65 MPa

                    11.  Water jet propeller
                            Type: single-stage, single-shaft with a four-blade screw propeller
                             Power take-off for water jet propeller:   from the main drive shaft of distribution box
                             Water jet propeller actuator: hydraulically controlled from the driver’s seat
                             Water jet propeller drive: drive line from the distribution box via the idle reducer, intermediate bearer connected to water jet propeller
                             Gate valve drive for water jet propeller: hydraulically controlled from the driver’s seat


                    12.    Water pumping-off system


                              12.1     Dewatering system
                                           Type: ejection-type (it functions at the working water-jet propeller)
                                           Valve drive: hydraulic
                                           Drive control: from the driver’s seat
                                           Total capacity: not less than 800 L/min.

                               12.2    Dewatering electrical pump
                                           Type: centrifugal
                                           Capacity not less than 180 L/min.

                      13.    Winch
                                Location: in the front hull part
                                Cable length: 50 m
                                Ultimate hook towing force at single; line cable winding round the drum:
Without block:  43120 up to 58800 N
With block:       86240 up to 117600 N
                                Winch drive: mechanical (drive line and chain drive from distribution gear)

                      14.    Electrical Equipment
                               Generator power 2x3.9 KW
                               Voltage: 28 V
                               Nominal current: 2x140 Amp

                      15.   Observation devices
                               For Driver: Four TNPO-115 (for day use)
One TVNE-4B (for night use)
                               For Commander: Three TNPO-115 (for day use)
One TKN-3 (combined for day & night use)
                               For troops: Four TNPO-115 (for day use)
Two TNP-165A (for day use)

                      16.   Fuel Consumption
                               Highway: 45 L/100 Km
                               Off-road: 60 –120 L/100 Km

                       17.   Maximum Speed
                               Highway: 95-100 Km/h
                               In water: 8 Km/h

                       18.  Maximum Range
                               Highway: 680 Km
                               Off-road: 250 - 500 Km

                       19.  Climatic Temperature Range: -15°C to  +55°C

                       20.   Off-road Characteristics
                                Max gradient: 30°
                                Max lean angle: 25°
                                Max trench: 2 m
                                Wall height: 0.5 m

                        21.  Turning radius
                               Outer front wheel: 13.2 m
                               Afloat: 10 m

                        22.  Reliability parameters
                               Overhaul service life: not less than 60,000 Km

                        23.  Fire Fighting System
                                Type:  automatic, double action
                                Quantity of thermal sensors: 4
                                Quantity of coolant devices: 2
                                Hand-operated extinguisher: Type:            carbon-dioxide (CO2)
  Model:          OU-2

                        24.  Additional Features
                                24.1  Air conditioner
                                          Model: Sankyo S9103
                                          Power consumption: 257 W
                                          DC voltage: 24 V
                                          Cooling performance: 13 KW
                                          Airflow volume at front: 200 m3/h
                                          Airflow volume at rear: 660 m3/h
                                          Gas type: R-12
                                          Mass of compressor: 5 Kg

                         24.2  Heating system
                                   Type air-heater-type with the use of cooling liquid heat for  the engine







Spare Parts, Tools & Accessories Included with each   Buffalk II APC





A.     Accessories mounted - External



Part No.

Description

Qty

63A-4505010-A2

Winch pulley

1

40P-3905014

Crowbar used for maintenance of APC

1

40-3905015-A

Shovel general purpose

1

40-3905011

Axe general purpose

1

4905-3907010

Tow rope

2

4833226500

Tow handled saw

1

81Yu-8201012-B

Rear view mirror

2

5903-3919012

Tool Box  Containing:

1

4905-2905410

Set of shock absorber bushings

1

4905-4225075

Air supply hose

2

4905-3506025

Brake system hose

4

IP-3901129

Wrench 24 mm for wheels nuts

1

4905-3901064

Wrench head 70 mm for brake fastening nuts

1

4905-3901198

Wrench for fastening of countershaft and fuel tanks cap

1

4905-3901290

Wrench for tightening of suspension junction shafts

1

175-3901000

Brace wrench 12 mm

1

4905-3901150

Wrench 17x32 mm for fastening of flange and cap of wheel reducers drive gear bearings

1

IP-3901128

Wrench 19 mm for brackets of suspension lower levers



71-3901330

Sledge hammer (3 kg) general purpose

1

IP-3901284-E

Fitting spatula and hydraulic jack tap wrench

1

IP-3901283

Fitting spatula

1

4905-3101330

Set of bolts for wheel assembling

1

060Yu-148814

Jack pad

1

4905-3907025

Tow link-up

1

5903-3923010

Suspension tripping rest

4

40P-3901472

Hydraulic brakes priming hose

1

49-4201135

Air takeoff hose

1

49-3918030

Torsion bar remover

1

434.90.002sb

Socket wrench 27x41 mm for oil  Tank drain plug

1

5903-3901130 or

BTR-A.AGT.001

sb-90

Wrench for engine oil drain plug

1

GOST 2839-80

APC Service wrenches including :





Part No.

Description

Qty

7811-0041

S1 Ts15Cr

Wrench 27x30 mm



1

7811-0043

S1 Ts15Cr

Wrench 32x36 mm



1

781-0044

S1 Ts15Cr

Wrench 36x41 mm



1

BTR-DA.91.020sb

Box containing :

1

4905-3909200

Metal bucket

1

49-3901190

Funnel



1



B.        Accessories - Internal



Part No.

Description

Qty

411-00-00-00

Military medical kit “AV”

1

BP201-00-00

Drinking water container

3

40-3914175

Canvas 1x1.5 m2

1

D3-3913010

Hydraulic jack 5t power

1

49-9113012

Holster for a signaling pistol

1

48 5431 1011

Fire extinguisher OU-2 to suppress local fire

1

320-1

Oil gun

1

4905-3911010

Grease gun

1



49-3913180

Support for the jack

1



49-3914173

Bag containing :

1



74 4891 0012

Life vests

3



49-9113030

Bag for signal flares

2



Sp224-5205600

Wind wiper

2



40-3906022

Steel wire ¯ 1.6 mm

1



40-3906024

Serviette

20



4905-3901720-01

Box containing :

1

4905-3901270-01

Tyre repair kit

1

BSh.803.108

 Box for unit TVNE-4B containing :

1

5903-3824010

Driver’s unit TVNE-4B (standard)

1



SPTA kit for unit TVNE-4B

1

40P-7901247

Stowing bag of unit MT-2, each one containing :

4

5903-3906246

Vehicle SPTA kit containing :

1

5D4.084/021-02

Frame of the search light OU-3GA-2M

1

8D4.924.002

Frame fixing screw

3

41-3825069

Bulb PZhZ27-110 for search light

 OU-3GA-2M

4

11-46-00

Lubricator

1

41-4502035-01

Safety pin for the winch shaft

10

5903-3824426

Glass face of unit TNPO-115

1



Part No.

Description

Qty

GOST 503-81

Tape08kp-PN-3-0.5X9  2m long for securing of hose unions

9  in a roll

G-41-3906021

Tape PVKh.20x0.20, 1 class

GOST 16214-70

1 roll

5903-3901008

Large tool bag containing :

1

IP-3901313

Wrench 22mm for brake drum nuts

1

49B-3901168

Spanner for wheel suspension nuts

1

39 2655 9159

Wrench 24x30 mm for nuts of steering arm pin and hull bottom plugs

1

4905-3901094

Key 10 mm for hull access holes

1

39 2654 5095

Key 12 mm for oil drain plugs

1

IP-3901251

Screw driver for the plug of longitudinal steering arm

1

IP-3901107

Service tools for APC

Socket wrench 10x12 mm

1

GOST 427-75

Metal ruler (L=500 mm)

1

39 2621 1035 or

GOST 2310-77

Hammer 7850-0105 Chem. Phos. Green or gray-blue  NTs-132 enamel

1

M88-0

Large screw driver

1

IP-3901196

Box wrench 14 mm

1

IP-3901205

Box wrench 17x19 mm

1

39 2651 5055

Monkey wrench 36 mm

1

432.90.012sb

Socket wrench 8x10

1

 432.90.013sb

Socket wrench 14x19

1

478B.90.030sb

Socket wrench 17x22

1

478B.90.004

Socket wrench bar

1

5903-3901009

Small tool box  containing :

1

290813P29

Remover bolt M10x45 for the brake drum

3

4905-3901082

Tap wrench for clamp strips

1

I27-3901008-ShA

Grease gun tip for lubrication of universal joints

1

I-23-3901000

Spanner for priming of brakes and for air tap

1

7811-0002S1 Ts15cr

GOST 2839-80

Service tools for APC

Wrench 5.5x7 mm

1

39 2651 2055 or

7811-0003S1 Ts15cr

GOST 2839-80

Wrench 8x10 mm





1

39 2651 2085

Wrench 12x14 mm

1

39 2651 2255

Wrench 13x17 mm

1

39 2651 2115 or

7811-0023S1 Ts15cr

GOST 2839-80

Wrench 17x19 mm



1

39 2651 2135 or

7811-0025S1 Ts15cr

GOST 2839-80

Wrench 22x24 mm



1





Part No.

Description

Qty

39 2634 2315 or

2810-0219 oxidized

GOST 7211-86

Chisel



1

39 2641 4036 or

7814-0092

GOST 5547-93

Pliers



1

TU-2034-225-87

(434.90.026)

Set No.4 of feeler gauges 70, 2nd accuracy class



1

I91-3901000

Universal screw driver

1

70-17087-A2

Small specialized screw driver

1

39 2624 1545

Drift 4 mm

1

 060-149450

 Box with electric SPTA containing :

1

TU16-535.852-79

Bulb A28-40 for headlights and IR light

1

34 6523 3121

Bulb TN-28-10 for dome lights

7

GOST 2204-80

Bulb MN-26-0.12 for illumination of instrumentation panel

2

TU16-675.203-87

Bulb A24-60-40V for auxiliary illumination of road

1

41-3825069

Bulb PZhZ 27-110 of light

OU-3GA-2M

2

432.70.149-1

Fuse 300A to protect SB harness

1

OYuO.480.003TU

Fuse filler VP1-1V 2A 250V (out of SPTA kit for R-174)

1

TU16-535.832-74



Bulb SM 28-4.8 for announcement of contamination of air filters

3

GOST 2023-75



Bulb A24-5 for marker lights, blinkers and stoplights

4

TU16-945.381-82

Bulb A24-21-3 for front and tail marker lights

6

TU-675.203-87

Bulb A24-1TV for illumination of power pack compartment, commander’s station, air reducer scale and tyre taps cluster

16

0112-1423

Pilot light – Incandescent lamp

 24V, 2W - to indicate charging current, minimum oil level and pressure, maximum coolant temperature (belongs to engine SPTA kit)

2

TU16-522.001-82

Fuse PV-10 of the fire fighting system harness

2

TU16-522.001-82

Fuse PV-30 of the fire fighting system harness

2

401U.26.015

Fuse for vehicle’s mains

5

41Yu-7901218

Driver bag containing :

1

34 6197 6021

Portable lamp SP-1

1

34 6523 3121

Bulb TN-28-10

1

704.3902056

Plastic cover containing maintenance diagrams and operation documentation

2

5903-8038730-01

Air-intake pipe

2





 Ref : ER 511 Recommended Service Units (Optional )



  A.          Power Unit



S.No.

Description

Qty

1.

Deutz BF6M1015 Engine

1 sets









  B.          Transmission Unit



S.No.

Description

Qty

1.

Allison MD3066 Gearbox

1 sets







 C.          Wheels



S.No.

Description

Qty

1.

Tyre

 24









Specification and photos are not contractual and are subject to verification upon inspection





TAKE NOTICE!



PLEASE BE ADVISED THAT INFORMATION INCLUDED IS CONFIDENTIAL IN NATURE AND IS BASED ON PRE-EXISTING BUSINESS RELATIONSHIP WITH THE LEGAL OWNER OF PROPERTY DESCRIBED HEREIN (IF APPLICABLE). AS SUCH, UPON RECEIPT OF SAID INFORMATION THE RECEIVER ACKNOWLEDGES THAT ANY UNAUTHORIZED CONTACT WITH SAID LEGAL SELLER WILL BE CHARACTERIZED AS A BREACH OF CONFIDENTIALITY AND SAID AGREEMENT MAY BE ENFORCED UNDER EXISTING LAW OR IN EQUITY.



This paper was prepared by General Equipment Inc.
The paper represents an offer of a partner of General Equipment Inc.
All rights are reserved by and for General Equipment Inc.
All content and ideas of this paper are the property of General Equipment Inc.












Defense items are subject to final destination approval and granting of an

export license issued by exporting country's authorities
