BTR-70





TYPE:

Hospital

DESCRIPTION:

Fully Refurbished BTR-70 with Diesel Engines

PRICE:

Upon Request

PACKING:

Upon Request

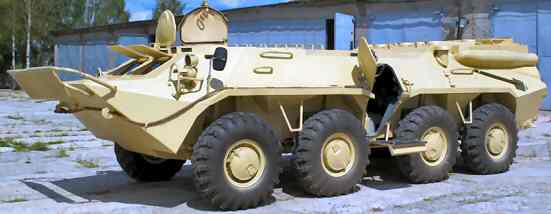

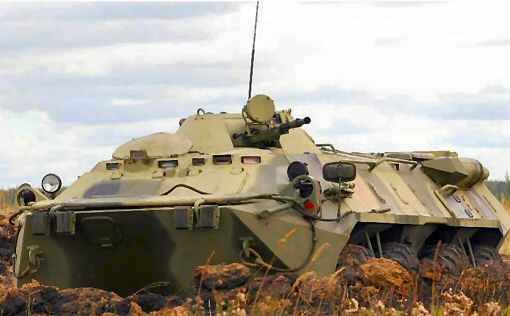

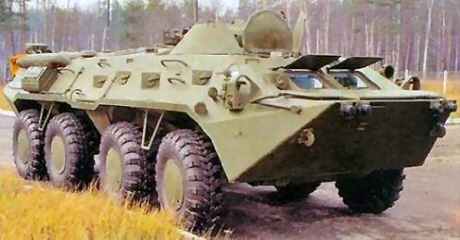

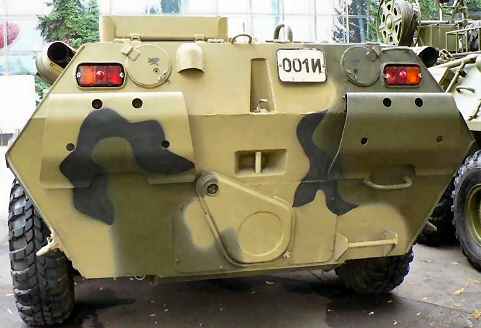

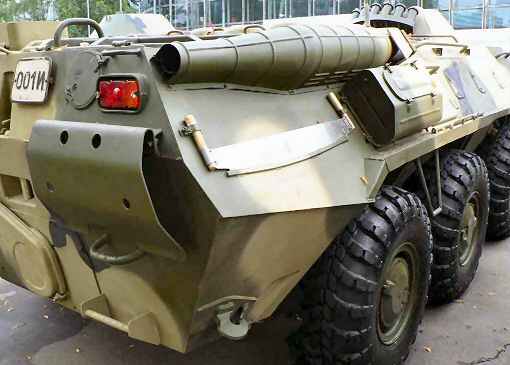

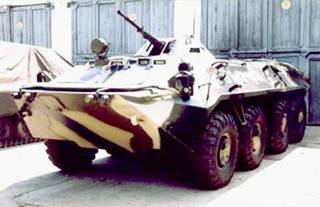

FULLY REFURBISHED BTR-70 WITH DIESEL ENGINES





















BTR-70 Modernised comes with options

a) NOT ARMED (no weapons)

b) With both

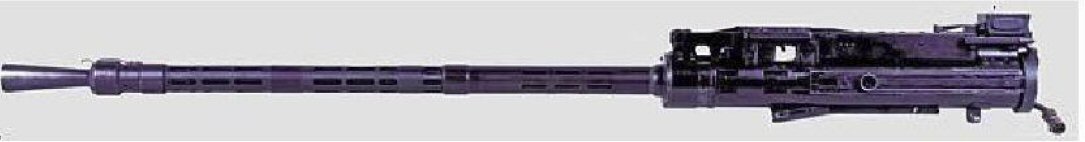

KPVT Machinegun 14.5x114mm



KPVT - Tank/Armoredcar version, with electric trigger and heavier barrel shroud

And

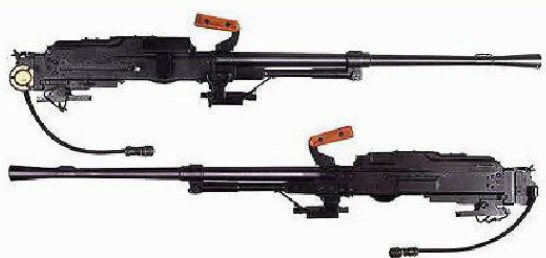

PKM - T Modernized Tank Machine-Gun





c) With both

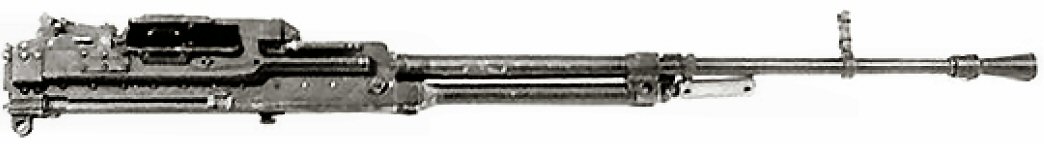

NSVT Machinegun 12.7x107mm





And

PKM - T Modernized Tank Machine-Gun



d) Only ONE NSVT 12.7x107mm





All above options supplied with standard

PKMT/NSVT and KPVT delivery kits

No ammunition included







                            Specifications

         B T R  -  70diesel

            Armoured    Personnel    Carrier

VEHICLE TYPE         Wheeled , Armourclad and Amphibious 8x8
WEIGHT OVERALL , kg       11,500-12,000
COMBAT CREW , MEN       10 ( 3 + 7 )
POWER TO WEIGHT RATIO , hp/t     21.17
AIRPORTABLE         Both An-12, IL76 and An-124
PROTECTION         Ballistic up to 7.62mm AP + + Armour Level B7

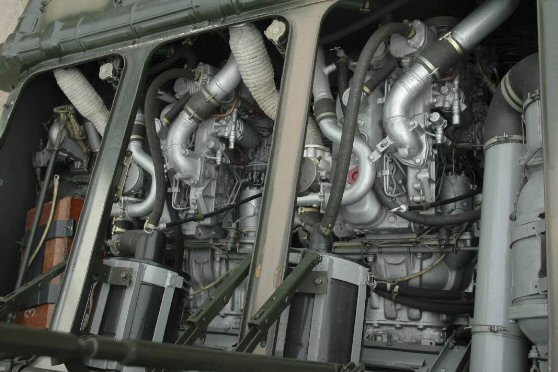

POWER , hp         127x2=254 (2x NEW Belarus diesel engines Type D127)
TYRES           Pneumatic and Tubeless
SUSPENSION         Independent and traverse stabilzer bars
COMMUNICATIONS         R-123M Radio Set - R-123M Radioreceiver - R-124 Intercom
SELF RECOVERY          Winch
STEEL CABLE LENGTH , m       50
HOOK RATED LINE PULL , ts       6t and 12t with a pulley block
MAIN DIMENSIONS
LENGTH , m         7,535
WIDTH , m         2,9
HEIGHT , m ,  with overall clearance 475mm   2,235
TRACK , m         2,41
CLEARANCE , with protuding stumps     0,475
MINIMUM EXTERNAL TURNING RADIUS , m   No more than 13.2
TACTICAL DIAMETER OF GYRATION @ 6-7kmh , m No more than 20
MAXIMUM SPEED ON TAR ROADS , kmh   Not less than 80
MAXIMUM SPEED OFF ROAD , kmh     20 to 40
AMPHIBIOUS , kmh         Not less than  9
FUEL RANGE ON TAR ROADS , km     840
FUEL RANGE OFF ROAD , km       200 to  500
FUEL RANGE AMPHIBIOUS , hours     16
NEGOTIABLE OBSTACLES , GRADIENT , degrees   Up to  30
NEGOTIABLE OBSTACLES , SIDE SLOPE , degrees Up to  25
NEGOTIABLE OBSTACLES , DITCH , metres   Up to 2
ARMAMENT
TURRET MACHINEGUN MOUNT     Closed BPU-1
CO-AXIAL MACINEGUNS       1 x 14.5mm KPVT and 1 x 7.62x54R PKT
AMMUNITION ALLOWANCE 14.5mm KPVT   500 rds
AMMUNITION ALLOWANCE 7.62mm PKT   2000 rds
MACHINEGUN TRAVERSE , degrees     360
MACHINEGUN ELEVATION / DEPRESSION , degrees From minus 4 to plus 60
EFFECTIVE RANGE 14.5mm KPVT     2000 metres
EFFECTIVE RANGE 7.62mm PKT     1500 metres
VARIANTS  BTR - 70di
WEIGHT , kgs         11,500-12,000     11,500-12,000
TURRET TYPE         Closed BPU-1     Closed BPU-1
ARMAMENT          12,7mm NSVT Machinegun   12,7mm NSVT Machinegun
ARMAMENT         Co-axial 7.62mm PKT Machinegun
FIRE - CONTROL  SYSTEMS
PP-61 or PP-61M
AIMING DEVICES         Dual axis , manual
VISION DEVICES         2 X TNPO - 165A
AMMUNITION ALLOWANCE ,  12,7mm     600 rds in one belt
AMMUNITION ALLOWANCE ,  14.5mm     500 rds in one belt
AMMUNITION ALLOWANCE ,  7.62mm     2000 rds in one belt












Specification and photos are not contractual and are subject to verification upon inspection
