CHASSIS STANDARD FEATURES

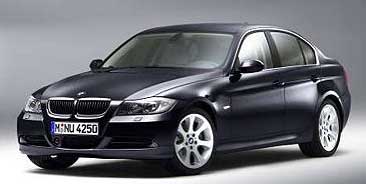

·         NEW 2007 BMW 330i

·         Engine 3.0L in-line 6 with 255 HP

·         Material: Leather

·         No of Doors: 5 including trunk

·         Colour: to be specified by customer

·         Manual transmission 6 speed

BASE ARMORED EQUIPMENT

• Vehicle armored using 6.35 mm ballistics steel that has been previously tested at the H.P. White Laboratory to defeat the following in non transparent areas

B6 - 7.62 x 51mm (European Ballistic Standards EN1063)

• All four (4) doors armored using 6.35 mm ballistics steel that has been previously tested at the H.P. White Laboratory to defeat the following in non transparent areas

B6 - 7.62 x 51mm (European Ballistic Standards EN1063)

• Windshield is 40 mm (1.575 inches) thick that has been previously tested to defeat the following

B6 - 7.62 x 51mm (European Ballistic Standards EN1063)

• Transparent armor for doors is 40 mm (1.575 inches) thick that has been previously tested to defeat the following

B6 - 7.62 x 51mm (European Ballistic Standards EN1063)

• Oblique, Front and Rear of vehicle armored using 6.35 mm ballistics steel that has been previously tested at the H.P. White Laboratory to defeat the following

B6 - 7.62 x 51mm (European Ballistic Standards EN1063)

• Entire roof area will be armored using 5 mm ballistics steel that has been previously tested at the H.P. White Laboratory to defeat the following

B6 - 7.62 x 51mm (European Ballistic Standards EN1063)

• Floor armored using 3 mm ballistics steel with 2 mm Mild Steel that acts as an absorbent for blast.

The hard steel is brittle therefore can shatter injuring the occupants inside the vehicle if a blast occurs therefore we recommend 2 mm Mild Steel on top as a second layer included.

• All pillar posts, side panels, kick-panels, firewall, and headers, cargo area, rear wheel arches, rear cargo doors will all be armored using 6.35 mm  ballistics steel that has been previously tested at the H.P. White Laboratory to defeat the following

B6 - 7.62 x 51mm (European Ballistic Standards EN1063)

• Overlap System around each window will be used throughout the vehicle to ensure complete protection armored using 6.35 mm  ballistics steel that has been previously tested at the H.P. White Laboratory to defeat the following

B6 - 7.62 x 51mm (European Ballistic Standards EN1063)

• Battery and computer armored using 6.35 mm  ballistics steel that has been previously tested at the H.P. White Laboratory to defeat the following

B6 - 7.62 x 51mm (European Ballistic Standards EN1063)

• Run-Flats installed in all tires

B6 - 7.62 x 51mm (European Ballistic Standards EN1063)

• Suspension upgraded to compensate for additional weight with aftermarket upgrades

• Power window on driver side
