BLINDCLOUD





TYPE:

Cloud

DESCRIPTION:

Blindcloud System

PRICE:

Upon Request

PACKING:

Upon Request





blindcloud system




From New manufacture



BLINDCLOUD SYSTEM

1. Overview

The system designed to against Cruise missiles, low-level aircraft and protect a military base area, island base against landing infantry. The system are active-defense system range 50-800m high , distance 100-1500m base on caliber of Ammunition. The system look like a Firework system with launcher and ammunition design base on firework.

The Ammunition contained materials observed the electronic waves: Polymer elements, proton magnetic in Nanometer scales, Oxide metal which jammed in different spectrum, mixture of ceramics proton and steelball, explosive and thermal jammer.

2. Technical base

The Gen 2-4 of cruise missiles range from hundred to thousand km, ceiling 50-1000m , high technology of stealth , anti-radar , in examples: + ALCM: AGM- 86A/B/C/D; TOMAHAWK AGM-109/H/I/K/L; HARPOON AGM-48 E/H; AGM-120; AGM-136A (RAINBOW); AGM-142; AGM-154A/B/C; AGM-158 vμ AGM-129. +SLCM: TOMAHAWK BGM-109A/B/C /D/E/F and TOMAHAWK RGM/UGM-109A/B/C/D +GLCM: TOMAHAWK BGM-109G

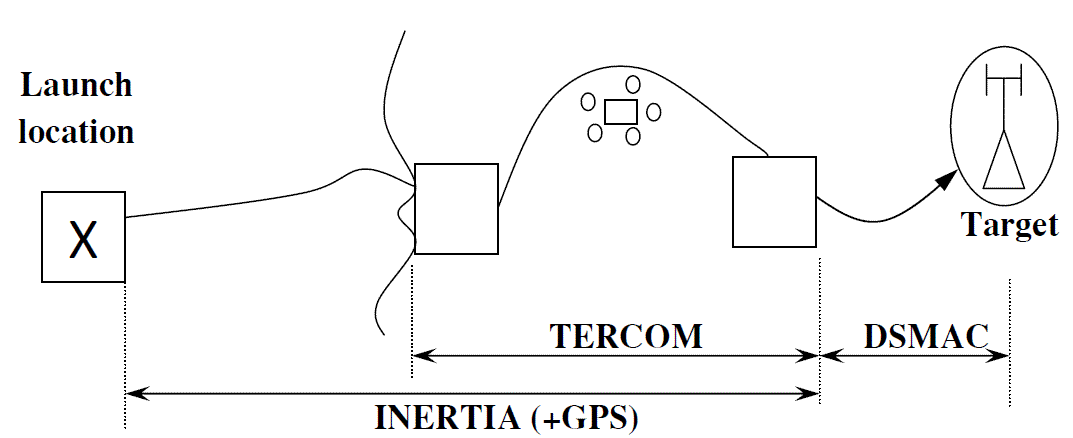

Diagram below is working describe of Cruise missiles



The weakness of cruise missiles are:

+ Low ceiling fly (50-100m)

+ Low speed :06mins/100km

+ Ammunition density: 6-8mm

+ Programmed cruise , unchanged routing and targets are fix or low speed movement .

+ Control system also depend on climate where the missiles operate.

The weakness of Infantry, Naval landing to Island finally is troops who can get injured by steel-ball and nanometer scale ceramic+steal.

The Blind Cloud system, from understanding of tactical and Cruise Missiles giving solution to defense and support to fighting weapon by causing injuries and small damage. Cruise missiles or aircraft when jammed or less control can easy to destroy by main weapon ie ground to air missiles, Artilleries.

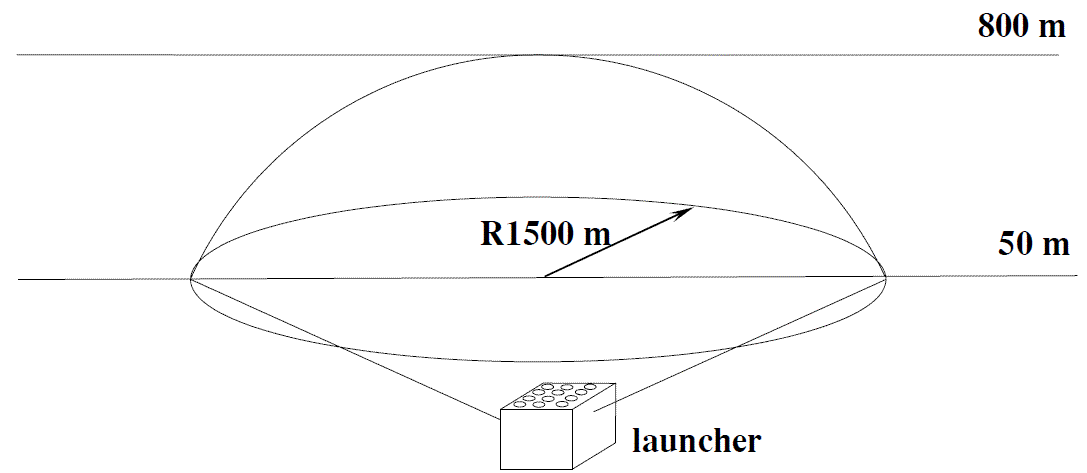

- Ceiling range of explore and injury: 50-800m

- Distance to explore and injury: 100-1500m

- Speed and density of firing: 2shoots/1s/1launcher system

- Continuous firing on 01 launcher: 10 shoots

- Launcher tubes in battle field: 181-1629 launcher (depend on tactile)

- Active time of Blindcloud: 4 hours

- Freq Spectrum : from IR to Radar wavelength

- Weight of injury piece : 1-2gram

- Injury effective against troop landing : 20,000m2 (1000 launcher/ battle field)

The operation of Blind cloud system in conjunction with radar/observation, automatic control firing system.

The Blindcloud sysem can install in any kind of military vehicles, fixable or mobile depend on tactic demanding.

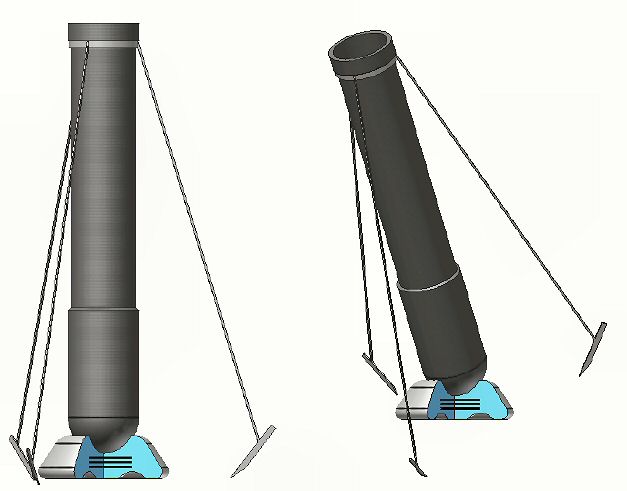

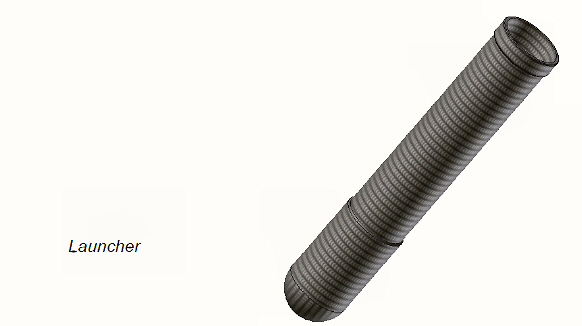

3. LAUNCHER

From success of polymer Mortar launcher, the launcher of blindcloud made from non-metal materials, fireproof, stables.

The system adjustment angle by step 5 and can sync with control firing system.

Special design for night operation in ammunition supply to launcher and ofcourse all launcher are painted by stealth painting.



H1:Microscope of polymer material use in launcher



4. Ammunition:

As same as structure of firework but it contained materials observed the electronic waves :Polymer elements, proton magnetic in Nanometer scales, Oxide metal which jammed in different spectrum, mixture of ceramics proton and steel-ball, explosive and thermal jammer.

5. Technical diagram

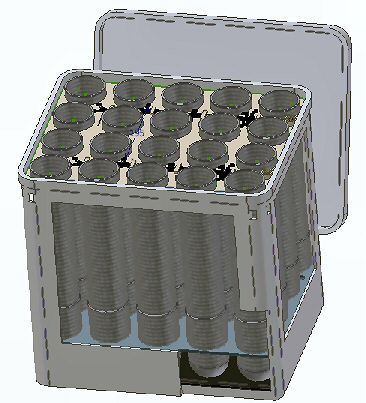

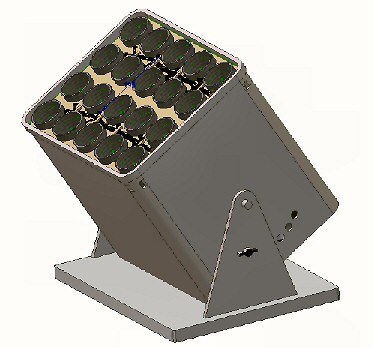

A. System launcher for Ammunition 71,6mm

    - Dimension(LxWxH): 500 x 404 x 490mm

    - Number of launcher: 20

    - Weight without ammunition: 24kg

    - Weight with ammunition: 30kg

    - Diameter of launcher tube: 71,6mm

    - Length of launcher tube: 450mm

    - Ammunition caliber: 68mm

    - Ceiling trajectory: 70m

    - Effective areas: 20m

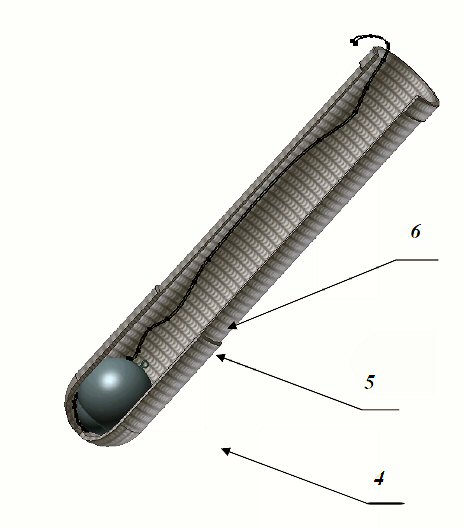

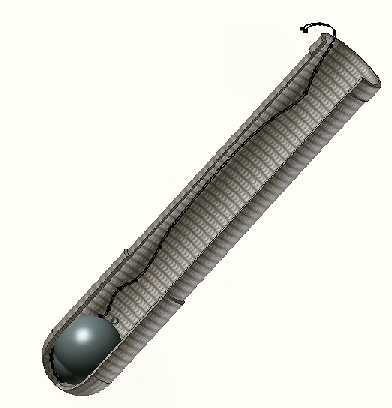

Ammunition and launcher

1. Ammunition;

2. Launcher;

3. Firing wire





- Effective areas: 30m



B. System launcher for Ammunition 91,8mm

- Dimension(LxWxH): 630 x 510 x 640mm

- Number of launcher: 20

- Weight without ammunition: 32kg

- Weight with ammunition: 40kg

- Diameter of launcher tube: 91,8mm

- Length of launcher tube: 600mm

- Ammunition caliber: 85mm

- Ceiling trajectory: 120m

- Effective areas: 30m

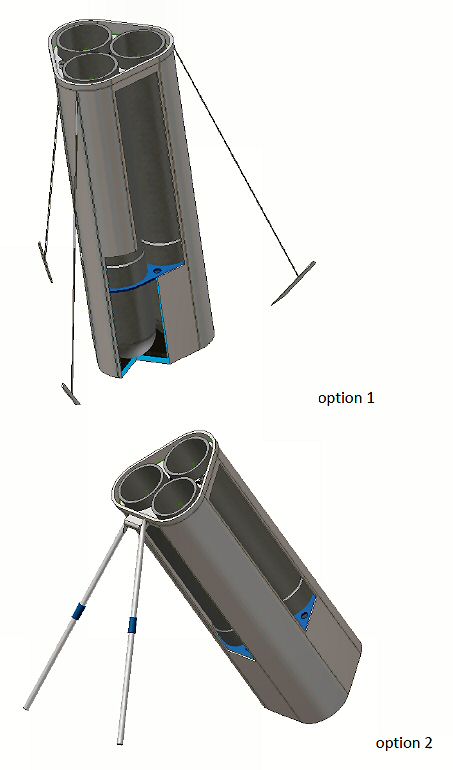

C. System launcher for Ammunition 123mm

- Dimension(LxWxH): 470 x 430 x 940mm

- Number of launcher: 06

- Weight without ammunition: 32kg

- Weight with ammunition: 40kg

- Diameter of launcher tube: 123mm

- Length of launcher tube: 900mm

- Ammunition caliber: 115mm

- Ceiling trajectory: 180m

- Effective areas: 40m

- Application: IR jammer, Negative Jammer, pulse jammer , smoke creator and target injury









D. System launcher for Ammunition 148mm

- Dimension(LxWxH): 392 x 368 x 1040mm

- Number of launcher: 03

- Weight without ammunition: 30kg

- Weight with ammunition: 40kg

- Diameter of launcher tube: 148mm

- Length of launcher tube: 1000mm

- Ammunition caliber: 142mm

- Ceiling trajectory: 250m

- Effective areas: 50m

- Application: IR jammer, Negative Jammer, pulse jammer , smoke creator and target injury

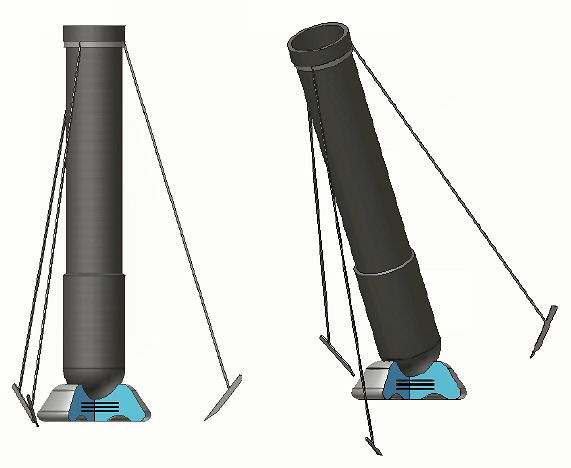

E. System launcher for Ammunition 172mm

- Number of launcher: 01

- Weight without ammunition: 28kg

- Weight with ammunition: 32kg

- Diameter of launcher tube: 200mm

- Length of launcher tube: 1200mm

- Ammunition caliber: 164mm

- Ceiling trajectory: 400m

- Effective areas: 60m

- Application: IR jammer, Negative Jammer, pulse jammer , smoke creator and target injury

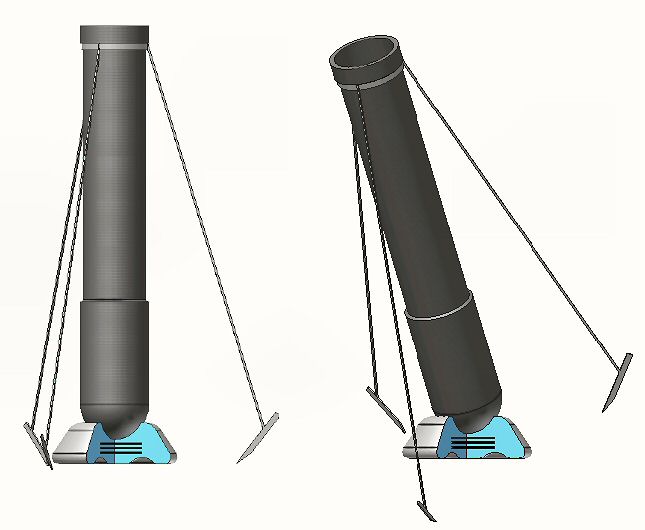

F. System launcher for Ammunition 217mm

- Number of launcher: 01

- Weight without ammunition: 40kg

- Weight with ammunition: 46kg

- Diameter of launcher tube: 217mm

- Length of launcher tube: 1400mm

- Ammunition caliber: 206mm

- Ceiling trajectory: 700m

- Effective areas: 80m

- Application: IR jammer, Negative Jammer, pulse jammer , smoke creator and target injury



G. System launcher for Ammunition 245mm

- Number of launcher: 01

- Weight without ammunition: 55kg

- Weight with ammunition: 63kg

- Diameter of launcher tube: 300mm

- Length of launcher tube: 1500mm

- Ammunition caliber: 238mm

- Ceiling trajectory: 1000m

- Effective areas: 100m

- Application: IR jammer, Negative Jammer, pulse jammer , smoke creator and target injury







Specification and photos are not contractual and are subject to verification upon inspection
