BARGE100





TYPE:

Power Barge

DESCRIPTION:

100 MW Power Barge

PRICE:

Upon request

PACKING:

As is, Where is

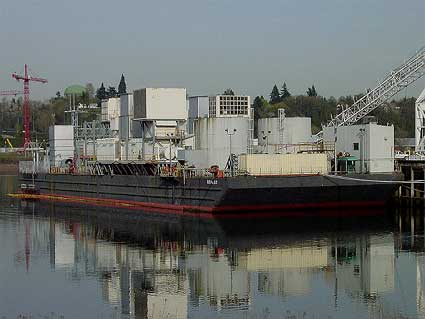

100 MW POWER BARGE






100 MW Power Barge Capabilities

•



Rapid deployment of a fully operational 100 MWe ISO power plant


•Temperature de-rate at 90F to 85MWe


•Step up voltage to 69 kV with existing onboard substation


•Process and store distillate fuel


•Dedicated area for RO demineralization system for water injection

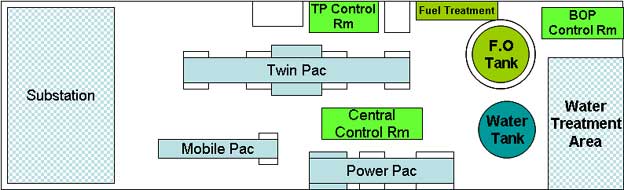

General Layout

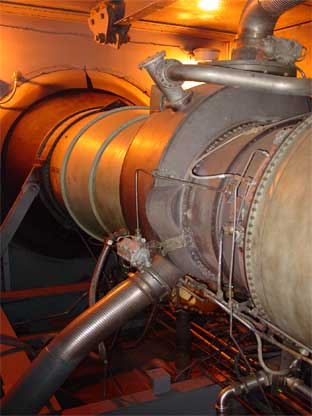

Gas Turbine Technology



•Pratt & Whitney Aero-Derivative FT4 Gas Turbines

•





PEPCO and Triconex PLC Based Controls

•





Fast start operations






Operational Specifications



  • •Flexible generation with 4 gas turbines


  • Self contained, capable of operating pier side or anchored


  • •Designed to operate in rivers, harbors or sheltered bays


  • •Lightship draft requires only 5 feet of water

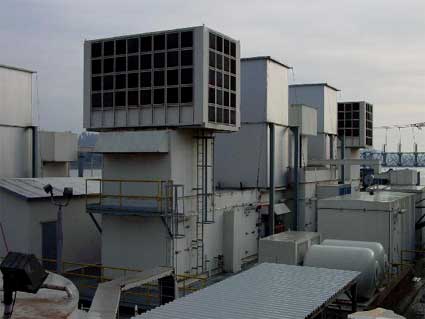

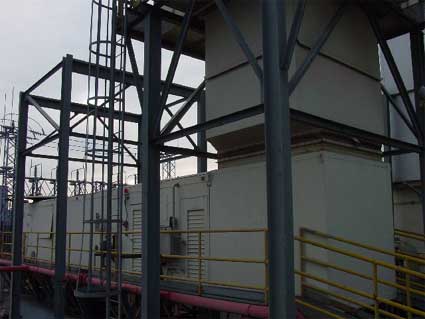

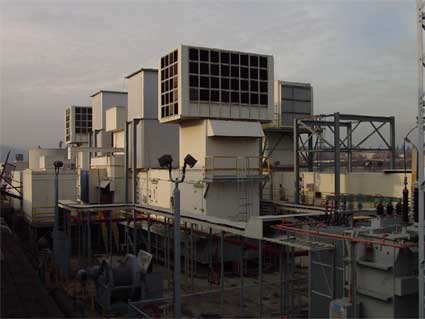

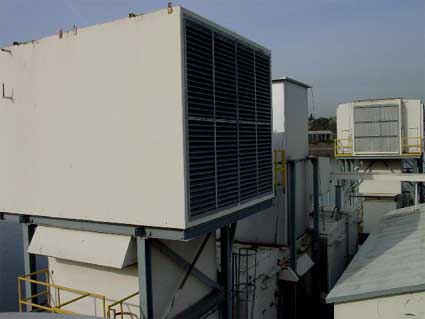

Gas Turbines




Twin Pac



  • •The FT4C-3F Twin Pac consists of two Pratt & Whitney C-3F engines driving a 70 MVA Mitsubishi generator





  • •The baseload output is 58 MW at ISO conditions or about 48.5 MW at 90 degrees F.





Power Pac



  • The FT4C-3F Power Pac consists of a P&W A-11 engine driving a 50.5 MVA Electric Machinery generator.



  • •The baseload output is 22.5 MW at ISO conditions or about 20.5







Mobile Pac

•The FT4A-11 Mobile Pac consists of a P&W A-9 engine driving a 23.5 MVA Electric Machinery generator.





•The baseload output is 20 MW at ISO conditions or about 17 MW at 90 degrees F.





Control Systems

•The Twin Pac has an independent control room with PEPCO Controls (PLC based)

•Twin Pac Control Room contains the MCC for Twin Pac auxiliary systems

•Mobile and Power Pac have a Central Control Room with auxiliary MCCs
  • –-6 Power Pac has the upgraded PEPCO controls
  • – <Mobile Pac has the Triconex 1500 controls

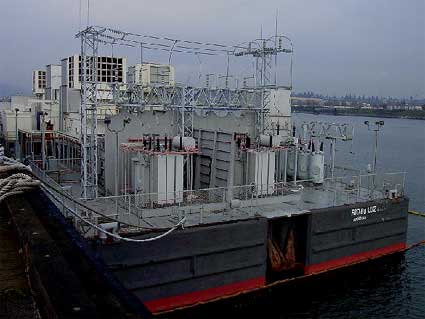

69 KV Substation

  • •Substation has 4 25/33.3/37.5 kVA generator step up transformers with blast walls





  • •There are mechanical and automatic circuit breakers/disconnects with PTs and CTs





Auxiliary Systems

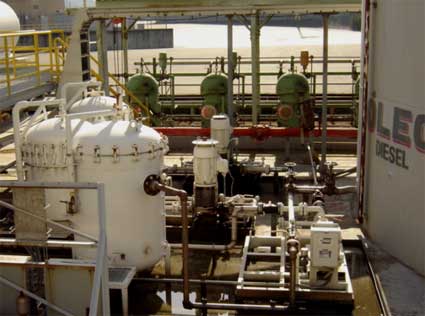

Fuel Treatment System



  • •Westfalia centrifuge capable of 133% of the required flow



  • •95,000 gallons of storage



  • •Designed for lightering from a tank barge or pier side supply

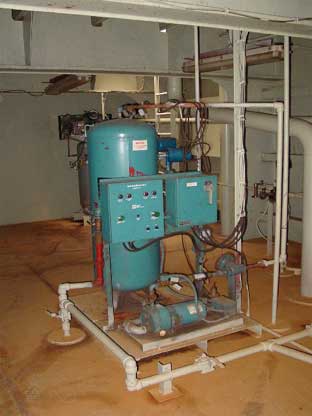

Demineralized Water System

  • •Designed for leased containerized RO demineralization system



  • •Water injection pumps installed



  • •On engine manifolds required



  • •95,000 gallon storage tank









Firefighting Systems

  • •Fire main ring system powered by electric and diesel fire pumps

  • •2 Foam stations for fuel handling areas

  • •Deluge system installed in substation

  • •Automatic CO2 protection in turbine/generator enclosures

  • •Portable CO2 extinguishers



Storm Water Treatment System

  • •Containment systems drain to storm tank



  • •Oily water separator treats storm water



  • •Designed to meet USCG requirements



  • •Internal sludge tank pumped to tank truck for disposal









Power Plant Maintenance

  • •Maintenance shop for onboard gas turbine and deck barge maintenance


  • •Shop tools for on-site gas turbine overhaul


  • •Storage areas for onboard spares


  • •Enclosure and high pole area lighting


  • •250 kW emergency power system


  • •Receptacles through the power plant



Marine Systems

Mooring Systems


  • •Deck barge is designed for traditional mooring alongside piers with bitts and bollards with fairlead


  • •Can also be anchored out with 4 point adjustable anchoring system which is included


  • •Also has a stream anchor/windlass and towing wire

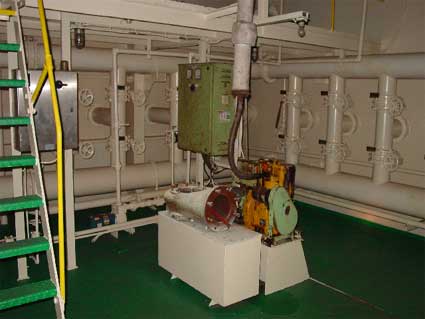

Ballast Systems

  • •Deck barge was designed to be fully ballastable



  • •Ballast pump



  • •Tank manifold with crossover



  • •Ventilated ballast tanks

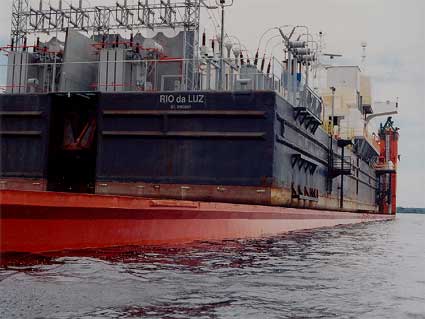

Deck Barge

  • •Originally built in 1976 as a heavy North Sea ballastable transport, this stout deck barge has heavy steel decks and members

  • •Deck barge is in very good condition and well maintained

  • •Deck barge is classed with ABS but suspended class during lay-up



Transport Options

  • •The power barge can be dry-towed on either a semi-submersible ship or deck barge



  • •It can also be wet-towed to any port





Ready for Deployment

















Specification and photos are not contractual and are subject to verification upon inspection
