ATVFA500E





TYPE:

ATV

DESCRIPTION:

500cc ATV FA500E

PRICE:

Upon Request

PACKING:

Upon Request

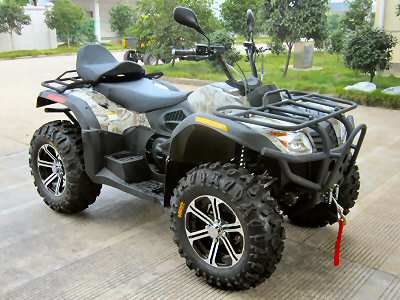

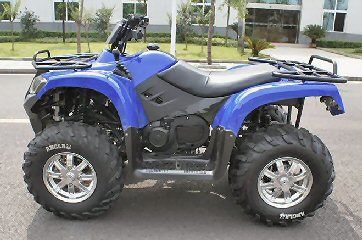

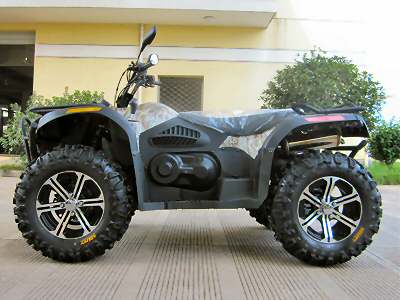

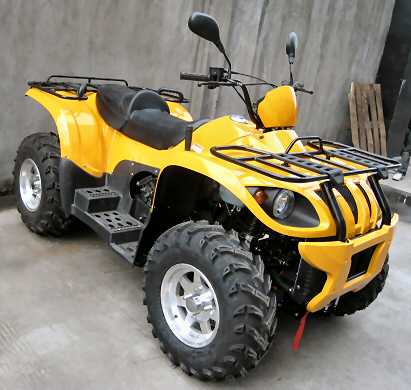

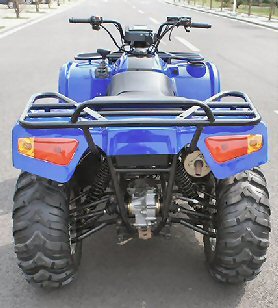

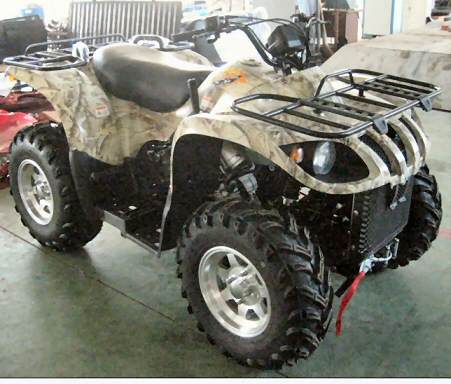

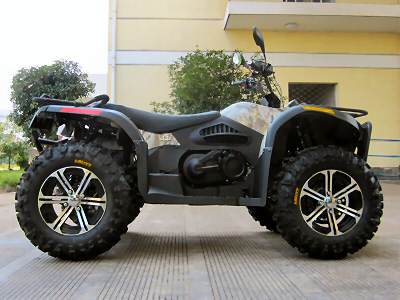

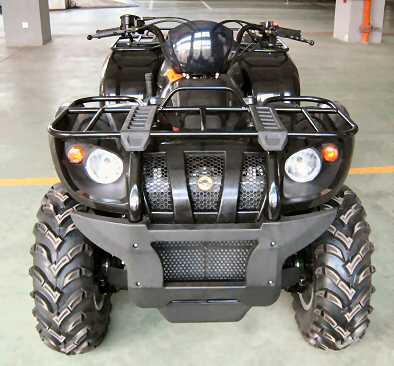

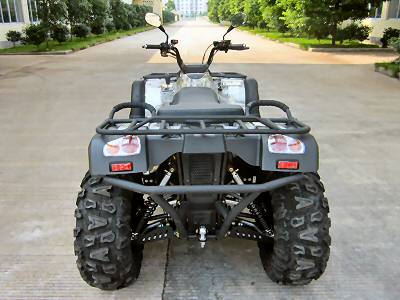

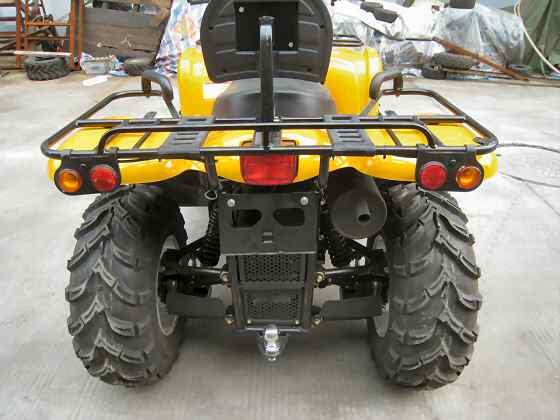

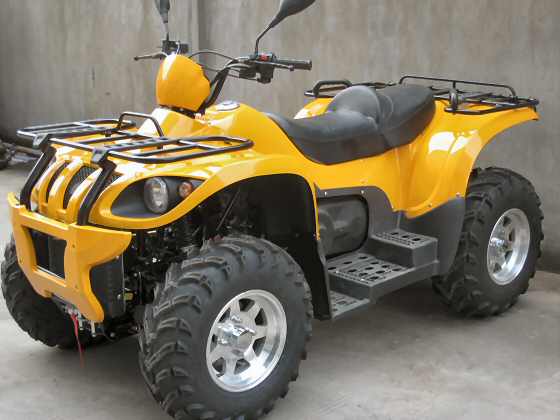

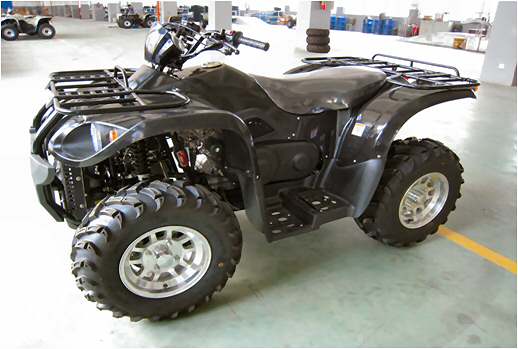

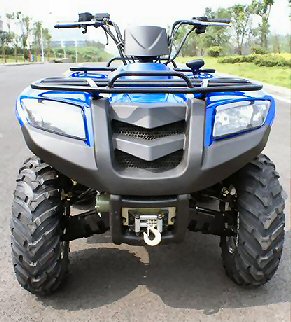

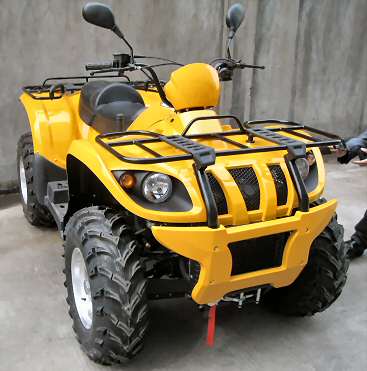

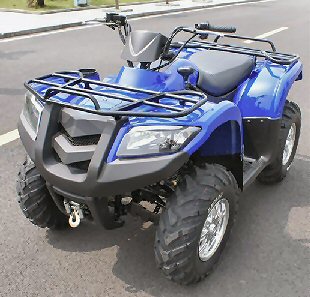

500cc atv fa500e












500cc water cooled CF engine, 4 stroke, 1 cylinder

Bore x Stroke: 84.5mm x 84 mm

Compression ratio: 9.3:1

Carburetion:  PD33G

Ignition: CDI

Starting: Electric

Automatic L - H - N - R - P, shaft drive,manual clutch, CVT with rear differential

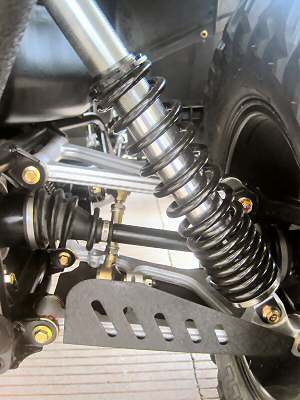

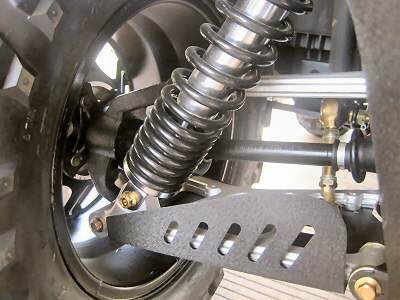

Front suspension: Independant double swing arm

Rear Suspension: Independant double swing arm

Front brakes: Dual ventilated hydraulic disk

Rear brakes: Ventilated hydraulic brakes

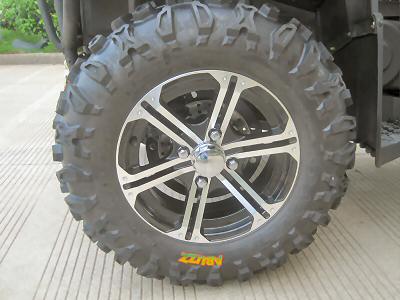

Front tires: AT23 x 8-12 radial

Rear tires: AT23 x 10-12 radial



DIMENSIONS

L x W x H: 1990mm x 1060mm x 1150mm

Seat height: 840mm

Wheelbase: 1235mm

Ground clerance: 220mm

Fuel capacity: 13.5 L.

Dry weight: 265kg

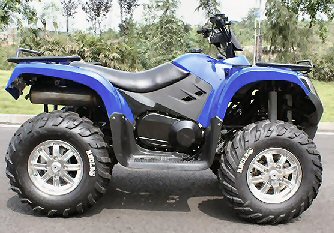

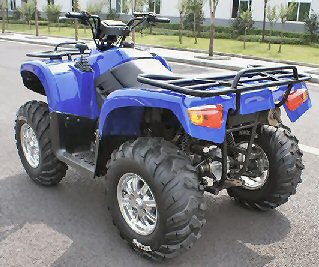

 EEC ATV 500CC VIP- 500(4X4) ATV

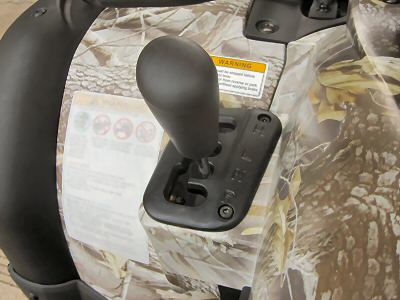

CVT fully auto with hand reverse and extra low gear. R,N,L,D


2WD/4WD adjustable by electric switch
4 wheels independent suspension
Japanese imported carburetor, easy starting in snowing area.
4 wheels disc brake.
LH hand brake stop the front wheels.
RH hand brake stop the rear wheels.
Foot brake stop the 4 wheels.
Shaft drive.
Big radiator.



Engine:

4 strokes, water- cool, CTV Fully Auto

Cylinder:

Single cylinder

Lubrication:

Pressure splash

Cylinder Bore Diamiter:

92mm(3.63"）

Piston Stroke:

75mm(2.96"）

Displacement:

498.6cm3

Compression Ratio:

10.2 : 1

Carburetor:

Single Chanber

Transmission:

CVT Fully Auto w/Belt

Gear Shiftting

R, N, D, L (Reverse, Neutual, Drive, Low gear)

Max Power:

24 kw / 6800r / min

Max Torge:

38 N.m / 5000r /min

L x W x H:

2050mm x 1150mm x 1200mm

Weight:

340kg

Brake:

Front + Rear Disc Brake

QTY/Container: 10 units/20'; 24 units/40'

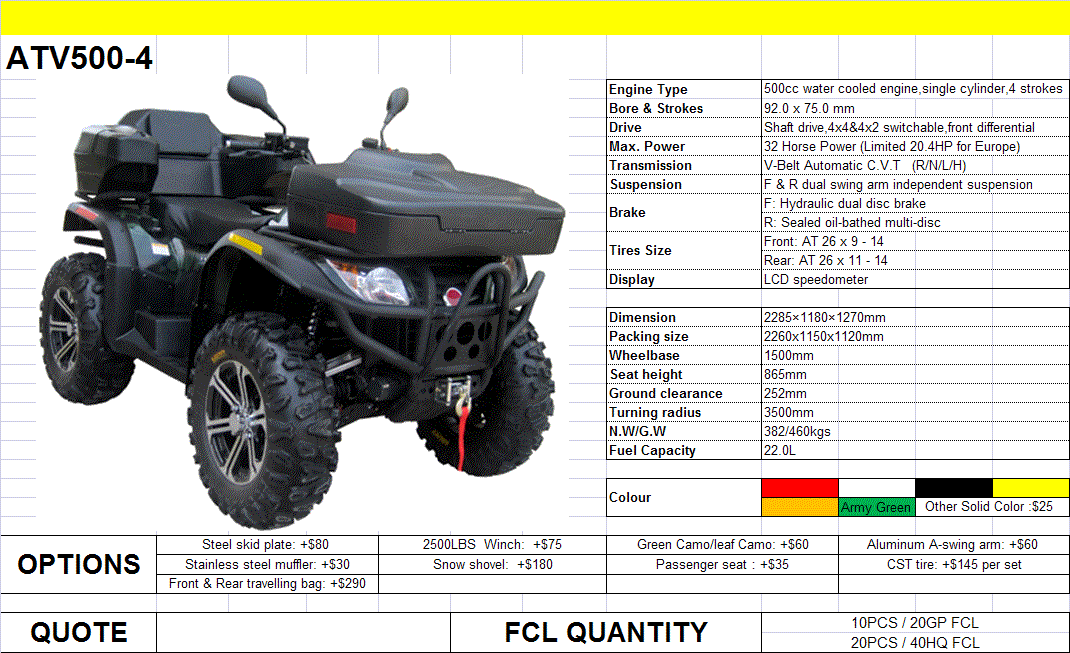

 ATV500-4








ATV500-4 ! We also provide spare parts as after sale service!

6 months warranty for atvs.



We will provide free warranty parts.

The payment term is always 30% deposit advanced70% balance against BL copy.


 But for LCL order / sample  we used to collect 100% payment advanced.

The delivery time is around 25-30 days since the payment reach in our company bank account



Specification and photos are not contractual and are subject to verification upon inspection
