ATV TOP OPENED





TYPE:

ATV

DESCRIPTION:

ATV Top Opened

PRICE:

Upon Request

PACKING:

Ex-Works





atv top opened



From New Manufacture



ATV top-opened car price and specification





Please kindly find our 4x4 and 6x6 ATV



Great tourism machine



Off-road vehicle configuration
Chassis main configuration
Engine Cummings 260 horsepower, straight row six cylinder, turbocharged intercooled diesel engine. 191KW. Displacement 8.9L
Gear box Manual nine shift gearbox, air assisted shift.
Front axle 7T grade integral steering drive axle, casting axle housing and wheel deceleration.
Middle and rear axle 10T grade monolithic axle,cast axle housing and wheel deceleration.
Front suspension Front suspension is a longitudinal multi leaf spring with two bidirectional cylinder shock absorbers.
Rear suspension Rear suspension is a longitudinal multi leaf spring with a transverse stabilizer bar.
Tyre Cross country tire dia 1600mm, four or six pcs,  with another spare tire.
Frame Stamping riveting frame structure.
Braking system Multi loop air brake system; aluminum alloy storage tank;
Steering system             Hydraulic Power Steering
Drive system 4*4 or 6*6, time-sharing four drive,front and rear axle are equipped with differential locks.
Cooling system Engine water cooling,high power cooling system;
Electrical system 24V；
Intake system Desert air filter, two-stage air filtration system;
Body main configuration option
Appearance modeling Long armored cab with 2mm thick steel plate.
Passenger area Open style with anti roll rack;
Door to the car Car on the right door, manual control;
Seat Seat leather material, back angle adjustable, 2 + 1 arrangement, 6 rows, middle aisle; Seat with two-point seat belt; Customized
Passenger area interior decoration The passenger area floor is decorated with aluminum decorative panels.
Inside side soft inner trim;
Driving area interior decoration Integrated semi enclosed instrument panel;
Airbag shock absorber driver seat.
Driving area A/C Driving area contains air conditioning and warm air systems.
lighting Front highlight LED headlights 2;
Awning Waterproof and abrasion resistant sunshade cloth, automatic expansion. Fold up the tail when folded.
Vehicle sound vb  The vehicle is equipped with a high quality sound system, including 1 subwoofer and 2 medium pitch speakers.
Tachograph   Tachograph,four cameras support independent amplification.
Party B does not specify technical parameters, and Party B selects standard configuration according to product industry standard.

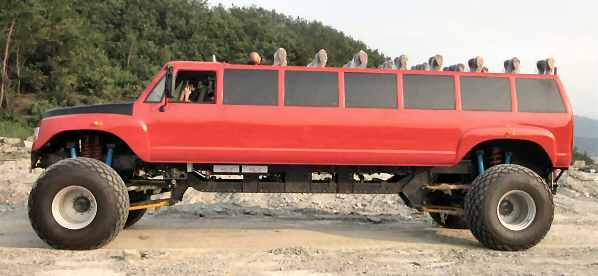

Referencing Photos

沙漠旅游观光车车-装甲型4×4











































Specification and photos are not contractual and are subject to verification upon inspection
