ARMORED MB SPRINTER BUS





TYPE:

Bus

DESCRIPTION:

Armored MB Sprinter Bus

PRICE:

Upon Request

PACKING:

Ex Works






armored mb sprinter bus



Subject Unsold or Market Withdrawal

From New Manufacture

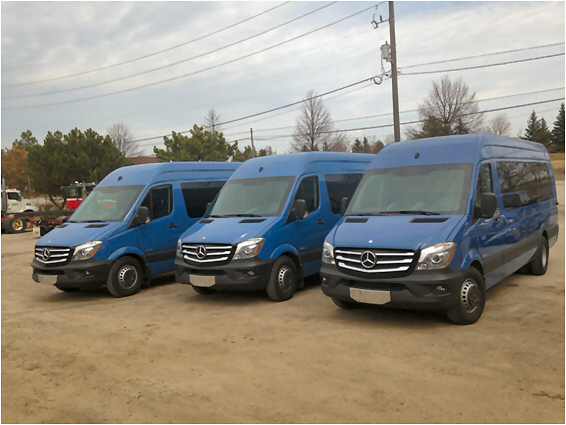

Mercedes Sprinter Armored 20-seat passenger bus, 3.0 L V6 turbo diesel, NATO B6 armor

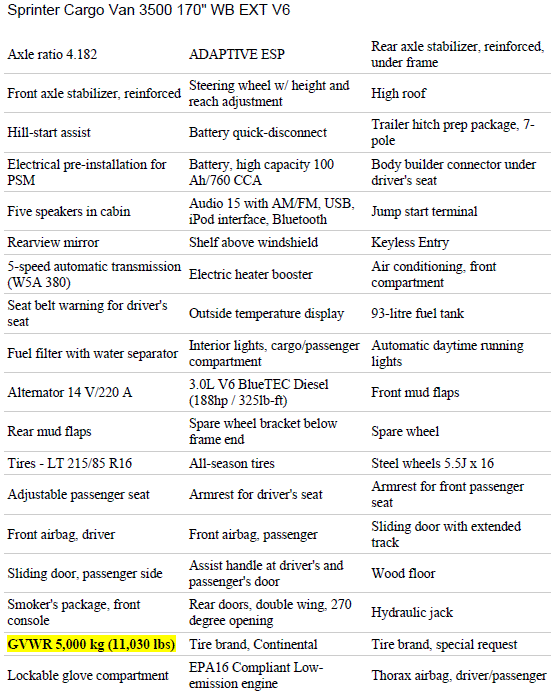

CHASSIS - FACTORY SPECFIFICATIONS:
- Engine: 3.0-liter DOHC turbo diesel V6
- Output: 188 hp @ 3,800 rpm, 325 lb-ft @ 1,400-2,400 rpm
- Transmission: 5-speed automatic
- Suspension: Independent front strut suspension with stabilizer bar and leaf springs, rigid rear beam suspension with leaf springs
- Brakes: ventilated disk brakes, front and rear

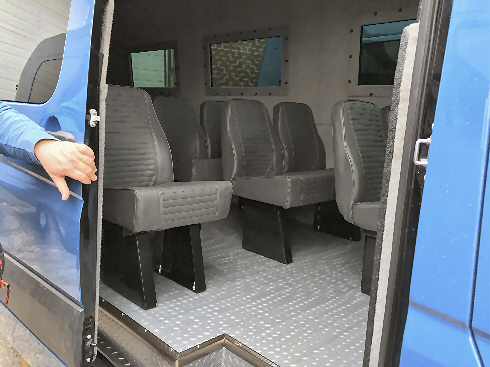

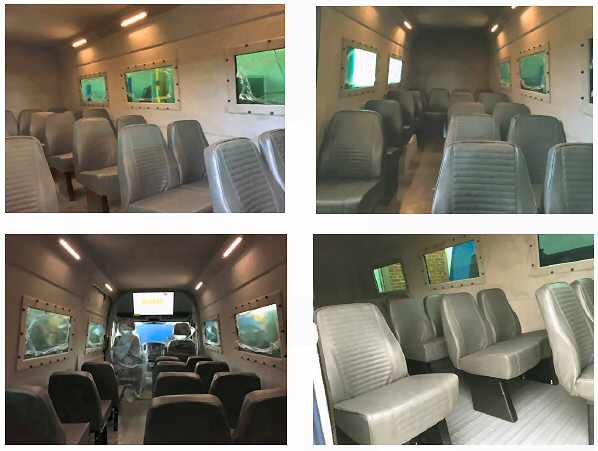

- Interior: 18 leather seats, powerful dedicated Air Conditioning system in the passenger section, 32 DVD Monitor
- Exterior color: Violet Blue (strobe lights on radiator grill)
- Interior color: Gray

ARMORING SPECIFICATIONS - PASSENGER COMPARTMENT
- Protection Level: in accordance with NATO/CEN B6 Level against high power rifles including: AK-47, M16, H&K, Galil (calibers; 7.62x39, 5.56x45, 7.62x51, M193 & M80)
- Quality ballistic steel shell installed between interior and exterior frame/chassis
- All door overlaps protect against penetration from every angle
- Separate ballistic steel rear door and partition is installed for maximum protection
- Ballistic steel firewall provides protection
- Ballistic steel (at a 60 degree angle) to provide full overhead protection
- Patented design (our patented design and welding processes ensure gapless protection and quality craftsmanship
- Transparent to metal overlapping: overlapping armor around all glass and door apertures with splash guard (to prevent penetration into the cabin from direct and angle strikes or ricochet.

ARMORING SPECIFICATIONS OTHER AREAS
- Floor: using mild steel
- Roof (at a 60 degree angle) is lined with ballistic steel for maximum overhead protection
- Patented designed armoring for firewall and wheel wells for added protection
- Additional areas of armoring are the fuel tank , and battery compartment
- A complete set of four (4) high-grade composite run-flats are included and installed on each wheel
- Driver side power window (window drops by approx. 4 in.)

ARMORING SPECIFICATIONS - TRANSPARENT AREAS
- All original glass is removed & replaced with NATO/CEN certified multi-layered ballistic glass/polycarbonate glass
- Utilizing robotic equipment to install armored glass to ensure precision
- Driver side powered window, 42 mm thick for maximum protection multi-layered design
- Multi-Layered glass/polycarbonate protecting against multiple hits,

MODIFICATIONS AND PROTECTION:
- All parts necessary modified to comply with additional weights of armor
- Fuel tank protection protected with ballistic steel
- Suspension system: the original suspension is replaced with reinforced suspension
- Suspension reinforced to manage the extra weight added by the armoring with additional vehicle weight.
- Floor Protection: armored with 1/8 armored steel, designed to protect against fragmentation of hand grenades and anti-personnel mines.
- Roof protection: armored with ballistic composite material or 1/8 armored steel in accordance with NATO/CEN and NIJ IIIA/B6 standards.
- Radiator protection





The GVWR refers to the maximum weight a vehicle is designed to carry including the net weight
of the vehicle with accessories, plus the weight of passengers, fuel, and cargo.

The GVWR is a safety standard used to prevent overloading.

The ballistic steel and the bulletproof glass added together 1880 kg (4145 lbs)

The truck weight: 2600kg (5732 lbs)

Total : 4480 kg (9877 lbs)

GVWR 5,000 kg (11,030 lbs)















Specification and photos are not contractual and are subject to verification upon inspection
