Trax 4x4 Armored B6
As is, Where is

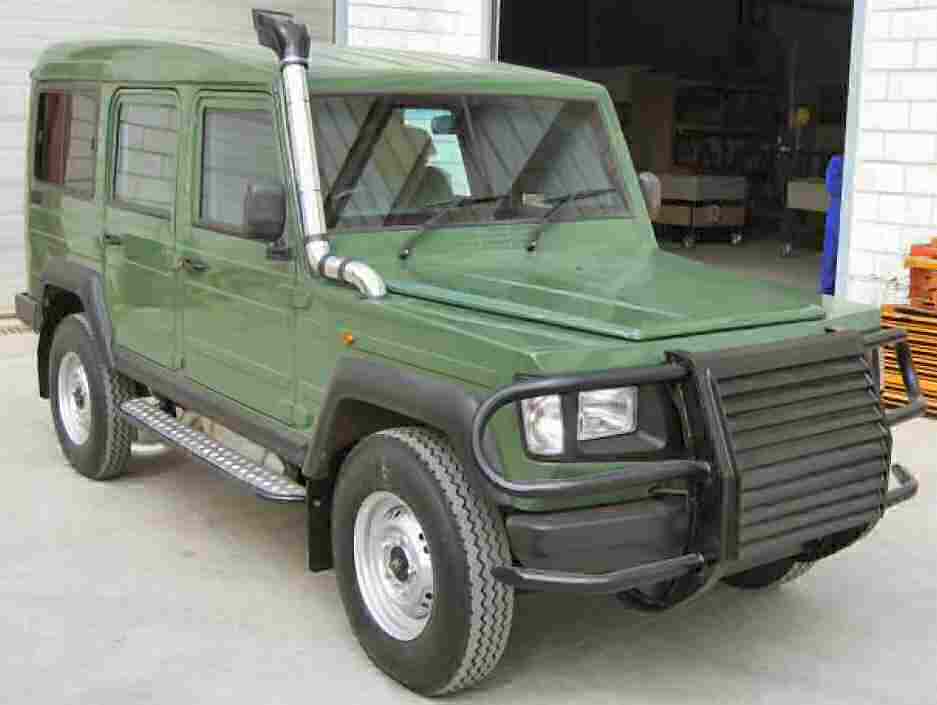

TRAX 4X4 ARMORED B6
With increasing terrorism threats and crimes expanding worldwide, standard security solutions no longer guarantee your protection
The next attack or assault can happen anytime or anywhere
All individuals or organizations that fulfill their duties during Crisis in medical, peace or social missions are affected by these developments
For them security is a necessity and not a luxury
There was a need to develop a reasonably low cost armored vehicle with highest ballistic integrity
Armor Force was thus born wherein we have designed and developed a range of state of the art Armored vehicles on the Trax platform

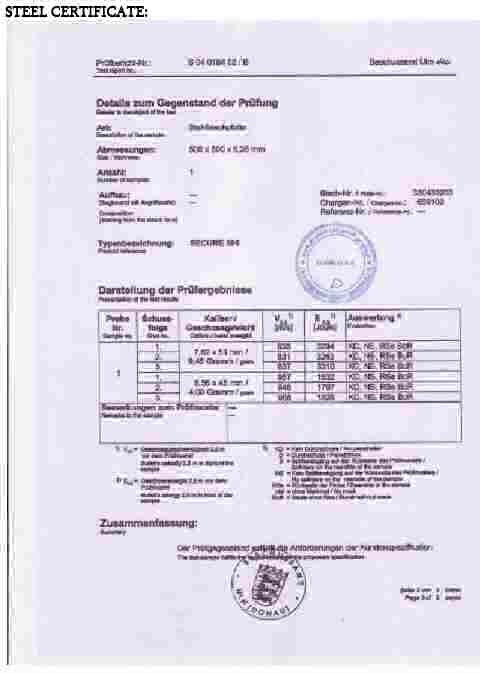

These vehicles have been successfully tested for its Ballistic integrity at ULB Proofhouse, the Accredidated Testing Laboratory and Certification Body in Germany making it one of the very few VEHICLES in the world to have a Certification for the complete vehicle
This is despite the Glass, Ballistic steel, and Run flats having their individual certifications
The Trax is Armored to:
European Level B6 NIJ Level III

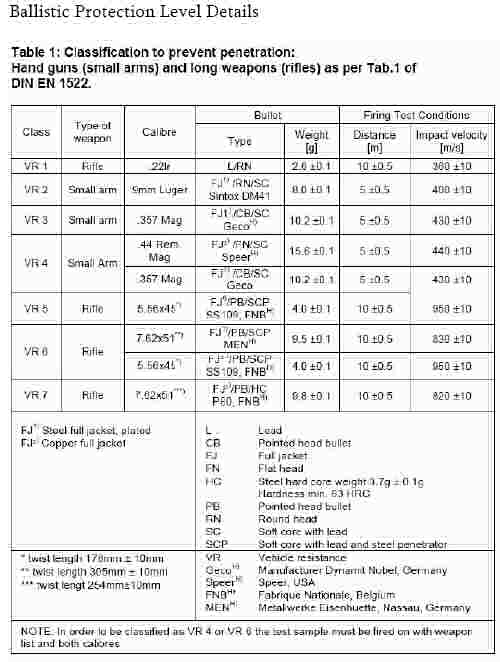

Classification DIN EN 1522 + DIN EN 1063 & BRV1999
What makes the Trax so special
Trax 4 wheel drive vehicles directly trace their lineage to the legendary Mercedes G wagon
Being one of the world's most capable and comfortable off road vehicles, it is exported to various armies worldwide
The vehicle is a formidable off roader with impeccable on road performance
It has many features that are impossible to find in most of the so called off-road vehicles any where in the world
The level of mechanical refinement and technology in the vehicle is a couple of decades ahead of the competition
Six sided armoring of passenger cabin to give maximum protection against 7.62 x 51mm Nato ball in accordance with EN 1522 & EN 1063 European level B6 NIJ Level III & BRV1999
A, B, C & D pillars are protected with armor this includes front fenders, (wings) rear wheel humps & firewall. This adds structural rigidity to the overall vehicle

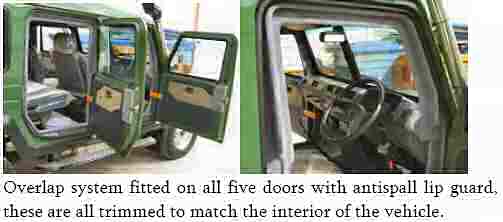

All passenger doors are fitted with overlap system and antispall guard which provides maximum strength retention to prevent penetration through door posts & pillars
Vehicles armor plates are stitch-welded using high-intensity MIG welders. The above process ensures the structural integrity is uncompromised by thermal and chemical variations of the material
The glass is installed using ballistic grade steel frame for added protection which gives extra support to help prevent cracks & fractures this also provides back up protection around these potentially weak areas which are commonly missed by other manufactures
The hinges are bolted directly onto the armor through the pillars & the doors this prevents stress on the hinges and the internal panels which usually crack under the strain
Flat glass, PVB/polycarbonate laminate 6.2kgs./sq.ft (13.7lbs/sq.ft) Thickness is 39mm.
Glass is manufactured using quality & strict selection of materials which provides the following features, Anti-Spall shield protects against glass splinters, chemical attacks. Autoclave temperature allows the polycarbonate to lose its memory to prevent delaminating & internal stress. The glass also provides multi hit protection.
The ballistic performance of bullet resistance glass is diminished when the glass is exposed to high temperatures plus ensures total ballistic resistance performance for a longer period of time.

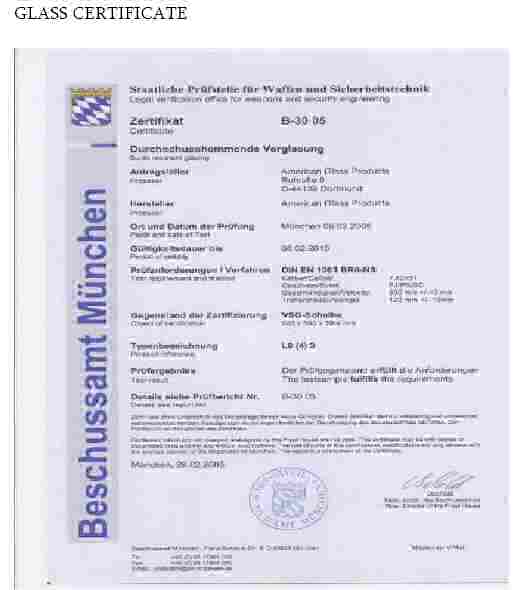

Glass is tested in accordance with EN 1522 & EN 1063 European Level B6 NIJ Level III & BRV1999
Standard Security Features
Run flat devices fitted in all wheels including the spare which enables the vehicle to be driven at 50 KMPH for 60 KMS on being shot

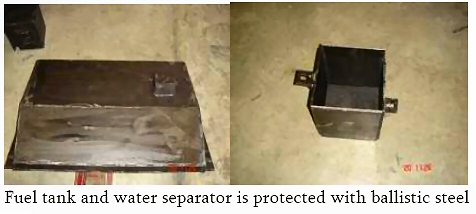

Fuel tank & water separator encased with ballistic steel to protect against explosive device projectiles
All four passenger doors fitted with heavy duty webbed door straps
Battery is protected within an armored box in the engine compartment
Exhaust protection to prevent foreign objects being inserted
Suspension is reinforced or modified as necessary to compensate for the additional weight
Hydraulic Jack lift additional weight of armor & tire iron.
Satellite tracking installed (V-Track).
Optional Security Features (at additional charge)
Heavy duty window regulator (for documentation passing)

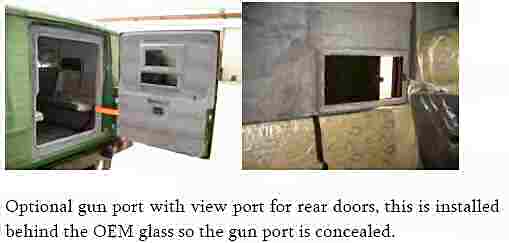

Gun port with view port
Rotating Turret on roof top
Two way intercom system
Heavy duty front bumper with bull bar
Additional run flats
Escape hatch installed on the roof
Fire suppression system
Note: All gun ports are concealed and are not visible from the outside. The appearance of the vehicle is not altered so we can maintain as close to an original look as possible.
The warranty for any armor related items installed, and conversion related workmanship, will be for a period of one year or 20,000KM which ever comes first.
Any suspected warranty related work must first be confirmed as being necessary by means of technical consultation with a company representative.
Technical consultation regarding any repairs or malfunctions is available by telephone, fax or e-mail during normal operating hours.
Specification and photos are not contractual and are subject to verification upon inspection
