APCDOZOR





TYPE:

APC

DESCRIPTION:

Armored Personnel Carrier Dozor-B

PRICE:

Upon Request

PACKING:

Ex-Works

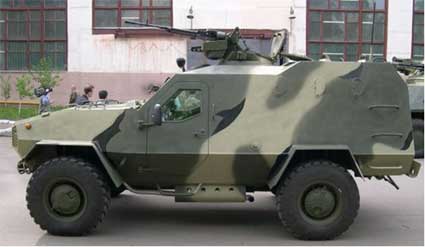

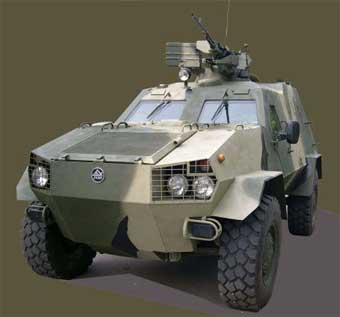

armored personnel carrier dozor-b









MAIN PERFORMANCE



Indexes

Values

Total weight, kg

8,220 ± 50

Loaded weight, kg

7,020 ± 50

Armour protection

against 7.62mm armour-piercing bullets

Wheel arrangement

4 х 4

Crew + troops, persons

11 (3+8)

Maximum road speed, km/h

110

Overall dimensions, mm:



length with (without) winch

5,680 (5,400)

width

2,400

height to machine gun mount (to roof)

2,700 (2,300)

Ground clearance, mm

400

Maximum road range, km

790

Negotiable obstacles:



maximum gradient, deg

31

maximum side slope, deg

24

trench crossing width, m

0.7

vertical obstacle, m

0.4

fording depth, m

1.0

Engine



type

diesel, with turbo charging and intermediate cooling

brand

DEUTZ 4M 1013FC (EURO-3)

quantity of cylinders

4

maximum power, kW (hp)

140 (190.5)

Gearbox, type (brand)

hydro mechanical

automatic (Allison 1000LCT)

Quantity of forward (reverse) gears

5 (1)

Transfer case, type

mechanical, with lockable inter-axle differential, two-stage,  electro pneumatically controlled

Special and additional equipment



Armament

enclosed remotely controlled anti-aircraft machine gun mount with 12.7mm machine gun

elevation laying angles, deg

from -3 to +68

azimuth laying angles, deg

360

ammunition load, cartridges

450

NBC protection equipment

filtering/ventilation unit

Navigation equipment, type (brand)

satellite receiver (SN-3003 “Basalt”)

Air conditioner, cooling capacity, kW

4.4

Night vision device, type (vision range, m)

infrared, passive/active (180 m)

Radio station, type (communication range, m)

USW radio station (20)

Tactile winch, brand (effort, kN)

COME-UP Winch DV-15000 (68)

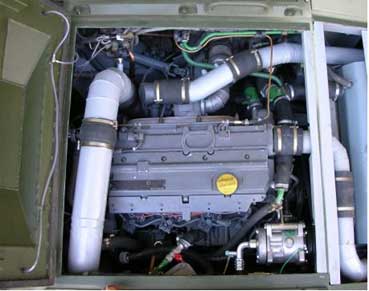

DEUTZ 4M 1013FC engine

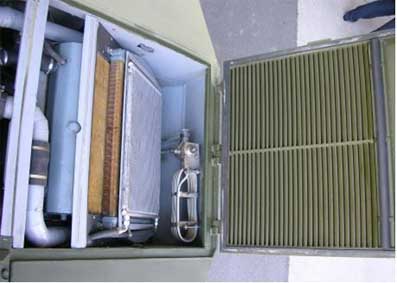

 Installation of radiator and cooler

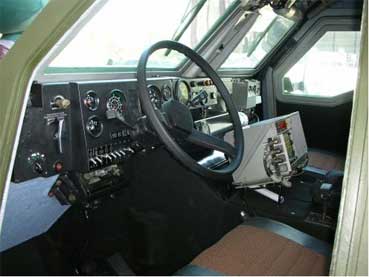

Driver’s workstation

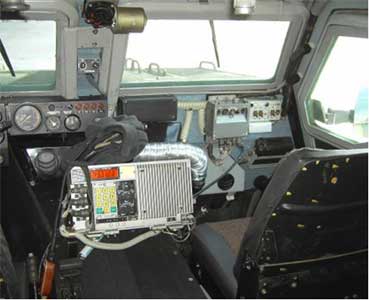

Vehicle commander’s workstation







Gunner’s workstation

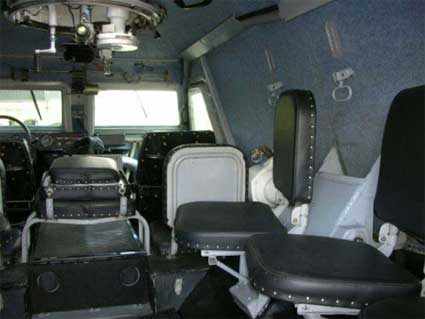

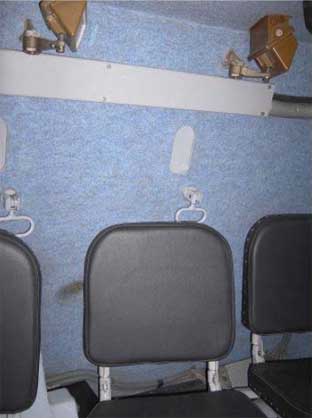

Troopers’ seats




Special equipment

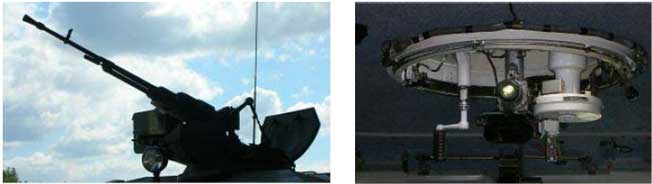

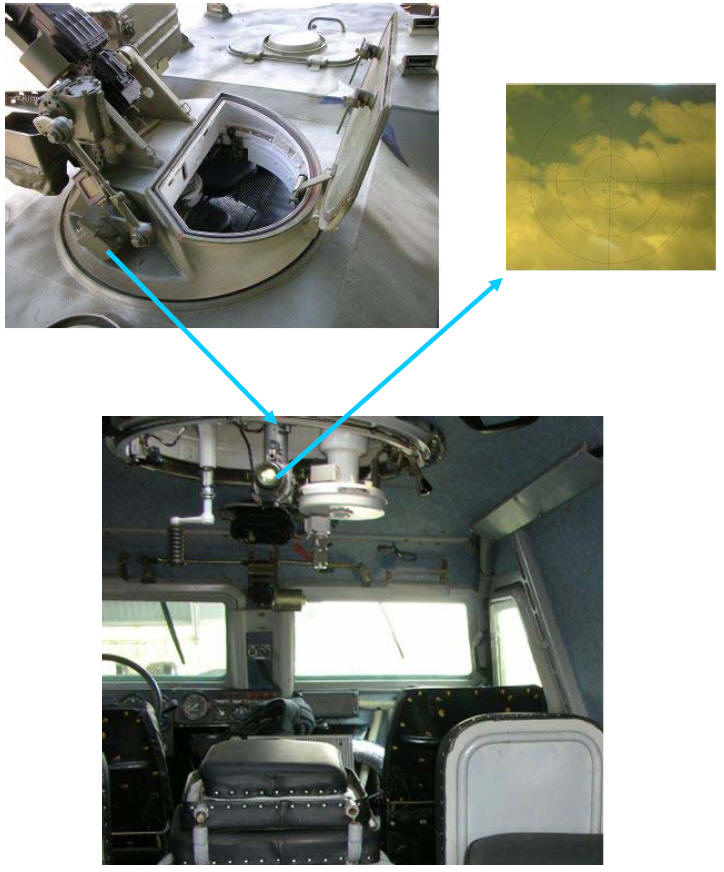

Anti-aircraft machine gun mount

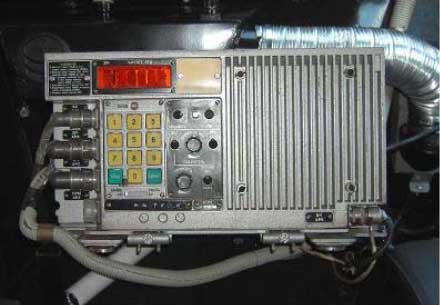

Radio station

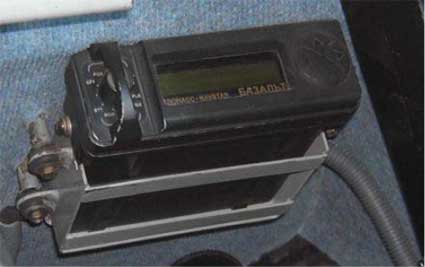

Satellite navigation system

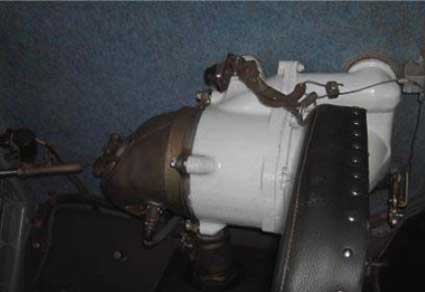

Filtering-ventilation unit

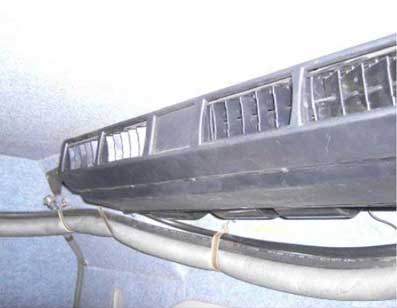

Air conditioner













Specification and photos are not contractual and are subject to verification upon inspection
