ACCOMMODATION VESSEL





TYPE:

Vessel

DESCRIPTION:

Accommodation Vessel

PRICE:

Upon Request

PACKING:

Ex Shipyard





acommodation vessel



From New Manufacture

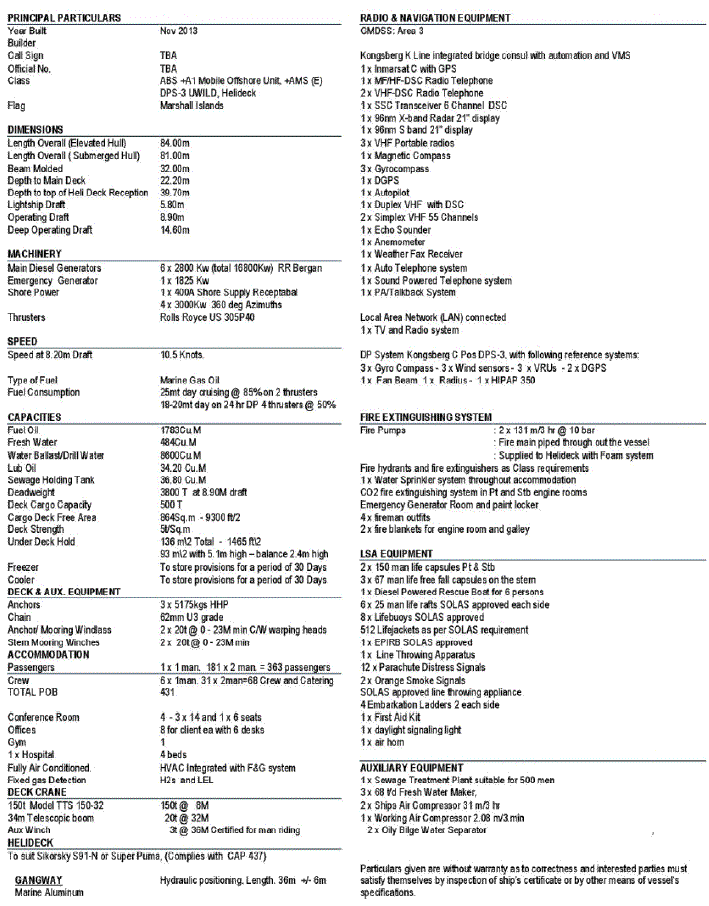

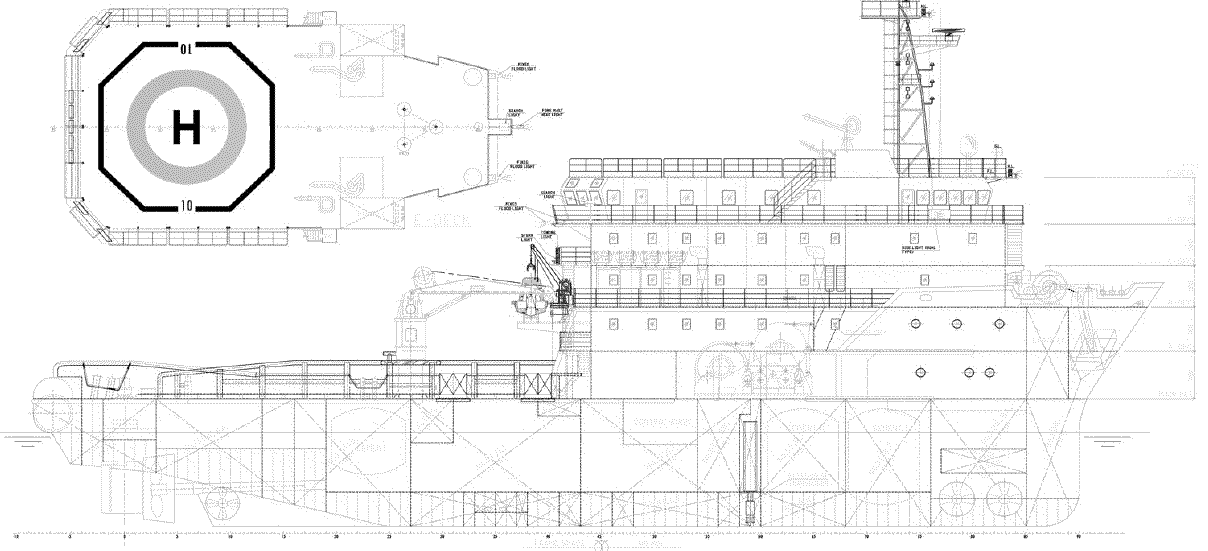

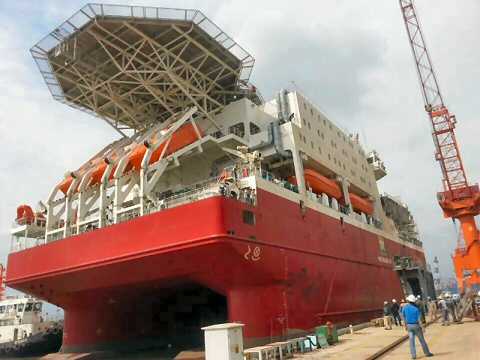

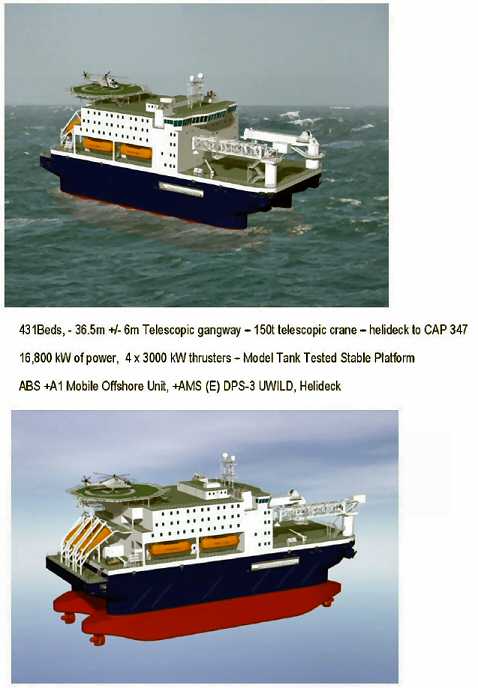

New DP3 Accommodation/Work Vessel for 400 pax


We can develop for sale the following Ultramodern DP 3 Accomodation work Barge (430 beds)

A ultra modern DP3 accomodation work barge(430 beds)

Vessel is a SWATH/SemiSub design with exceptional positioning capabilities and stability.

430 Beds, - 36.5m +/- 6m Telescopic gangway 150t telescopic crane helideck to CAP 347

16,800 kW of power, 4 x 3000 kW thrusters Model Tank Tested Stable Platform

ABS +A1 Mobile Offshore Unit, +AMS (E) DPS-3 UWILD, Helideck.

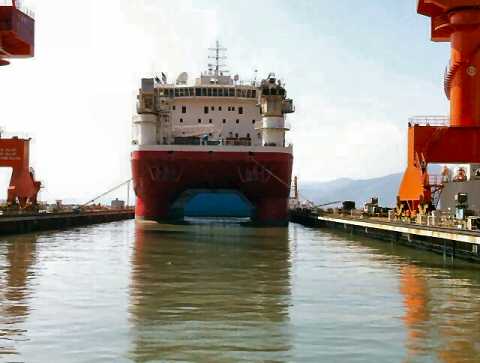

 A sister has recently been delivered to Petrobras for deepwater service in Brazil.

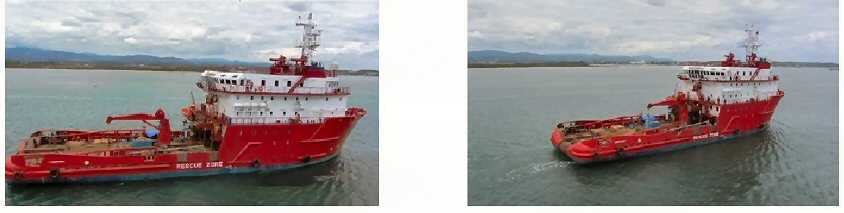

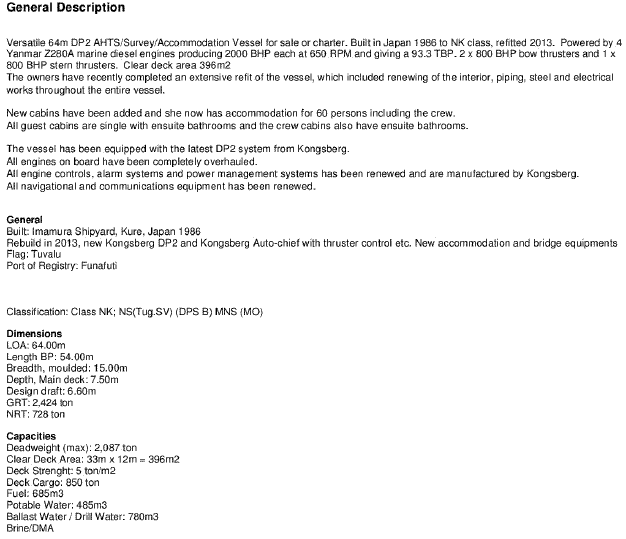

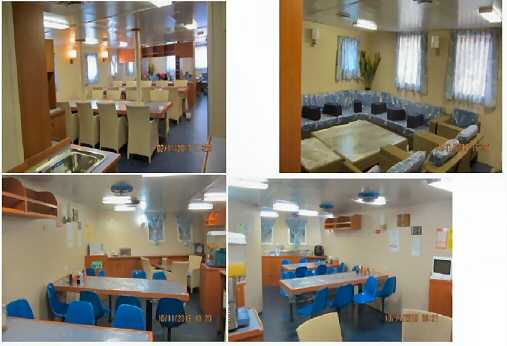

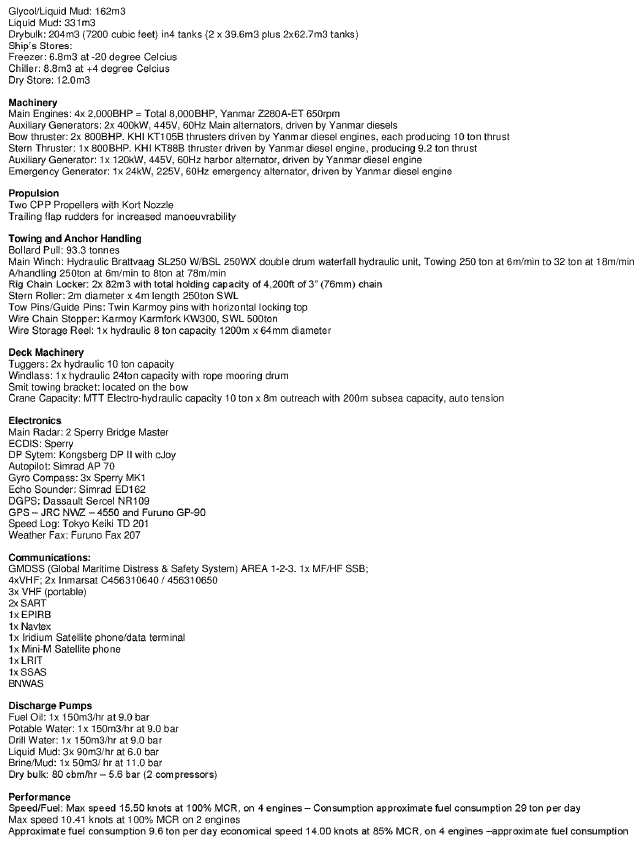

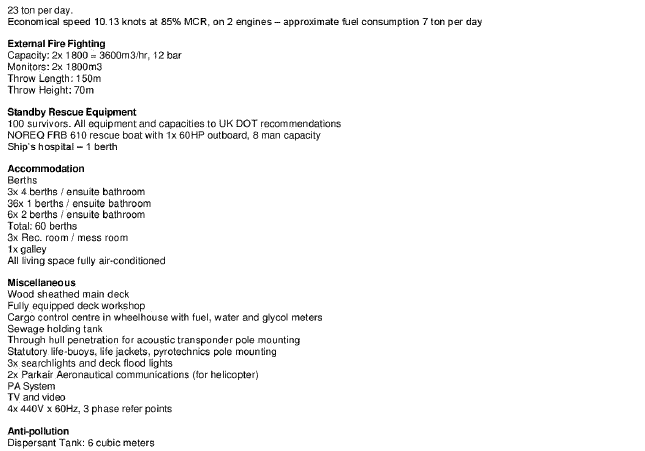

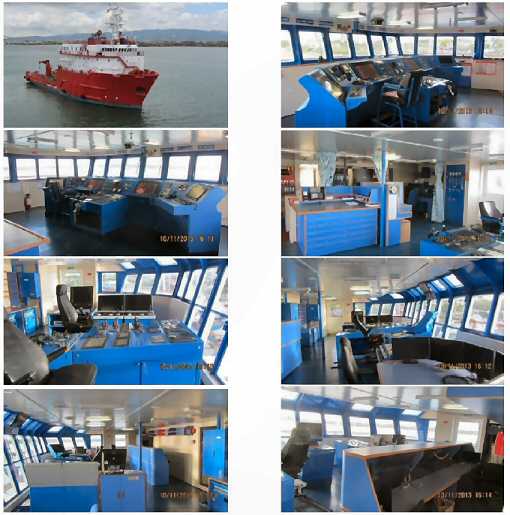

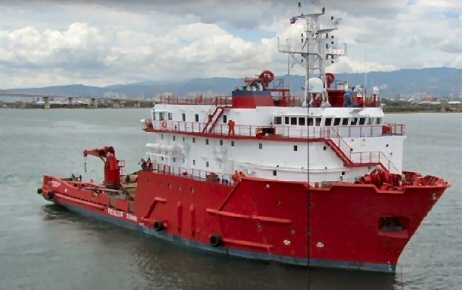

1986 Japan built AHTS/Survey/Accomodation Vessel

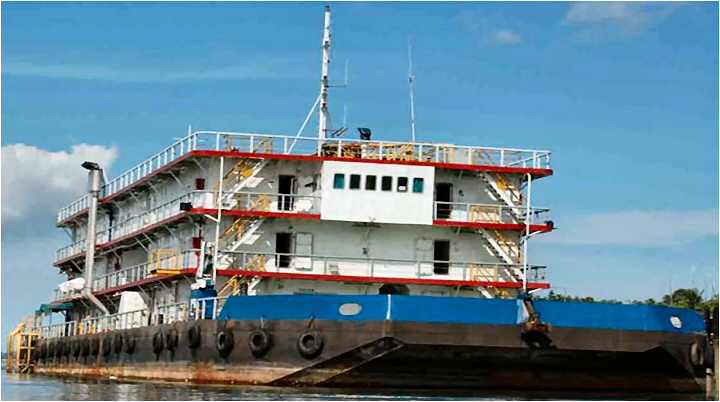

168 Pax Accommodation Barge





This Accommodation work barge was built in 2006 and its Classification Society is BKI (Biro Klasifikasi Indonesia).

It has no crane, but the owner is willing to provide a Crawler Crane as per requested by Charter.

Barge has only one point emergency mooring for shallow water.

Flag: Indonesia

Located in Indonesia



Technical Details


Principal Dimensions and Characteristics



Type of Vessel:

Non-Propelled Accommodation Barge



Length Over All:

70 m

230 feet



Beam:

19.5 m

64 feet



Depth:

4.27 m

14 feet



Draft:

2.44 m

8 feet



Summer Draft:

3.35 m

11 feet



Minimum Free Board:

1.83 m

6 feet



Classification Society:

BKI (Biro Klasifikasi Indonesia)



Year Built:

2006



Accommodations:



  12 single cabins with individual toilet



  20 double cabins with individual toilet



  29 quadruple cabins



  5 x 6 Man share public toilets



Also built for 43 man office which are also spilt to:



  1 single office for site manager



  11 double offices



  5 quadruple offices



Meeting room available for 18 persons



Galley with full marine standard equipment for 200 men



Mess room available for 60 persons



Recreation room available for crew and engineer



Lounge available for VIP



Gymnastic with fitness center standard for 10 men



Praying room available for 50 persons



Radio room for barge master



Clinic:



Located at Main Deck, and equipped with:



  Medical equipment



  Oxygen resuscitator



  Bed for the observation of the patients



  Examination lamp



  Folding stretcher and basket stretcher



  Individual toilet with hot water



  Accommodation for Para-medic

Generators (3)



Make/Model:

Daewoo - Meccalte



Type:

Brashless, synchronous generator



Power:

380 V/ 3 ph / 50 Hz / 450 KVA

Emergency Generator



Make/Model:

Daewoo - Meccalte



Type:

Brashless, synchronous generator



Power:

380 V/ 3 ph / 50 Hz / 245 KVA

Oily Water Separator



1 unit x 15 PPM Separator:

0.25 cubic meters/hr

0.33cubic yards/hr

Sewage Treatment Units (2)





Make/Model:

Hamworthy



Capacity:

150 person/day each



Type:

Self-Compress air

HVAC



Air conditioning system:



(2) System centralize water cooled chiller and distributed by 6 air handling units and 4 fan coil units.



Make/Model:

York / YCA-115



Power:

165 kW

220 hp

Tank Capacities



Ballast:

Full coated tank



Aft: (2)

200 cubic meters x 2

262 cubic yards x 2



FWD: (2)

85 cubic meters x 2

111 cubic yards x 2



Fresh water:

Full coated tank



(2) Each:

237 cubic meters x 2

310 cubic yards x 2



Distributed with 2 unit hydrophore system intergrated to individual water heater on each unit.



Fuel:

285 cubic meters

373 cubic yards

Navigation Equipment



VHF Radio:

2 units



SSB Radio:

1 unit



Navigation Light:

1 set



Navigation Chart Table:

1 unit



Day Light Signal:

1 set



Search Light (1,000 W):

1 unit

Safety Equipment



Solas



Marpol



NLS

Fire Fighting Equipment / Facilities



Fire Pumps:



  1 unit Bomba Ajax Filter Pump. E-EP-100/26; Powered by 75 kW/380 Vac/2,900 RPM electric motor: Capacity: 300 IGPM @ 70 M head (653 m3/hr @ 7 Bar).



  1 unit Bomba Ajax Diesel Fire Pump; Capacity (60 m3/hr @ 7 Bar).



Fire Detection and General System with 32 zone conventional and equipped with:



  Ionization Smoke Detection



  ROR Heat Detection



  Break Glass for manual call point



  Ringing bell surround the Barge



As per SOLAS / Class Requirement

CO2 Flooding System



Located at Main Deck and split into three (3) independent discharge line system for each Generator Room; Pump Room and Emergency Generator Room.



Each discharge system are furnished with CO2 control box, CO2 alarm and rotating light.



Remote actuating discharge valve are provided at each discharge system.

Sprinkle System



Automatic water sprinkle system interfacing with Fire Detection and General Alarm System.



Equipped with:



  2,800 liter (740 gallon) Pressure fresh water tank c/w sight gauge, relief valve, pressure gauge, drain valve.



  Jockey Pump c/w Electric Motor Grundfos CRN 3-21; 2.2 kW, 3 m/hr @ 10.3 bar.



  Automatic Sprinkle Fire Pump; DESMI S100-80-275; 45 kW, 80 m3/hr @ 7 bar.

Life Saving Appliances



Lift Rafts / Life jackets / Work Vests - As required by Flag / Class Society



Life Buoys & MOB - As required by Flag / Class Society



Emergency Light - As required by Flag / Class Society; Powered by 24 Vdc for all Escape Route, Public Room, Fire Detection & General Alarm, Public Address and Radio Communication.



Pyrotechnics - As required by Flag / Class Society

All details on these pages are given in good faith and are believed to be accurate but no warranty of accuracy or completeness or suitability for purpose is either stated or implied. Prices are subject to change without notice.





Specification and photos are not contractual and are subject to verification upon inspection
