82MM ILLUMINATING





TYPE:

Ammunition

DESCRIPTION:

82mm Mortar Round Illuminating

PRICE:

Upon Request

PACKING:

Upon Request

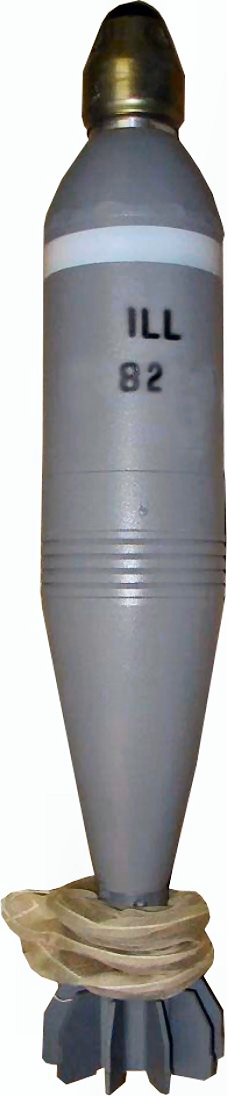

82MM MORTAR ROUND ILLUMINATING

















TECHNICAL CHARACTERISTICS


Flight weight, kg :                                                                                       3.5
Overall length, mm :                                                                                   500
Weight of illuminating pyrotechnical composition, kg :                   0.8
Bursting height, m :                                                                                   300
Max. light intensity, cd:                                                                             not less than 850 000
Average flare burning time, s :                                                                not less than 35
Average rate of flare descent, m.s -1                                                     not more than 4.5
Average maximum gas pressure at shot, bar:                                    not more than 450
Minimum range, m:                                                                                     220
Maximum range                                                                                           2670



Propellant charge: ignition cartridge and three increment charges



Fuze: FTSQ or T - 1 pyrotechnic time and superquick fuze

Packing:
            - 6 pcs of Mortar bombs, each one packed in container, are placed in a  wooden case.
            - Wooden case dimensions : 600 mm x 330mm x 250 mm.
            - Wooden case gross weight: 33 kg
            - Wooden case volume : 0,05 m3



BALLISTICS CHARACTERISTICS:

Increment Charges

Muzzle velocity
m.s-1

Range
M

1

125

220 1000

2

165

360 1920

3

199

500 2670













Specification and photos are not contractual and are subject to verification upon inspection
