From New Manufacture
800CC 4X4 and 2X4 Mini Sports JeepSeeking exclusive importers / dealerships
Sports UTV Off road Jeep High Quality made in China Jeep
These are made with the excellent Chery 800 cc engine for reliability and availability of parts worldwide .
Container: 4pcs /20’GP 11pcs/40’HQ
Size: 3130 x 1565 x 1510mm
Wheelbase: 2180mm 2180mm
Front track: 1360mm 1360mm
Rear track: 1360mm 1360mm
Ground clearance: 240mm
Engine type: Chrey,water-cooled, 4-stroke
Engine capacity: 800cc
Bore x Stroke:72mm x 66.5mm
Corrected compression ratio: 9.5:1
Max output power: 14.9kw/6000rpm
Max torque: 70Nm/3500-4000rpm
Starting: Electric <10s
Ignition: Electric Multipoint Injection
Lubrication: SAE 15W-40/SF
Transmission: 4-MT with reverse
Maximum load: Double seats/250kg
Fuel tank: 24L
Climbing: 25°- 30°
Top speed: 85km/h (or limited as customers requires)
Front/Rear brake: Hydraulic disc, right foot control
Front/Rear tire: AT27X8-14 / AT27X11-14
Final drive: Shaft drive
Carton size: 2950mm x 2115mm x 895mm
Net weight: 550kg
Gross weight: 640kgQuantity: 11pcs/40HQ; 4pcs/20GP

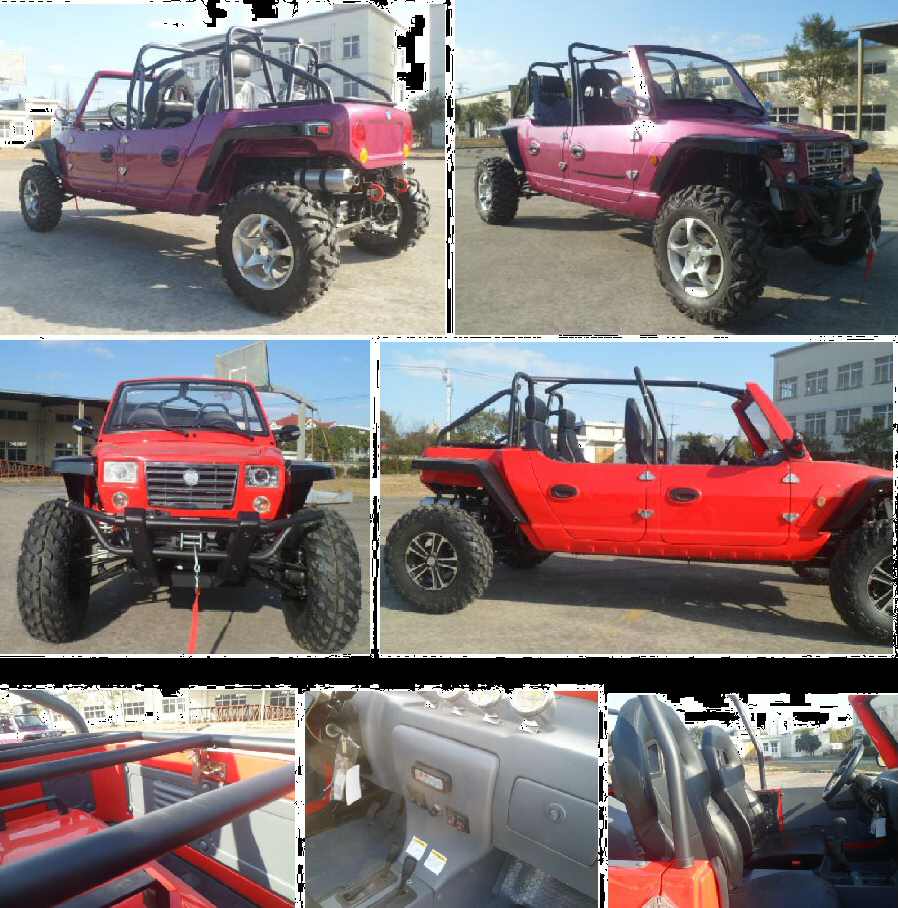

1100cc Jeep (ADILZG1100E-4)
Overall LXWXH : 3750 X 1710 X 1640mm Wheelbase: 2910mm
Front/ Rear Track: 1405mm / 1415mm Ground Clearance : 260mm
Turn Radius : 6800mm
Type :Vertical，4-cylinder, liquid cooled, 4- stroke, DOHC Engine capacity :1083 cm³
Bore × Stroke : 70mmX66.5mm
Corrected compression ratio: 9.5：1 Max out put power :50kw/6000rpm
Max Torque :90Nm/3500-4000rpm
Brake Track : 7m@40KM/h
Top speed :100KM/h (or limited as customers require)
Front / Rear brake:Hydraulic disc,right foot control
Front / Rear tire:AT27X8-14 / AT27X11-14
Front / Rear Suspension :Independent suspension — Dual A Arm
Restraint System:Dual 3-point Harness
Final Drive:Shaft Drive
Front /Rear TIRE PRESSURE: 200kPa / 225kPa
N/G Weight:840 kg/1050kg
Carton dimensions: 3530mmx 2115mmx 895mm
N.W.: 840kg(4x4WD) G.W.:1050kg(4x4WD)
Conveyance: Qty/40= HQ: 8 Qty/40= GP:6 Qty/20= GP:2
Available color: black, white, silver, buick red, ferrari red, purple, blue, orange, yellow.
Specification and photos are not contractual and are subject to verification upon inspection
