7TENT





TYPE:

Tent

DESCRIPTION:

20 people Tent

PRICE:

Upon Request

PACKING:

3 kits

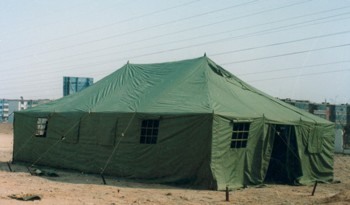

DT-17 GRASS GREEN SINGLE TENT 20 PEOPLE





DT-17 name:  grass green single tent used by 20 people

Dimensions:  800 cm (length) x 480 cm (width) x 320 cm (height)x 160 cm (side height)( 6m2)

Canopy: 28x2/28x2 terylene waterproof canvas

Pole: middle pole Φ25x1.2mm circle steel pipe, side pole Φ25x1.2mm steel pipe

Packaging kits: 3 kits

Weight: 29kg

      Instructions for use: Accommodation for 20 people










EMERGENCY TENTS













MILITARY TENTS





HOUSING TENT 20’W x 40’L x 10’H





Military Tents stock



No pics of the inside



These are still in Original crates never used



FEET: 20’ W x 40’ L x 10’ H = 8,000 CUBIC FEET



METERS: 6.960 W  x 12.192 L x  3.048 H = 258.6421 CUBIC METERS



BUILDING SIZE



20' W x 40' L x 10'- 6"H



                                            ERECTION PROCEDURE & DRAWINGS





        20’ W x 40’ L  Tent Parts List



Description

Quantity

Peak ‐ Center Curve ‐ 11'‐7" Length

11

Leg ‐ Corner Curve ‐ 12'‐1" Length

22

Purlin # 1 ‐ 8' (End Wall Purlin) NOTE: MUST CHECK HOLE DISTANCES

18

Purlin # 2 ‐ 8' (Both Ends are Swedged) NOTE: MUST CHECK HOLE DISTANCES

18

Purlin # 3 ‐ 9'‐3" (Center Purlin)

9

Arch Splice Insert ‐ 1 3/4" x 2 3/4" x 1' Long

22

Angle Clip ‐ 2" x 2" x 3/16" (Installed on Corner Base Plates & Man door to secure Rails)

6

Diagonal Brace ‐ 6'‐4" Long

8

Front End Wall Lower Rail ‐ 8'‐1 1/2" (Installed on each side of personnel door)

2

Rear End Wall Lower Rail ‐

1

Rear End Wall Lower Rail ‐ Swedged

1

Arch Base Plates ‐ 4" x 10" x 3/8" Thick

18

Arch Base Plates ‐ Corners ‐ 4" x 10" x 3/8" Thick w/ Pad Eyes

4

Man Door (3' wide x 6'‐10") & Door Hardware

1

Man Door Header

1

Man Door Header ‐ Swedged

1

Man Door Strips to Sandwich fabric to frame ‐ 1" wide x 6'‐10" Long

2

Man Door Strip to Sandwich fabric to frame ‐ 1" wide x 2'‐10" Long (Across Top)

1

Fabric Connecter Flap Cable (5/16” 7x19 Galvanized Cable @ 40’L each)

2

End Wall Fabric Cable (5/16” 7x19 Galvanized Cable @ 40’L each)

2

Main Cover Fabric Cable (5/16” 7x19 Galvanized Cable @ 40’L each)

2

1 1/3" Diameter Pipe for Pole Pockets located on inside of Main Cover (4 per side)

8

Cable Hardware Kit (Cable clamps ‐ 2 per cable end; double them up for safety)

24

Nut/Bolt/Washer Package (Detailed Below)

1

Exterior Fabric Package(Front & Rear End Walls, Main Cover, Floor & Tent Connector Flap)

1

Interior Fabric Liners (Front & Rear Interior End Walls, Interior Main Cover)

1

Erection & Fabric Floor Grommet Rope (2@ 60’sidewalls +2@30' end walls)

180 ft

Ratchets & Webbing (Used to secure main cover 1 1/3" Diameter Pipe to Lower Purlin)

16

Electrical Package (Detailed on page 6 of this manual and in Electrical Drawing)

1

Erection Tool Kit (Stakes & Guy Ropes)

1

Tent Repair Kit (Double Sided Tape, 12 SQ FT Fabric & Screen, 6 Anchors & 1 Pint Glue)

1



Nut/Bolt/Washer Package List



Location & Description

Size

Quantity

Arch Splice & Base Plate Connection

5/16" x 2 3/4"

66

Purlin to Arch;  Purlin & Diagonal to Arch

5/16” x 5”

99

Purlin, Rail & Man Door Header Splices

5/16” x 2"

36

Front & Rear End Wall Rails (Crimped Ends)

5/16" x 1 1/4"

6

Man Door Header & Strips to sandwich fabric to door frame

Ό” x 1 ½” Self Tappers

28

Base Plate & Door Anchor Bolts & Stakes

5/8" Diameter x 8 1/2" Long

46 each



Please read and understand instructions completely before assembly.

Please layout frame parts and check against parts list to understand each part and its location.



Specification and photos are not contractual and are subject to verification upon inspection
