75 M FPB





TYPE:

Boat

DESCRIPTION:

75 Mtrs Fast patrol Boat

PRICE:

Upon Request

PACKING:

As is, Where is





75 mtrs fast patrol boat



Subject Unsold or Market Withdrawal

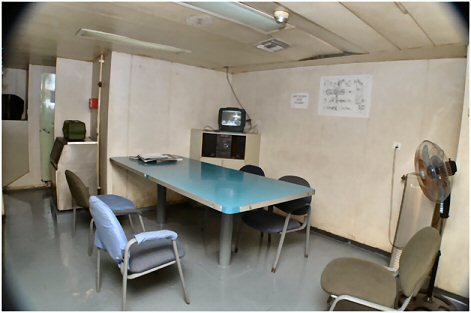

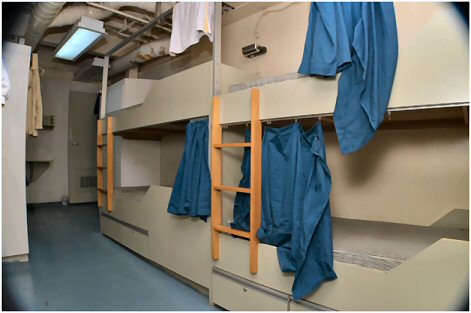

Crew Accommodation                                                                               Crew Dining Area

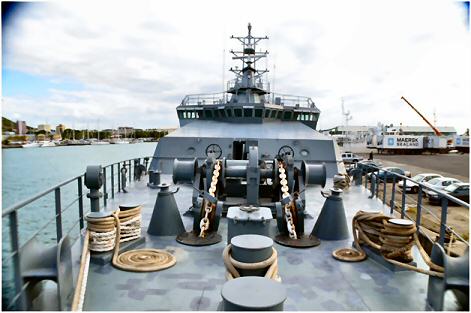

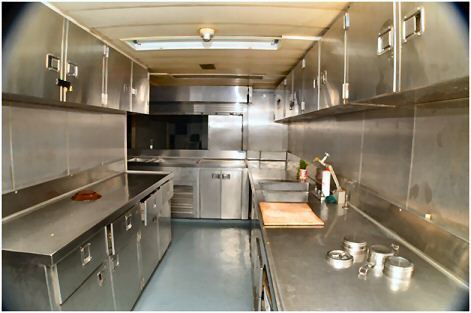

FOXLE                                                                                                                  GALLEY

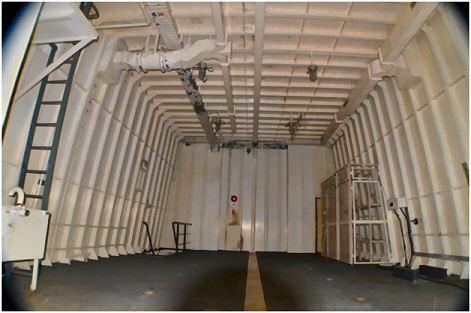

HANGAR                                                                                                    MCR

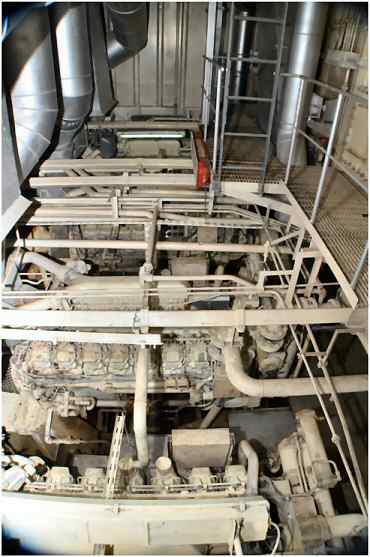

Main Engine Room                                                                                   Main Engine

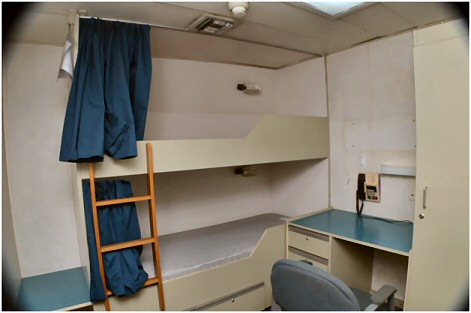

Officers Room                                                                                                 Super Strucure

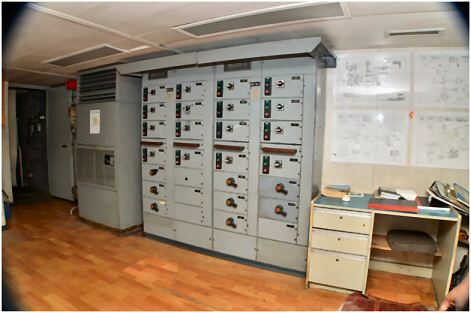

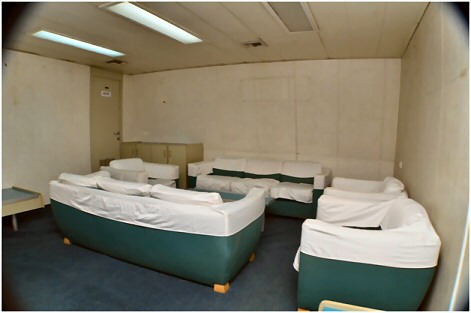

Switchboard                                                                                                          Ward Room

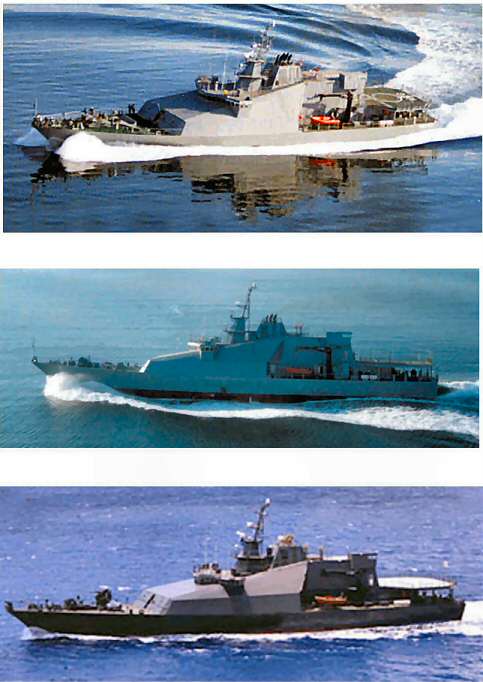

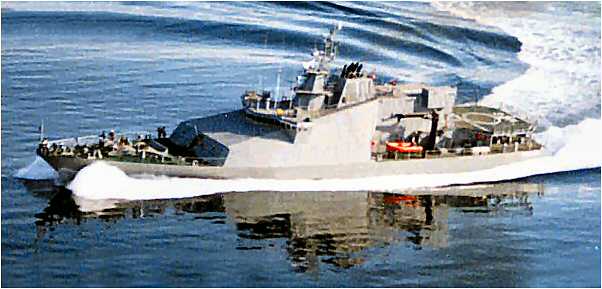

This is a modern high tech military vessel designed for a wide range of multi-purpose modes of operation. It has excellent speed of 18 knots cruise and 22 knots max and has up to 8,000 NM range.



It is the perfect size for coastal and offshore operations, being able to accommodate a large number of crew and additional personnel, and is able to stay at sea for at least 30 days. In addition the vessel has a large helipad located aft which gives the vessel tremendous search and rescue and surveillance capabilities as well as a long distance connection to a land based command center.

The vessel was constructed by a well respected ISO certified military builder. This is a fantastic opportunity to acquire an advanced fast multi-purpose patrol vessel at a small fraction of its build cost.

This vessel is available for immediate sale "as is" "where is". The vessel has been unused for several years and requires some maintenance and re-commissioning to be done. A list of the estimated work is available upon request.

This 246' - 75 meters Patrol Vessel is the most capable military ship available on the world market without export licensing.



Military Patrol



Builder:

Custom

Model:

Military Patrol

Year constructed:

1996

Guests:

79

No. Of engines:

4

Engine model:

CAT 3516

Engine power:

8000 HP

Crusing Speed:

19 Knots

Maximum Speed:

22 Knots

Nominal length:

75m

Length over all:

246'

Length at waterline:

70.56m

Beam:

14m

Maximum draft:

3.9m

Hull material:

Steel

Hull colour:

Grey

Displacement:

1600 tons



Engine(s)



4 x CAT 3516, 8000 kW
Installed power = 11,600 kW
Range at 19 Knots = 8,000 NM
Supplies for 30 days

Generators, 3 x CAT, 500 kW; 1 x Emergency





Construction



The ship was designed as a military vessel for patrol and protection, search and rescue, control of marine resources, towing and firefighting operations. The builder is ISO-9001:2000 Certifed.

ADDITIONAL SPECIFICATION
Steel hull and superstructure
Depth to #1 Deck = 6.80 m



Accommodation



Complement of 57
Pilots, 2
Police detachment acc., 20



DESIGNER                              WESTERN CANADA MARINE GROUP – PDA

BUILDER                                 ASMAR SHIPYARD TALCAHUANO – CHILE

YEAR BUILT                           1996 – LAUNCHED DECEMBER 1995

MATERIAL                               STEEL

LOA                                           75 METRES

BREADTH (MOULDED)       14 METRES

DEPTH (MOULDED)             6.8 METRES

DRAUGHT                               3.9 METRES

DISPLACEMENT                    1650 TONNES

APPOINTED SERVICE         OFFSHORE PATROL VESSEL

ARMAMENT                             40/60 GUN AND LIGHT MACHINE GUNS (Vessel being sold without  Weapons and weapon systems)

NUMBER OF ENGINES         4 X CATERPILLAR PROPULSION ENGINES

DESIGNED SPEED                 22 KNOTS – CRUISING 19 KNOTS

ENDURANCE                           8000 NAUTICAL MILES -19 KNOTS

CREW CAPACITY                   62+



MACHINERY PROPULSION



PORT SIDE INBOARD                         CATERPILLAR 3516   V16 DIESEL SER. NO. 4MJ168 -  3744 HRS

PORTSIDE OUTBOARD                      CATERPILLAR 3516  V16 DIESEL SER. NO. 4MJ171 -  3717 HRS

STB SIDE INBOARD                            CATERPILLAR 3516  V16 DIESEL   SER. NO. 4MJ170 -  4113 HRS

STB SIDE OUTBOARD                        CATERPILLAR 3516  V16 DIESEL   SER. NO. 4MJ169 -  4047 HRS



GENERATORS



GENERATOR 1                                   CATERPILLAR 3412 DIESEL - SER.NO. 81Z17445 - 3726 HRS

GENERATOR 2                                   CATERPILAR 3412   DIESEL  - SER.NO. 81Z17434 - 4010 HRS

GENERATOR 3                                   CATERPILLAR 3412 DIESEL - SER. NO. 81Z17402- 4578 HRS

EMERGENCY GEN.                           CATERPILLAR  DIESEL - 143 HRS



FITTED MAIN EQUIPMENT



BOW THRUSTER                         ELECTRIC                                            1

EMERGENCY FIRE PUMP         ELECTRIC                                            1

WINDLASS POWER PACK        HYDRAULIC                                         1

SANITARY SYSTEMS                  ELECTRIC/HYDROPHORE              2

FRESH WATER SYSTEMS         ELECTIC/HYDROPHORE                 2

HOT FRESH WATER SYSTEM  ELECTRIC/CALORIFIERS                1

SEWAGE TREATMENT PLANT ELECTRIC PUMPS                             2

CHILLER PUMP SYSTEM           ELECTRIC                                             2

MAIN FIRE PUMP                          CENTRIFUGAL ELECTRIC               1

BILGE &BALLAST PUMPS         ELECTRIC                                             2

DAILY BILGE PUMP                      ELECTRIC                                             1

FIRE MONITOR PUMP                  CENTRIGUGAL M. ENG                     1

REDUCTION GEARBOX               VOLDA – ACG TS 1100                     2

FUEL OIL PURIFIER                      HUZHOU MACHINE WORKS           2

FUEL OIL TRANSFER PUMP      ELECTRIC                                           1

SLUDGE TRANSFER PUMP       ELECTRIC                                            1

OILY WATER SEPARATOR         ELECTRIC                                            1

WATERTIGHT DOOR SYSTEMSHYDRAULIC                                         2

DECOMPRESSION CHAMBER   ELECTRIC COMPRESSOR             1

AVGAS FUELLING SYSTEM        COMPLETE FUELLING STATION  1

REMOTE STEERING SYSTEM     HYDRAULIC PACK                            1

MOORING CAPSTANS POOP       HYDRAULIC                                        2

CRANES (NORTH AMERICAN)    HYDRAULIC                                        2

AIR COMPRESSORS                      ELECTRIC                                           2

REFRIGERATION SYSTEMS        ELECTRIC                                           2

AIR CONDITION UNITS                  ELECTRIC                                           3

R.O PLANT                                                                                                       2



NAVIGATION SYSTEMS



RADIO DIRECTION FINDER    FURUNO FD 160 SCANNER

2182 MONITOR                            SAILOR TYPE R101

WIND SPEED/DIRECTION        A.M YOUNG

ECHO SOUNDER                        FURUNO FE-880

RADAR 1                                       KELVIN HUGHES NUCLEUS 5000T

VHF DSC                                       SAILOR RM2042

VHF                                                 SAILOR RT2048

HF RECEIVER SYSTEM            COM  IC-R71A

COMPLETE GMDSS STATION SAILOR COMPACT

COMPACT GMDSS ALARM     SAILOR C2149

GPS                                                THRIMBLE NT200

AUTO PILOT                                 COMNAV MARINE 2001

STEERING SYSTEM                   JASTRAM 14510

BOWTRUSTER                            THRUSTMASTER

DIGITAL DEPTH INDICATOR   FURUNO ED222

DOPPLER SPEED LOG             FURUNO DS-80

ENGINE COMBINATORS           PMC

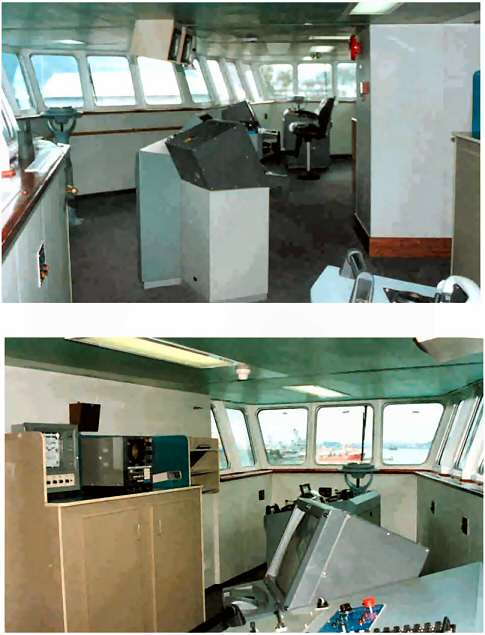

MACHINERY AND STEERING CONTROLS ARE REPEATED ON A STARBOARD BRIDGE CONSOLE

MACHINERY AND STEERING CONTROLS ARE REPEATED ON A PORT BRIDGE CONSOLE

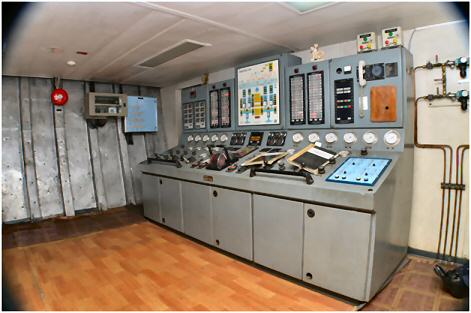

MACHINERY CONTROL ROOM



COMPREHENSIVE MIMIC CONTROL STATION                         PRIME MOVER CONTROLS

INDIVIDUAL ALARM ANNUNCIATOR FOR EACH ENGINE     PRIME MOVER CONTROLS

ENGINE COMBINATORS                                                                  PRIME MOVER CONTROLS

COMPLETE ELECTRICAL CONTROL PANEL                            FINNING CUSTOM CONTROL

SHORE POWER SYNCHRONISATION SYSTEM                        FINNING CUSTOM  CONTROL

COMPARTMENTAL FUSE ISOLATING PANEL                          KLOCKNER-MOELLER







Specification and photos are not contractual and are subject to verification upon inspection
