55 PAX LUX





TYPE:

Bus

DESCRIPTION:

55 Pax Lux Bus

PRICE:

Upon Request

PACKING:

Ex Works






55 pax lux bus



From New Manufacture





TECHNICAL SPECIFICATION



4X2 Luxury Tourist bus with 55 seats



Vehicle Type： PK6128SH3



Overall Dimension:


L×W×H: 11950×2550×3820 mm


Wheelbase: 6250 MM


Fuel Tank Capacity: 300 L


Max Speed: ≥120km/h


Seat Capacity: 55(53+1+1)



SYSTEM

PART NAME

DESCRIPTION

CHASSIS

Engine

Dongfeng Cummins ISLE340-30 （EURO 3）

8.4L，

250KW（340PS）/2100rpm，

1425N.m/1300rpm

Dongfeng Cummins ISLE340-30 （EURO 3）, 8.4L，

max power: 250KW（340PS）/2100rpm，

max torque: 1425N.m/1300rpm

CHASSIS

Clutch

Dry single plate with cushioning springs, hydraulic with air assisted

CHASSIS



Transmission



Manual, six gear,QJS6-160

CHASSIS

Rear axle

13000KG



CHASSIS



Suspension



Leaf spring suspension? Bei Jing Corpco ASB140+R130A，with chassis lifting function



CHASSIS



Front axle



6500KG, reverse elliot, I-beam



CHASSIS



Tyre



80R22.5 tubeless



CHASSIS



Steering system



Hydraulically assisted



CHASSIS



Brake system



Full air brake, drum type



CHASSIS



Retard



brand, TERCA



CHASSIS



ABS



Equipped



BODY



Wheel cover



Stainless steel wheel house



BODY



Driver position



RHD or LHD



BODY



Floor mat



Green point wear resistant floor paneling



BODY

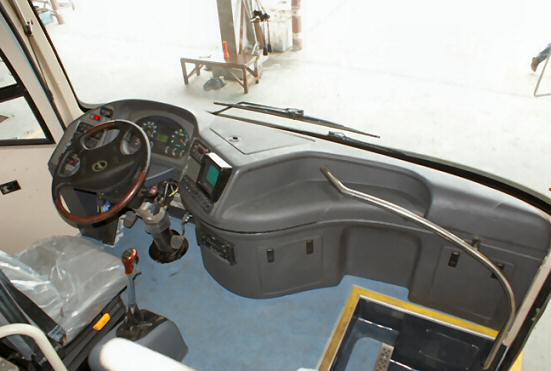

Dashboard



Standard type luxurious



BODY



Side window glass



Privacy glass, the last one from rear is half-sliding windows, rest are closed tempered glass



BODY



Inner luggage rack



Luxury luggage rack with reading lamp A/C wind exit and integral strip type lamp



BODY



Luggage compartment



Max. space 10.4 m3



BODY



Luggage compartment flap



Manual luggage compartment door, sealed around



BODY



Top hatch and ventilator



2 set of top hatch with electric ventilator



BODY



Passenger door



Aluminum remote control outside-sealed pneumatic outside-swing passenger door (glass on the bellowing part)



BODY



Passenger door



Not equipment



BODY



Driver seat



Fur material Tian Cheng SG-8 shake-absorber, adjustable driver seat



BODY



Guide seat



Equipment



BODY

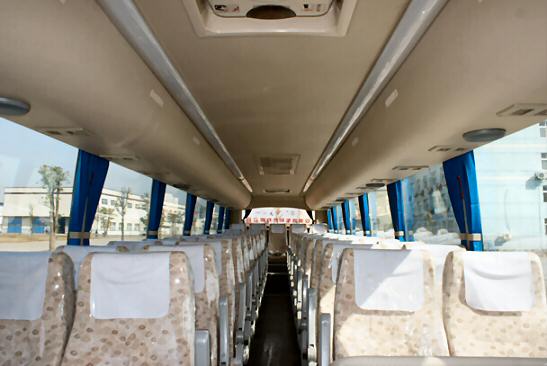

Passenger seat



53，Back adjustable，without transverse moving, without step



BODY



Front sun visor



Front windscreen: double, manual sun visor

Beside driver: Gray foldable nylon curtain



BODY



Safety belt



Driver seat with 3 points seat belt



BODY



Toilet



Not equipment



BODY



Curtain



Equipped



BODY



Painting



ICI paint



BODY



Color & pattern



Equipped



BODY



Vehicle ID



English vehicle ID



ELECTRICAL EQUIPMENT



Alterlation



Prestolite alternator



ELECTRICAL EQUIPMENT



Battery



195Ah*2



ELECTRICAL EQUIPMENT



Tachograph



Equipment



ELECTRICAL EQUIPMENT



Digital clock



Equipment



ELECTRICAL EQUIPMENT



High position brake lamp



Equipment



ELECTRICAL EQUIPMENT



Audio-vision system



17’ Manual Lcd + Single Disc DVD＋wireless microphone



ELECTRICAL EQUIPMENT



Middle monitor



Not equipment



ELECTRICAL EQUIPMENT



Reversing monitor



Black-white backup monitor



ELECTRICAL EQUIPMENT



Heater



Wall-hang heater + Heater defrost



ELECTRICAL EQUIPMENT



A/C



Chinese brand 30000 kcal/h, BITZER，Single cold



ELECTRICAL EQUIPMENT



Rear view mirror



Wide vision electronic rear view mirror with defroster



ELECTRICAL EQUIPMENT



Fire fighting system for engine compartment



Equipped



ELECTRICAL EQUIPMENT



Fridge



Not equipment



ELECTRICAL EQUIPMENT



Water machine



Not equipment





Specification and photos are not contractual and are subject to verification upon inspection
