OFFER#

50 METERS FPB

TYPE:	Boat
DESCRIPTION:	3 x 50 Meters Fast Patrol Boat
PRICE:	Upon Reqyest
PACKING:	As is, Where is

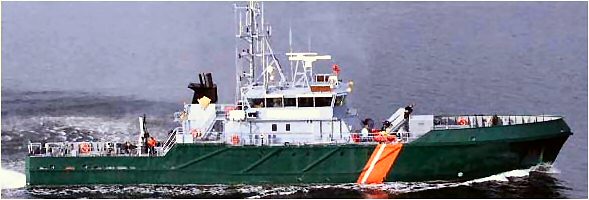

3 x 50 meters fast patrol boat

Subject unsold or market withdrawal

These three ships are suited and equipped for patrolling, escort duty, marine security, SAR and other related activities in coastal areas and at sea.

They have been in use as Guard Patrol since their delivery in 1999, 2002 and 2004.

The vessels have been highly maintained and surveyed in accordance with their government military instructions and procedures.

They each have 9 cabins and 18 bunks.

The vessels have a service speed of 21-22 knots. They are highly maneuverable due to their large azimuth bow thrusters.

These are the best military patrol vessels available in their size on the world market.

Specifications

Vessel type:	Patrol
Model:	Military Patrol
Year constructed:	2002
No. Of engines:	2
Engine model:	Wartsila
Fuel type:	Diesel
Crusing Speed:	21 Knots
Length over all:	163'
Hull material:	Steel

Engine(s)

Main engines:

1 Vessel: 2×Cummins Wärtsilä 16V170 diesels (Note: one engine is damaged) 2288 kW

2 Vessels, each: 2×Wärtsilä 12V200 diesels á 2700 kW / Generators 2 kpl Sisu Diesel, Valmet 612 DSJGM diesels.

Equipment: Retractable azimuth bow thruster, crane, water cannon, etc.

Engines and machinery

•Main engines:
•Vessel #1: 2 * Cummins Wärtsilä 16V170 diesels, 2288 kW
•Vessels #2 & 3: 2 × Wärtsilä 12V200 diesels 2700 kW

•Generators 2 kpl Sisu Diesel, Valmet 612 DSJGM diesels.
•Emergency engine Sisu Diesel, Valmet 320 DGK-AOS 50 diesel.
•Azimuth engine Scania DS 11 diesel.
•Engine control system Lyngsö Marine UCS 2100
•Control pitch propeller Berg 630 HX/4
•Remote control system ERC 2000-2C
•Steering sytem: Ulstein Tennfjord 2x SR 562

Construction

Three Vessels Available:

LOA: 162’, 163’, 164’

Breadth: 7.5 m

Draught: 3.7 m / 4.4 m

Speed: 20 - 21+ knots

Displacement (light): 400 t

Built according to class DNV 1A1, ICE 1C, E0, OILREC, TUG - no classification certificate, not in class. Annually surveyed for safety by officials in their own organization.

Main tasks offshore and coastal surveillance and SAR - tasks.

Two 4 blade Pitch Control propellers with a diameter of 2,2 meters

Can operate with bow Azimuth propeller only.

Additional MOB- and patrol RIB with stern docking arrangement.

Accommodation

Number of Crew

Normally 11, maximum 18.

Navigation Equipment

Bridge and equipment

•2 x Raytheon Pathfinder radar (3 ja 10 cm scales).
•Promaren elektroc chart system
•2 x Gyro compassi Anschutz 22
•2 x DGPS
•DP system
•AIS system
•Satellite phone
•Auto pilot steering system
•A3 radio station
•Flight radio

Multipurpose 50m ships.pdf

Specification and photos are not contractual and are subject to verification upon inspection
