7 x sets C280-16 Units (50Hz) With Parts



EQUIPMENT OFFERING

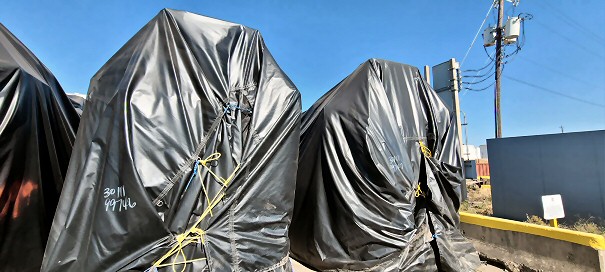

7 CAT C-280 Units with Serial Numbers NKB00174 through NKB00180. Units have the following arrangement numbers:

Engine Arrangement # 297-2552, Kato Generator S/N 22765-02, Generator Arrangement # 352-5665.



Additional information can be found in Exhibit “A” – C280 Full Report.



Specifications are as follows:

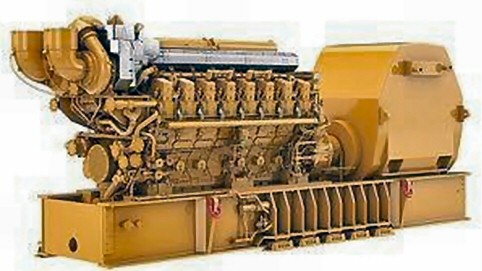

7 each Caterpillar C-280-16 Offshore Power Modules rated 5200KW @ 1000RPM (50HZ Units)



AIR INLET SYSTEM

After cooler core, fresh water, corrosion resistant coated (air side), air inlet shutoff, turbocharger, engine oil lubricated air inlet adapter (90 Deg), rear accessory module and air cleaners - custom accessory module designed to straddle the generator and base. The accessory module is designed to mount two (2) vertical air cleaner housings, and GMS start/stop panel and junction box



CONTROL SYSTEM

Caterpillar ADEM III Electronic Engine Control, LH with electronic unit injector fuel system, rigid wiring harness, governor conversion - converts engine to direct rack controls requiring 0 to 200ma.Requires 24V DC 10 AMP Continuous, 20 amp Intermittent, clean electrical power



COOLING SYSTEM

Single/Combined Circuit For treated fresh water. The cylinder block/head/turbocharger  cooling circuit is in series with the after cooler/oil cooler circuit. Includes jacket water and lubricating oil temperature regulators and two external circuit connections. Expansion Tank- High Volume Shipped loose for customer mounting. Engine coolant water drains Plate type oil cooler, remote. Includes regulator and ANSI connections. Provides 70C oil to the engine. Three bundle oil cooler. Multiple element, full modulating temperature regulator in Caterpillar designed regulator housing. Regulator housing connects directly to Caterpillar expansion tank. Custom Cooling System Includes supply & mounting of a titanium AC/OC circuit heat exchanger and a titanium JW circuit heat exchanger, custom accessory module mounted to the front of the base assembly for shipping purposes. Once in place, module will disconnect from the base to isolate module. Titanium heat exchangers are sized to meet EPA Marine Tier II emissions by providing 32degree C AC/OC engine inlet water with 27-degree C ambient seawater.



EXHAUST SYSTEM

Dry, gas tight, exhaust manifold; (2) 18in flexible exhaust fitting (shipped loose), (2) 18in exhaust flange (shipped loose)





FLYWHEEL-HIGH INERTIA

Flywheel has roughly twice the mass moment of inertia as compared to the standard flywheel. Assists in meeting certain transient response criteria. The flywheel has thirty-two 7/8-9-2B THD holes on a 1025 mm (40.35 in.) diameter bolt circle. Flywheel & coupling guards.



FUEL SYSTEM

Filter, fuel, duplex; flex fuel outlet connection, flex fuel inlet connection, manual fuel priming pump, fuel cooler (plate type). To be installed on the base next to the engine coupling.



LUBRICATION SYSTEM

Centrifugal oil filters with single shutoff. Service side engine mounted on cylinder block inspection covers. Includes installed oil lines and single shutoff valve. Filters centrifuge bypass oil from the main lubricating oil pump. Can be serviced with the engine running. Three filters included. Oil filler and dipstick valve, oil pressure regulating valves, crankcase explosion relief. The total engine system suitable for tilt requirement 15 deg. static pitch and 22.5 deg. dynamic pitch. Duplex oil filter dual housing, six-element system using Caterpillar filter elements.  Filter elements will be accessible from the service side of the engine. Drain valves and element racks are provided for ease of service. Continuous Pre-lube Pump mounted to engine base. Motor included. Includes 24 VDC motor starter. Pump Voltage Requires: 24 VDC and customer-supplied power source. Includes engine mounted pilot valve to maintain correct pre-lubrication oil level within the engine and level detection to disable starter if pre-lubrication oil level becomes insufficient. Drain group provides oil drain for use with oil mist detector. Oil Mist Detector Dry Sump - includes oil pump, sump tank & lines. 15 deg. tilt capability.



STARTER SYSTEM

TDI Turbine Starting System - includes (2) TDI turbine starters, jacket water heater, engine starting aid for operation down to 0 C (32 F). Requires Customer-supplied power source.



GENERAL

Damper Guard - Constructed of perforated steel for strength as well as for adequate airflow for cooling of damper. Engine Lifting Eyes. Manual Barring Device With a 50:1 gear reduction. Can be used with electric or air drills.



GENSET MONITORING SYSTEM

The GMS (Genset Monitoring System) provides protection, monitoring, and control for a single 3600 diesel generator set utilizing a PLC (programmable logic controller) based system housed in a NEMA 4 (IP66) enclosure. All critical shutdowns have both relay based and PLC based protection. Sensors are wired directly to the GMS control panel. Use of the GMS eliminates the need for a separate gauge panel and annunciator panel. Requires 24 VDC power and control air pressure.



GMS PROTECTION SYSTEM ADDITIONS

Includes the following:

1                ea. - Generator Cooling System Flow Switch 1 ea. - Generator Lube Oil Pressure Contactor

2                ea. - Generator water temperature RTD Additional monitoring parameters:

Generator bearing vibration alarm, Generator water flow, Generator low oil pressure alarm and shutoff, Generator leak detector, TEWAC water temperature alarm (2).



MOUNTING SYSTEM

Includes Offshore rigid 3-point base.



Isolator weld plates - Includes (8) isolator weld plates for connection of isolators to customer foundation.  The weld plates ease in the genset package installation. The weld plates have threaded holes which match the isolator hole pattern.  The weld plates are to be welded to the customer foundation at the time of package installation. Weld plates are shipped loose.



Vertical restraint Isolators - provides (8) isolators for generator set base in seismic zones and drill rig with +/- 1.5G vertical restraint and +/1 3G horizontal restraint under low cycle conditions.  Shipped loose.

Generator is of independent Two Bearing design, with shaft extension suitable for direct drive.

The following features accessories are included:

•        PMG (300% SC 10 Sec) for Regulator Power

•        Stand-Off Terminal Connectors, mounted in outlet box.

•        Double Tube copper-nickel air to water heat exchanger w/water leak detector.

•        Special frame for water-cooled totally enclosed alternators. (6) 100 ohm RTD's embedded in stator windings for temperature monitoring, 2 per phase.

•        Formed Stator Coils with100% solid epoxy vacuum pressure impregnation of windings, followed with an epoxy overspray including rotor and stator iron.

•        Diode failure Detector (Kato) which detects shorted and open diodes by means of monitoring exciter field current. (2) 100 ohm RTD's installed in bearing housing for temperature monitoring (1 per bearing)

•        Commercial Space Heater

•        Shaft driven oil lubrication pump for bearings. Fittings and oil system not in Kato's scope.

•        Two vibration detectors (One per bearing)

•        Provisions for forced lubrication on drive and opposite drive end. All fittings and connections by others.

•        Suitable for tilt requirement of 15° Static Pitch and 22.5° Dynamic Pitch.

•        Generator suitable for 10% overload for 1 hour once every 12 hours.

•        Torsional Coupling Generator

•        Lube Module & Lines Group. Includes one (1) forced generator lube system. The system operates with a mechanical pump driven by the generator as the primary lubricant circulation supply for forced lubrication of both front and rear generator bearings.  A lubrication module with an electric driven, 480 V, 3 phase, 50 Hz, pump is provided for pre-lubrication of the generator bearings prior to startup and operated in the condition that the mechanical pump fails.

•        Lubrication Module with Electric Driven Pump the module will include a tank, pump, heat exchanger, oil filter, and flow divider to send the correct flow to each bearing.  A flow rate of 19 LPM (5 GPM) of heating water at 34° C (93° F) will need to be supplied by our jacket water circuit for the heat exchanger. This includes the wiring of the unit, the motor starter, 24VDC controls, NEMA 4 enclosure, mounting bracket for mounting the unit to the base, the lines group for connecting to the generator bearings, and labor to install the unit.  NEMA 4 enclosure may be combined with other options to provide a single enclosure to contain motor starters and connections for other options requiring 480 V power supply.

•        Redundant Air Prelube Pump Includes a redundant air prelube pump for black start conditions. The air pre-lube pump will take suction from the same sump as the electric driven & mechanical driven pumps.

•        The following sensors are included: Lube tank low level switch, Lube tank temperature sensor (high temperature alarm), Flow Switch

•        Mechanical Pump Lines. Included is one (1) lot of additional lines groups provided by CAT to allow circulation of lubricating oil by mechanical pump. The mechanical pump is supplied by the generator manufacturer.

TESTING, DOCUMENTATION  & CERTIFICATION

QTY (1) - ABS PACKAGE CERTIFICATION

ABS package certification for the complete engine/generator package as supplied by Caterpillar.

Package to include the following:

ABS Design Review (as required by ABS)

ABS Factory Survey (as required by ABS)

ABS IMO Certification & Documentation

Testing (as required by ABS)

Documentation Management & Submittal to ABS

QTY (1) – DRAWING PACKAGE

Includes (4) paper sets & (1) electronic set on CD & includes the following:

•        Package General Arrangement Drawings – includes (5) views of the engine/package configuration being quoted. Views provided are right, front, rear, left & top. Also includes installation footprint, customer connection details and ship loose components associated with the engine/package.

•        Wiring Diagram – includes electrical wiring diagrams for Caterpillar-supplied  systems on the package. Includes engine, generator & controls.

•        Piping & Instrumentation Diagrams – includes schematic diagrams of cooling, lubrication, fuel, starting & mechanical instrumentation systems including customer connection sizes.



Specification and photos are not contractual and are subject to verification upon inspection
