40MM ROCKET





TYPE:

Ammunition

DESCRIPTION:

40mm Rocket RF-MA

PRICE:

Upon Request

PACKING:

See Below

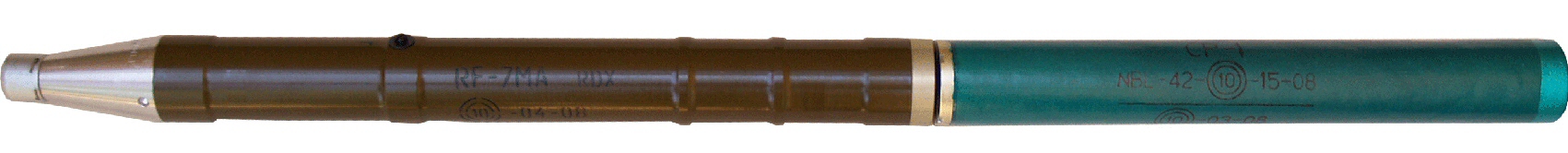

40MM ROCKET RF-7MA













40 mm Round RF-7MA with improved Fragmentation Grenade

Advanced upgrade of OG round for all ATGL-L and RPG-7



The Round RF-7MA is designed for destroying the enemy manpower and weapon positions in the open, in trenches, in field shelters, in light-armoured vehicles , and in non-armoured materiel by direct fire on the embrasures of field fortifications and within urban areas.

RF-7MA features supreme efficiency in comparison with the OG round for RPG-7 due to the elongation of its Grenade.

With increased fragmentation (over 1250 fragments), point-detonating fuze with super-quick and inertia (non-ricochet) actions, higher accuracy and low dispersion, the Round RF-7MA is the ultimate upgrade of the well proven OG.



MAIN TECHNICAL CHARACTERISTICS



Round RF-7MA

Max. Range: 1000 m
Muzzle velocity at (15°): 152 m/s
Weight: 1.75 kg
Temparature range: Minus 40°C to + 50°C

Grenade GF-7MA

Caliber: 40mm
Lenght: 437mm
Weight: 1.38kg
Type of bursting charge: RDX
Bursting charge weight: 0.35kg
Number of fragments of over 0.25g: Over 1250

Point detoning fuze with super quick and inertia (non ricochet) actions


WEAPON SYSTEMS

All 40mm ATRL-L and RPG-7 Anti-Tank Grenade Launchers

In combat operations, rounds RF-7MA are transported in a bag which is a part of the Launcher's individual set of SPTA (spare parts, tools, accessories)


PACKING

18 rounds / 18 grenades and 18 charges packed in a wooden case

Wooden case size: 895 x 481 x 275 mm, Gross weight: 55 kg, Net weight: 31.5 kg, Volume: 0.12 m³









Specification and photos are not contractual and are subject to verification upon inspection
