40MM GRENADES





TYPE:

Grenades

DESCRIPTION:

40mm Grenades

PRICE:

Upon Request

PACKING:

See Below





40mm grenades



From new manufacture

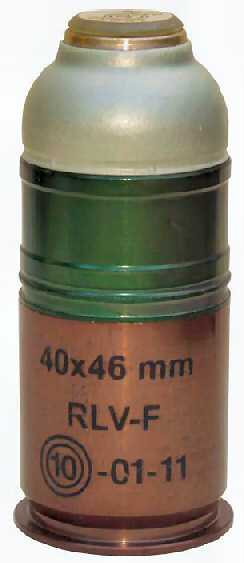

TECHNICAL SPECIFICATION 40 x 46 mm Round RLV - F with Fragmentation Grenade




1. Introduction

The 40x46 mm Round RLV-F is intended to destroy the enemy’s personnel, transport means and light-armoured materials at distance up to 400 m. The rounds are designed to be fired from: - Underbarrel Grenade Launchers: UBGL-M6, UBGL-M7, UBGL-M16; M203; HK 69; etc.; - Stand-alone Grenade Launchers: UGGL-M1, HK 69A1; M 79; STAR FN SCAR; M320; etc.; - Multi-shot Grenade Launchers: Milkor MGL; M32 MGL; ARSENAL MSGL; etc.

The ammunition can be stored in non-heated storerooms for 10 years, but only if they are kept in the standard packing of the manufacturer.



2. Technical characteristics: Type 40x46 mm Low Velocity, Fragmentation
Overall length, mm max 102.5
Weight of the Round, kg 0.250
Weight of the Grenade, kg 0.192
Explosive filling: A-IX-1 (RDX)
Weight of the explosive charge, kg 0.042
Primer type Percussion, Boxer type
Powder type double base
Cartridge case material aluminum alloy
Fuze AF41 (FSQSD1) - point detonating, time and super quick with check action and self-destruction
Arming distance, m from 10 to 40
Self-destruction time, s from 14 to 19
Details of arming function 3 steps of safety
Muzzle velocity, m/s 76
Max firing distance, m 400
Radius of defeat, m 6
Operation temperature range, 0C from minus 43 to 52




3. Packing:

3 metal airtight boxes (40 pcs. in each box), placed in a wooden case

Case dimensions: 875x398x206 mm

Case weight: 47 kg

Case volume: 0.072 m3


4. Class of explosion hazard: 1.1 E, UN 0006

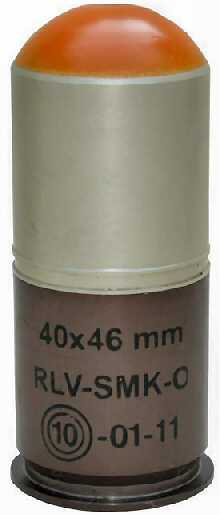

TECHNICAL SPECIFICATION 40×46 mm Round RLV - SMK -O with Smoke Grenade





1. Introduction

The 40x46 mm Round RLV-SMK-O is intended to be fired at distance up to 400 m in order to place a smoke-screen or to mark targets. The rounds are designed to be fired from: - Underbarrel Grenade Launchers: UBGL-M6, UBGL-M7, UBGL-M16; M203; HK 69; etc.; - Stand-alone Grenade Launchers: UGGL-M1, HK 69A1; M 79; STAR FN SCAR; M320; etc.; - Multi-shot Grenade Launchers: Milkor MGL; M32 MGL; MSGL; etc. The ammunition can be stored in non-heated storerooms for 10 years, but only if kept in the original packing of the manufacturer.


2. Technical characteristics:

Type 40x46 mm                              Low Velocity, smoke
Overall length,                                mm max 101
Weight of the round,                     kg 0.227
Weight of the grenade,                 kg max 0.177
Payload                                            smoke mixture
Weight of the smoke mixture,     kg 0.048
Grenade body material                aluminum alloy
Cartridge case material               aluminum alloy
Primer type percussion,              Boxer type
Propellant charge                         double base powder
Muzzle velocity,                             m/s 76±3
Firing distance,                              m 400
Time of smoke emission,            s from 20 to 50
Smoke colour                                Orange
Operation temperature range,   0C
from minus 43 to 52



3. Packing:

3 metal airtight boxes (40 pcs. in each box), placed in a wooden case (120 pcs. in each case)

Wooden case dimensions, mm 875×398×206

Wooden case gross weight, kg 43 max

Case volume, m3 0.072


4. Class of explosion hazard: 1.4 G; UN No. 0303

















40mm x 46 HE - FRAG









Specification and photos are not contractual and are subject to verification upon inspection
