3FTST





TYPE:

Fire Truck

DESCRIPTION:

Redwood 504 Fire Truck

PRICE:

Upon Request

PACKING:

As is, where is





REDWOOD 504 FIRE TRUCK











CHASSIS:



CAB: 4-DOOR,130" SIX PERSON 1" RAISED ROOF ALUMINUM CAB

SEATING: BOSTROM 300/ABTS 350/ABTS

FRONT GVWR: ARVIN MERITOR #18,000 W/MICHELIN 315/85R TIRES

REAR GVWR: ARVIN MERITOR #24,000 W/MICHELIN 12R TIRES

WHEELBASE: 170"

ENGINE: CUMMINS ISL 370HP WITH EXHAUST BRAKE

TRANSMISSION: ALLISON EVS3000

ALTERNATOR: 270 AMPHERE LEECE/NEVILLE

BATTERIES: FOUR(4) 950 CCA INTERSTATE

BRAKES: MERITOR S-CAM,WABCO 4-CHANNEL ABS

MISC: DUAL AIR HORNS,12"STAINLESS STEEL BUMPER,WEST COAST STAINLESS MIRRORS,TILT-TELESCOPIC STEERING WHEEL,FRONT AND REAR TOW EYES



PUMP MODULE:



CONFIGURATION: SIDE MOUNT-BRUSHED STAINLESS STEEL PANELS

PUMP: HALE Q-MAX 1500 GALLONS PER MINUTE

VALVES: HALE STAINLESS STEEL "TORRENT"

PLUMBING: STAINLESS STEEL

DISCHARGES:

(1) 3.00" RIGHT SIDE

(2) 2.50" LEFT SIDE

(1) 2.50" RIGHT REAR

(2) 1.75" CROSSLAYS

(1) 3.00" DECK GUN RISER

INTAKES:

(2) 6.00" MAIN INLETS

(1) 2.50" LEFT SIDE AUXILLARY INLET

MISC: (1) 1.50" TANK FILL,(1) 3.00" TANK TO PUMP,OIL-LESS PRIMER,CLASS 1 PRESSURE GOVERNOR,ENGINE STATUS CENTER,CLASS 1 MASTER AND PRESSURE GAUGES



APPARATUS BODY:



CONSTRUCTION: EXTENDED ALUMINUM WITH 3/16" ALUMINUM PLATE INTERIORS

STYLE: 220 CUBIC FOOT RESCUE TYPE

DOORS: R.O.M. ALUMINUM ANODIZED ROLL-UP

HOSE BED: CAPACITY FOR 2000' OF 5" LDH

LADDERS: ALCO-LITE

(1) 24' 2-SECTION

(1) 14' ROOF

(1) 10' FOLDING

BOOSTER TANK: 500 U.S. GALLON "L" SHAPED FOR LOW HOSE BED

BOTTLE STORAGE: SEVEN (7) RIGHT FENDER

MISC: (2) 10' HARD SUCTION HOSES, 4" SCOTCHLITE STRIPE AND (1) HOSE BED DIVIDER



ELECTRICAL SYSTEMS:



UPPER WARNING: WELDON 9188-6605 6 ROTATOR HALOGEN LIGHT BAR, (2) WELDON 91880-5840-10 RED ROTATORS, (2) WELDON 4671-0000-20 6"X4" HALOGEN RED LIGHTS

LOWER WARNING: (6) WELDON 4671-0000-10 HALOGEN RED LIGHTS

TAIL LIGHTS: WELDON MODEL 3784 TRIPLER CLUSTER

CHARGER: IOTA 45-AMP DLS-45

WORK LIGHTS: (2) UNITY 6"

SIREN: WELDON 200 WATT SIREN

SPEAKER: WELDON 100 WATT SPEAKER

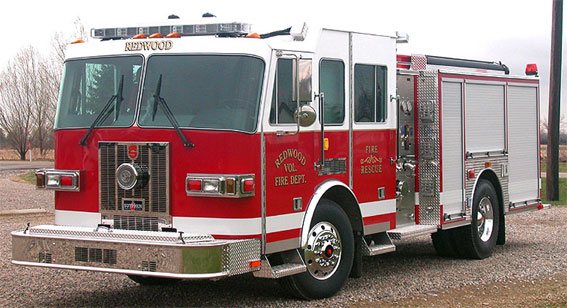

The unit pictured has optional equipment added.I will fax you the 4 page option sheet for these units.(Hoses are not included.)



The start time for delivery would begin in 6 months, ending within 1 year.



The overall width of the unit is 102" excluding cab mirrors.







Specification and photos are not contractual and are subject to verification upon inspection
