GENERAL EQUIPMENT CORPORATION INC.



8724 Sunset Drive #191Miami FL 33173 USA


Email:
info@generalequipment.info ● www.generalequipment.info








30MM19





TYPE:

Ammunition

DESCRIPTION:

30mm Aircraft Ammunition for Mig 19

PRICE:

Upon Request

PACKING:

As is, Where is

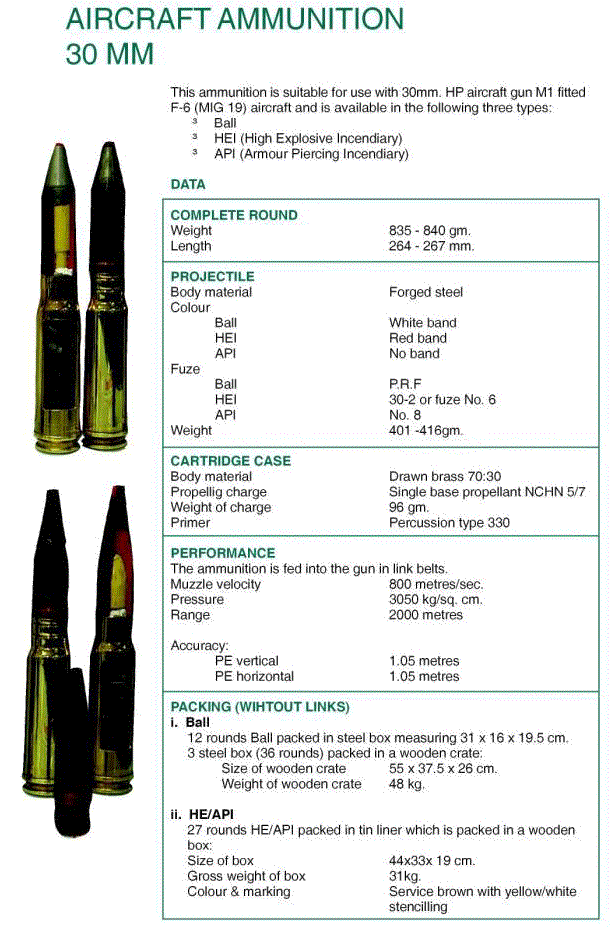

30mm aircraft ammunition for mig 19





30 MM

This ammunition is suitable for use with 30 mm. HP aircraft gun  M1 fitted F-6 (MIG 19) aircraft, the ammunition is fed into the gun in link belts and is available in the following three types:


  • Ball
  • HEI (High Explosive Incendiary)
  • API (Armour Piercing Incendiary)
Specifications:

COMPLETE ROUND

Weight

835 - 840 gm
Length

264 - 267 mm



PROJECTILE
  Body material

Forged steel

  Colour      - Ball
                     - HEI
                     - API

White band
Red band
No band

  Fuze Ball ammunition, is fitted with P.R.F.
HEI ammunition, is fitted with fuze
30-2 or fuze No. 6
API ammunition, is fitted with fuze
No. 8
  Weight 401 - 416 gm


CARTRIDGE CASE
  Body material Drawn brass 70:30
  Propelling charge Single base propellant NCHN 5/7
  Weight of charge 96 gm
  Primer Percussion type 330


PERFORMANCE
  Muzzle velocity 800 metres/sec.
  Pressure 3050 kg/sq. cm.
  Range 2000 metres

  Accuracy:
               PE vertical
               PE horizontal

1.05 metres
1.05 metres













Specification and photos are not contractual and are subject to verification upon inspection











TAKE NOTICE!



PLEASE BE ADVISED THAT INFORMATION INCLUDED IS CONFIDENTIAL IN NATURE AND IS BASED ON PRE-EXISTING BUSINESS RELATIONSHIP WITH THE LEGAL OWNER OF PROPERTY DESCRIBED HEREIN (IF APPLICABLE). AS SUCH, UPON RECEIPT OF SAID INFORMATION THE RECEIVER AKNOWLEDGES THAT ANY UNAUTHORIZED CONTACT WITH SAID LEGAL SELLER WILL BE CHARACTERIZED AS A BREACH OF CONFIDENTIALITY AND SAID AGREEMENT MAY BE ENFORCED UNDER EXISTING LAW OR IN EQUITY.



This paper was prepared by General Equipment Corp.
The paper represents an offer of a partner of General Equipment Corp.
All rights are reserved by and for General Equipment Corp..
All content and ideas of this paper are the property of General Equipment Corp.












Defense items are subject to final destination approval and granting of an

export license issued by exporting country's authorities
