Dimension (mm×mm×mm)
|
10415×2500×3340 |
|
Wheel base
(mm) |
5050+1450
|
|
Curb weight
（kg）
|
13670
|
|
Max Speed：（Km/h） |
≥80 |
|
Front
overhang/rear overhang |
1410/2366 |
|
Engine
 |
Model
|
WD615.50，water-cooled，four
strokes，6
cylinders straight in line，turbocharged,
|
|
Fuel type |
Diesel |
|
Min rate of
consuming fuel（g/(kW.h)） |
206g/Kw.h |
|
Rated Power
/ rotating
（KW/(r/min) |
206Kw/2200rpm |
|
Emission
|
EUROⅡ |
|
Maximum
Torque / rotating speed（N.m/(r/min)） |
1160Nm/1100-1600rpm |
|
Displacement（ml） |
9726 |
|
Fuel tanker
capacity
（L） |
400 |
|
Clutch
|
Model |
GFX420,
Single dry frictional disc，Hydraulic
boosting |
|
Gearbox  |
Model |
5S-111GP
mechanical type，Based
on ZF German technology ,9Forward speed gear. |
|
Gear ratio
of speed |
8.48/6.04/4.39/3.43/2.47/1.76/1.28/1.00
Crawler：13.04
Reverse:11.77 |
|
Brake system |
Service
brake |
Brake gap
can be adjusted automatically, double circulation air
brake system |
|
Assistant
brake |
Engine
exhaust brake |
|
Park brake |
Potential
springs pressing on middle and rear wheels
|
|
Steering
system |
Model |
ZF8098, whole
circulation in ball type, hydraulic boosting
|
|
Suspension
system |
Rear
Suspension |
Non-free
standing stabilization spring，
stabilization suspension，
13pcs |
|
Frame
 |
Fish belly
shape, variable width, variable sections |
|
Front axle
(Mercedes Benz Technology) |
Double-shoe
pneumatic brake, All driving steering axle
AL7/1DS-7 |
|
Middle and
Rear axle (Mercedes Benz Technology) |
Double-shoe
pneumatic brake, ductile casting casing, with hub
redactor, double reduction driving axle
Middle axle:
HD7/016DGS-13/ 5.263
Rear axle:
HL7/015DS-13 |
|
Tire
|
12.00R20
radial tire |
|
Qty of tire |
11 |
|
Electrical
system |
Battery |
2X12V/135Ah |
|
Generator |
28V-35A |
|
Starter |
5.4Kw/24V |
|
Cab
 |
Long cab,
with sleeper
Full steel
skeleton structure, covered with double layer steel
plate;
Can be
tipped forwardly;
With
Tropical thermostat（71C）
|
|
Interior
trimming:
Integral
interior trimming, Integral instrument, digital
instrument, radio (with USB interface), high back/shock
absorption seat for driver, high back seat for
co-driver. Steering wheel can be adjusted. |
|
Exterior
trimming:
Metal
bumper, two steps, new mirror. |
|

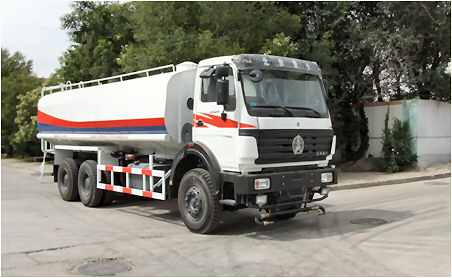

SPECIFICATION OF WATER TANK |
|
Tank capacity |
20000L |
|
Material |
Q235B
Carbon
steel |
|
Head thickness
|
5mm |
|
Tank thickness
|
5mm |
|
Blowing forward and sprinkling rear type，with
pump，inner
antiseptic design |
