25 TON DUMP





TYPE:

Truck

DESCRIPTION:

25 Ton Dumper

PRICE:

Upon Request

PACKING:

As is, Where is

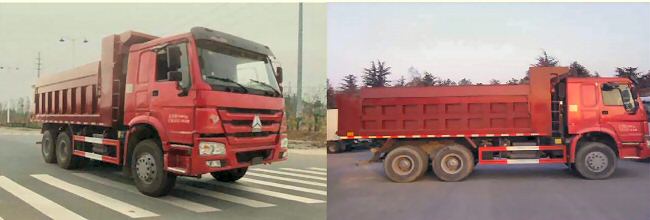

25 TON DUMPER

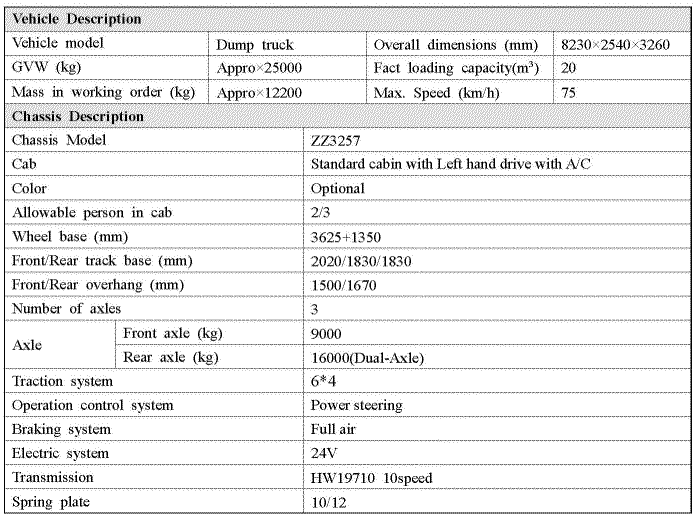

-       Model  ZZ3257
-       Capacity of dumper   20CBM rock body
-       Capacity /Load   25ton
-       Weight repartition on tyres    Front tyres 9ton    Rear tyres 16ton

-       Engine: brand    CHINA WEICHAI ENGINE
-       Type                  :  cylinder in-line with water cooling, supercharging & intercooling
-       Displacement  :  9.726L
-       Engine output :   336hp /  2200 rpm
-       Max. Torque    :  1350NM / 1100-1600rpm
-       Dual air Filter  :
-       Engine Size     :
-       Fuel Tank Capacity      : 270L
-       Transmission (gear box): 10 speed transmission Front + 2 Speed Rear
-       Clutch type      :
-       Steering          :  Hydraulic Power steering
-       Front axle        :  drum type,   9 tons
-       Rear axle reduction    :
-       Ratio               :   5.73
-       Drive type        :   6 x4
-       Tire                  :   10 +1spare
-       PTO for Dump pump operation
-       Hop Reduction rear axles with minimum 13T with locking system diff lock
      With leaf-spring conventional bogie
-       For front axles With minimum load 7.5T
-       Braking system including humidity dryer
-       ABS


Requested Docs
-       Brake working systems
-       Emergency braking systems
-       Air Pump specs
-       Nbr of Air tanks
-       Type of braking systems
-       Brake area front and rear

Electricity 24V includes :
-       2 batteries 12V  to send specs
-       Adequate Dynamo ( specs )
-       Rear and front Lamps
-       Fog lamps
-       Signalization lamps  Front & Rear
-       Light inside cabin
-       Main interrupter for batteries
-       KM meter

Cabin
-       2 doors with Temperature & sound proofing
-       with A/C
-     with external mirrors

Chassis
-       Steel
-       Overall dimensions with design  8475*2496*3025

Steering
-       Hydraulic Power steering
-       Hydraulic Pump


Dumping System
-       Pump details of pump
-       Details of pulling jack
-       Dump chassis to be adequate for rock transportation
-       With self opening door once rear unloading
-       Soil dump thickness min 10mm
-       Lateral wall thickness min 8mm
-       Dump design and weight

Warranty
-       12 month or 100000km

Spare Parts
-       Qty = 20 Oil Filters
-       Qty = 20 Diesel Filters
-       Qty = 10 Hydraulic oil filters
-       Qty = 10 Air Engine filters
-       Qty = 4 brake collars
-       Qty = 2 Transmission disk
-       Qty = 1 Jack reparation kits

Each Truck will have
-       Operation instruction book
-       Service Manual book
-       Detailed catalogue
-       Spare parts catalogue + CD













Specification and photos are not contractual and are subject to verification upon inspection
