22 MW POWER PLANT





TYPE:

Power

DESCRIPTION:

22 MW Power Plant

PRICE:

Upon Request

PACKING:

Upon Request





22 MW POWER PLANT



Subject unsold or market withdrawal





Energy Project :Complete Generating Operation Plant



(Ideal for any city / country needing power FAST !!)





Energy Project



Complete Generating Operation Plant



Project detailed description



It used old tires and it could be set up to burn wood chips oil or even natural gas

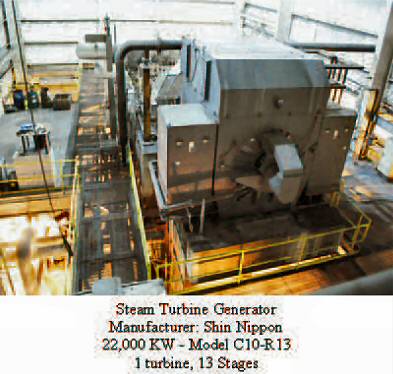

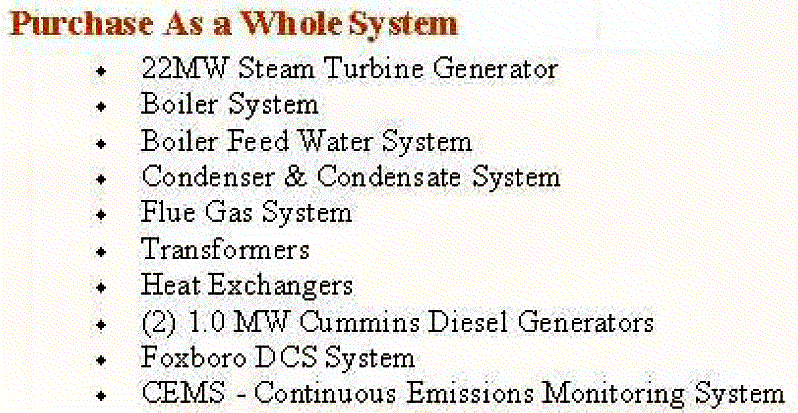

22MW Steam Turbine Generator



Boiler System

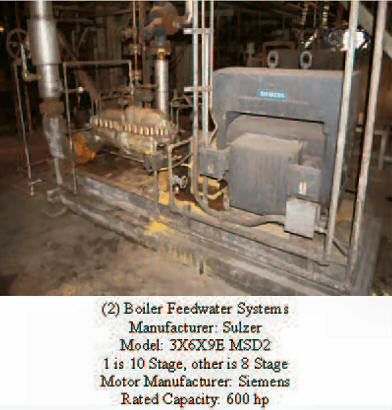

Boiler Feed Water System

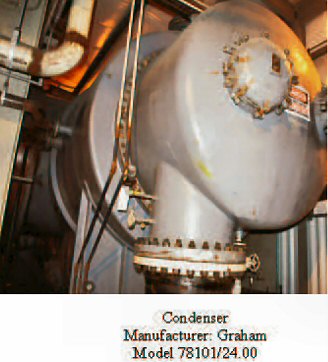

Condenser & Condensate System



Flue Gas System

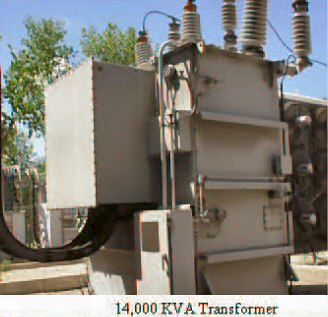

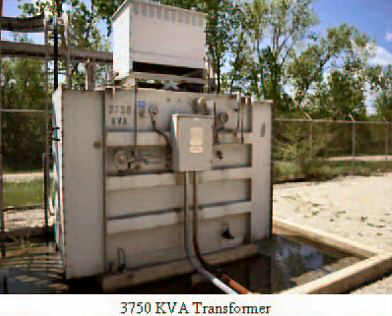

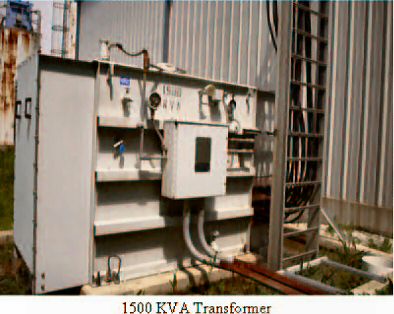

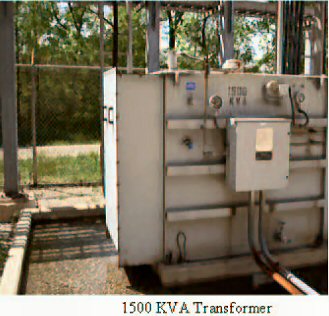

Transformers

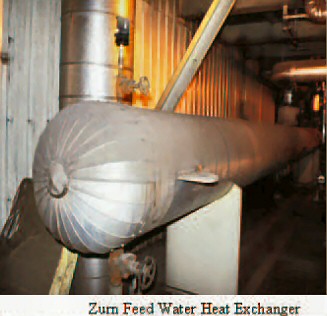

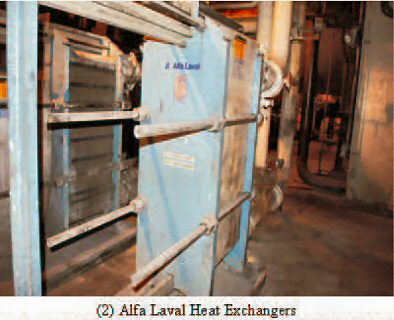

Heat Exchangers

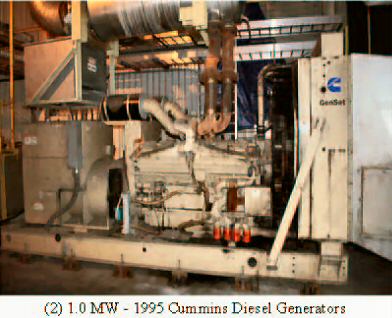

(2) 1.0 MW Cummins Diesel Generators

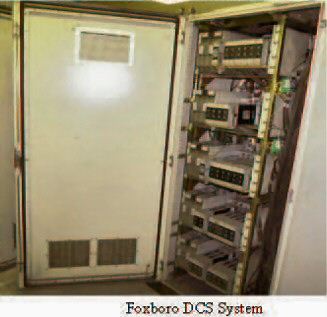

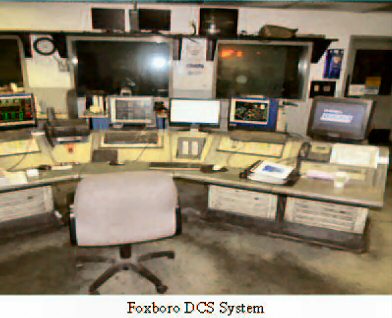

Foxboro DCS System

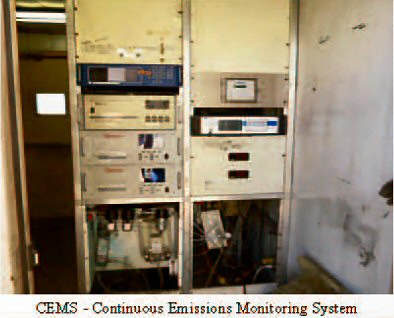

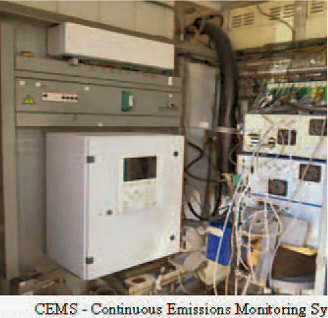

CEMS - Continuous Emissions Monitoring System

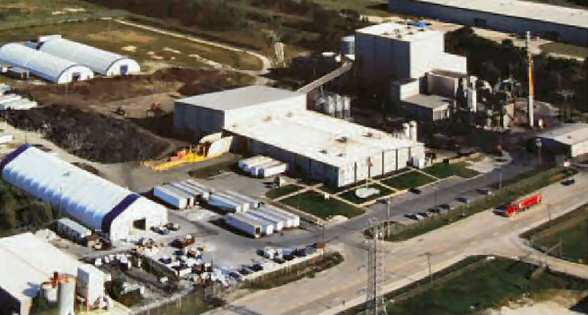

*ELECTRICAL GENERATION FACILITY*





The plant opened in 1996. Most tire-to-energy facilities mix the shredded Tires with coal, oil, wood or other fuels before burning them. However, This facility uses a tire-fired boiler without additional fuel.



The steam produced drives a double, uncontrolled extraction, condensing Steam turbine which is mated to a synchronous generator.



At an optimum, the boiler will burn just over 16,500 pounds per hour of Shredded tires with a higher heating value of 14,500 BTUs-per-pound. Among Commonly used fuels, only oil has a higher energy value.



The $105 million waste tire-to-energy project produces 19.9 megawatts of Electrical power, most of which is sold to Common-wealth Edison in Chicago.

This quantity of energy serves about 16,500 U.S. Households; a small Portion of the electricity generated will power the plant itself.



In the process, the facility consumes 65,000 tons of tires annually. This Equates to 6.5 million passenger car tires, about 30 percent of the scrap Tires discarded in one US State area.



In addition to the electrical energy, incinerated tire scraps produce by Products used by other industries. These non-hazardous materials include Steel, zinc oxide and gypsum.

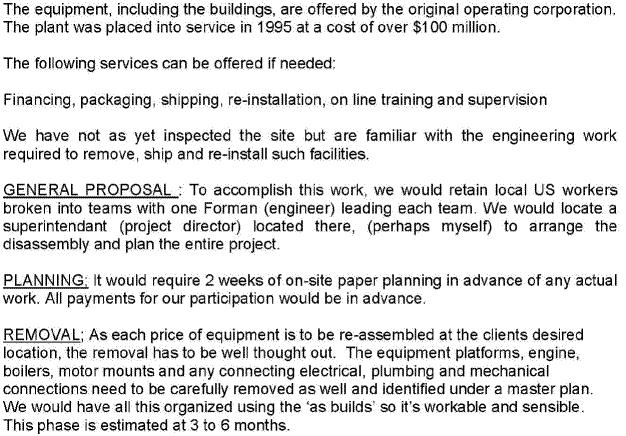

It is able to be packaged this facility, transport it and re-assemble the Plant in any location worldwide.



It would be workable to be moved the items and be provided engineers and Personnel to install and make all operational at an additional cost.

Additionally there is the possibility to be arranged financing of 80% at 4% - 5% for 5 years if needed, providing that there is available a 20% down payment.



Note: The plant was running 4 months ago. They processed shredded old tires Into electric power.    Wood chips or natural gas would also work.   All The equipment was new in 1995 at a cost of $100,000,000.00. The engineers are available to disassemble, Crate, ship and re-assemble at costs as indicated in the attachments.



The equipment comes with plans, and manuals for all equipment as well as Spares and some tooling.

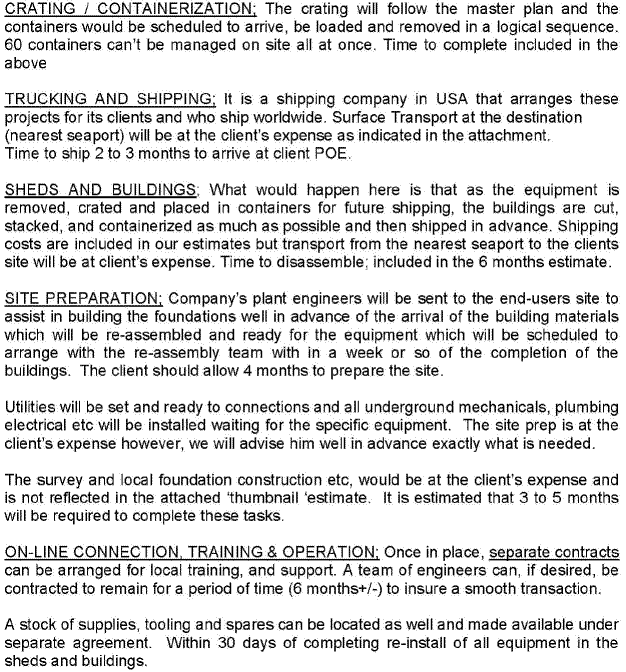

The buildings housing the equipment can also be disassembled and included In the transaction at a very reasonable cost.  The complete plant (fewer Buildings) would require about 60 containers.  It can be sent engineers to Design and build the foundations and have the equipment crated and the Buildings shipped in advance.



The plant can be engineered to burn municipal solid waste  and be used then To reduce landfills and dumps.



This is a remarkable facility and a great opportunity to have a commercial Electric company up and ruining in about 6 to 12 months at a tenth of the cost.














Specification and photos are not contractual and are subject to verification upon inspection
