2 x 10 MW Pielstick Power Plant
As is, Where is
2 x 10 MW Pielstick power plant
2 x 10 MW HFO Pielstick Gensets with associated equipment as is, with the associated key components. They are in pretty good condition and have been used only as a stby.
Disassembly, packing, (4 to 6 man month) FOB, CIF layout (3-4 man month) supervision, erection ( 2 -4 man month) and civil works supervison of a local contractor ( 2 -4 man month ) can be offered but will be as extra charge.
Overhaul can be done in the workshop with a 6 or 12 month warranty and will be quoted separately.
Product: Power station
Type: Heavy Fuel Oil
Effect: 15300 kVA(max) (12250kW)
Rpm: 428 rpm
Frequency: 50 Hz
Info: Model: 18PC3V. Peak load 12 MVA.
2 complete sets of diesel-generators incl. spareparts.

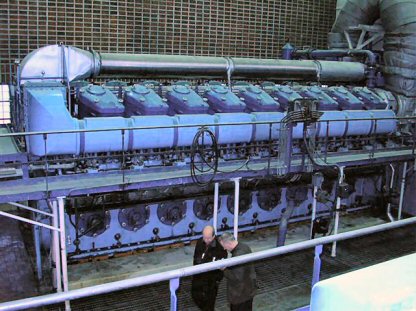

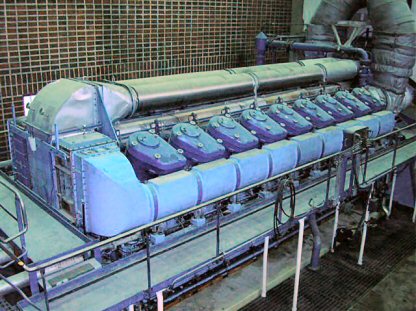

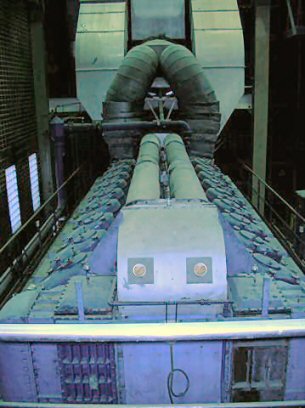

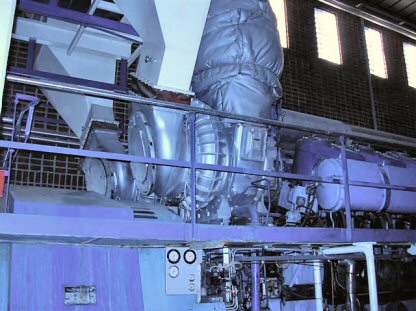

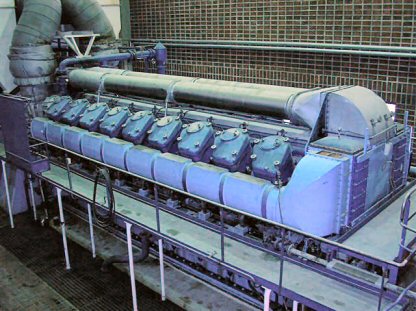

4-stroke, 18 cylinders, V-built turbocharged medium speed diesel type S.E.M.T. - Pielstick 18 PC3V, manufactured by Lindholmen Motor in Göteborg.
Engine performance at 20C cooling water temperature, air 27C and 750 mm Hg pressure:
Max output 12580 kW
Speed at max output 428 rpm
Weight 164 tons
As fuel diesel oil or HFO can be used
Specific fuel consumption at nominal output 149 gr/Hp/h but will not be guaranteed

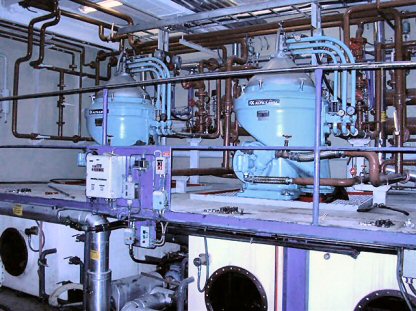

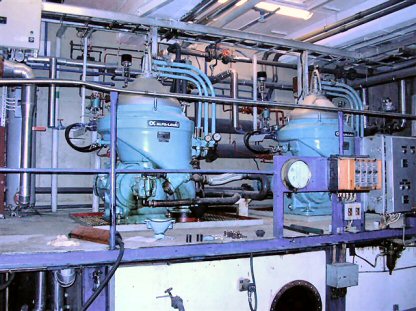

Alfa-Laval separators for HFO, double sets for lube and fuel
Alternators are fully encapsulated 3-phase synchronous Strömberg design, provided with water/air cooler and with following main data:
Max output 12250 kW
Voltage 10500 V
Current 793 A
Frequency 50 Hz
Speed 428 rpm
Weight approx. 40 tons/alternator
ASEA manuf. 70/10 kV, 30 MV
If above units kept warm, each engine can produce power to common grid in less than 10 min after starting order.
Specifications assumed herein correct but not guaranted.
A large amount of critical spares included, like pistons, cylinder, etc.

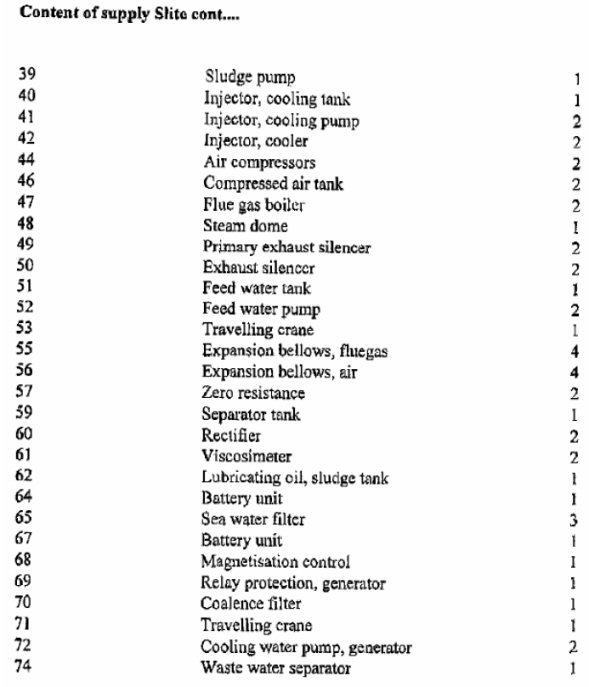

Including all auxilaries, grid transformer, daytanks for LFO and HFO, etc. everything in station.
Note. The Diesel engines are preserved and not used but still on original foundation in a heated shop. A test load protocol available from time when shut down show full load achieved without any problem.
Specification and photos are not contractual and are subject to verification upon inspection
