GENERAL   EQUIPMENT   INC.



8724 Sunset Drive #191Miami FL 33173 USA


Email:
info@generalequipment.infowww.generalequipment.info






122MM ROCKET





TYPE:

Rocket

DESCRIPTION:

122MM Rocket

PRICE:

Upon Request

PACKING:

Ex Depot

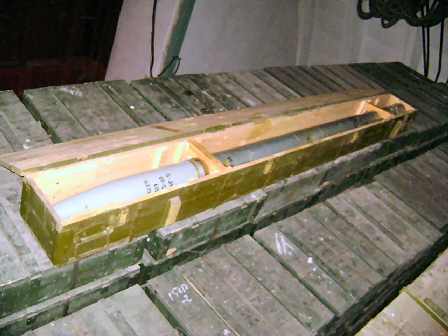

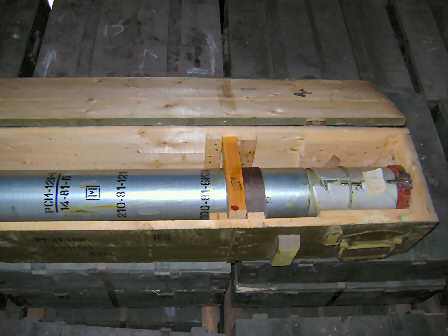

122mm rocket



Subject Unsold or Market Withdrawal

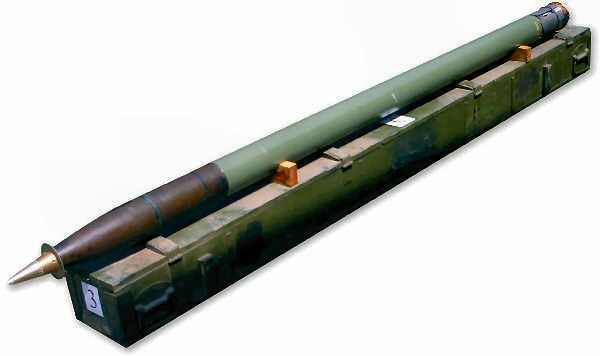

9M22U 122mm rocket

The 9M22U, also known as M-21OF, is a 122mm unguided rocket projectile fitted with a High Explosive (HE) fragmentation warhead.

The 18.4 kg warhead features 1,640 pre-fragmented (2.4 grams) and 2,280 semi-ready (2.9 grams) fragments.

It has been optimized to engage manpower, sheltered and in the open, unarmored materiel and Armored Personnel Carriers (APCs) in concentration areas, artillery and mortar batteries, command posts and other targets.

The rocket projectile can engage targets at ranges of up to 20,100 meters operating attemperatures between -50-degree to +50-degree Celsius.

The 9M22 rocket projectile was developed and produced by Splav for the Grad multiple launch rocket system.

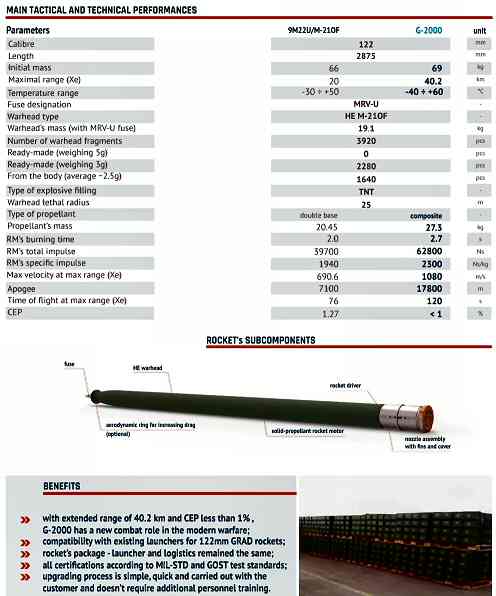

Technical specifications

Calibre 122 mm
Weight 66.6 kg
Warhead weight 18.4 kg
Length 2870 mm
Number of fragments: - prefragmentated (2.4 g) - semi-ready (approx. 2.9 g) 1640 2280
Range of fire up to 20.1 km min. 5km
Operating temperature range of combat employment -50..+50





Specification and photos are not contractual and are subject to verification upon inspection
