120MMMORTEM12038M





TYPE:

Ammunition

DESCRIPTION:

120mm Smooth-Bore Mortar EM-120-38M

PRICE:

Upon Request

PACKING:

See below

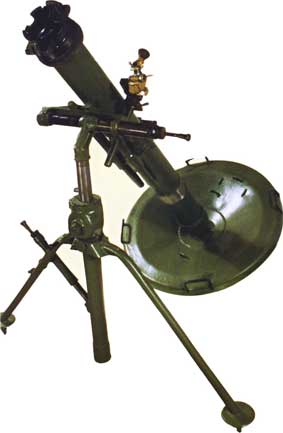

120mm smooth-bore mortar em-120-38m











TECHNICAL SPECIFICATION



MAIN TACTICAL CHARACTERISTICS





Calibre: 120 mm
Length of the body: 1520 mm
Hitting range:
- Maximum to be achieved by a long range bomb:
- Minimum
5700 m
7100 m
460 m
Rate of fire, shots per minute: up to 15
Elevation angle, degrees: 45 up to 80
Deflection angle (directional) degrees:
- Without sliding the bipod:
- By sliding the bipod

+- 5
+- 26
Weight:


- mortar in combat position:
- body:
- base plate:

253 kg,

On preliminary request, the mortar set may include a safety device for avoiding double charging,  type  04Sp. The weight in combat position will be 260kg respectively
98 kg
75 kg
 kg78









DESCRIPTION





Type: EM-120-38M
Full set list of units:
- 120mm smooth mortar, type EM-120-38M:
- MUM type sight, or MPM type sight:
- Set of spares, individual:
- Technical description and instruction manual:
- Range chart for six (06) sets of mortars:

1 pce
1 pce
1 pce
1 pce
1 pce









PACKING



The mortar set is shipped in four (04) parcels, including three (03) wooden cases, 1200x1100x550mm 140kg; 2000x400x580mm 120kg; 1770x670x590mm 190kg, and one two-wheel cart without packing



WARRANTY


Warranty covers up to 1000 shots or 18 months period following the commissioning, but not more than 24 months after the delivery date

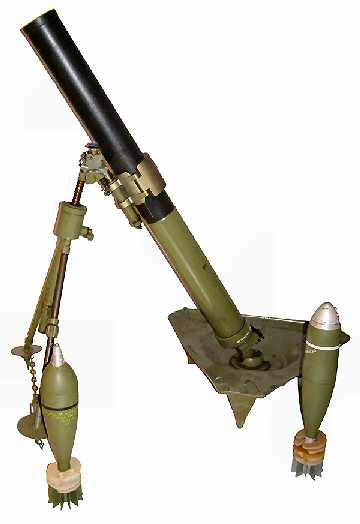

120mm MORTAR M74







Light mortar 120 mm M74 is a light-weight weapon of infantry close support, designed for annihilation of manpower and for destroying of firing points by short fire engagements.

It is particularly effective on intersected and hilly terrains, where the enemy may be hidden by a rear slope.

The mortar can effectively open breaches in wire barriers or mine fields, demolish lighter fortifications and remove top soil covers over heavy bunkers.

The mortar is also well suited for combat against mechanized units, by destroying their infantry.

It is also suitable for making of smoke screens and for target illumination at night.

The mortar is particularly suited for the mountaineer, special and airborne units, as well as for territorial defence units.



Caliber 120 mm
Length of the tube with stand 1692 mm
Mass transport of weapons 219 kg
Mass of weapons in combat position 120 kg
The angle of fire 45- 85
Horizontal field of action:
- without moving the stand left 3,right 3
- with displacement rack 360
Rate of fire 12 rds/min
Max range (LTF mine 120 mm M62P3) 6440 m
MAX pressure in the tube <835 bar
Gunpoint devices NSB-4B
Number of operators 1 + 4






Specification and photos are not contractual and are subject to verification upon inspection
