12.7UTIOS





TYPE:

HMG

DESCRIPTION:

12.7mm (.50) Heavy Machine Gun NSW

PRICE:

Upon Request

PACKING:

See below

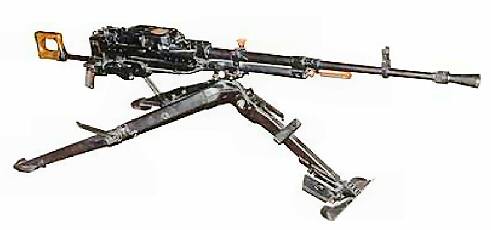

12.7mm (.50) heavy machine guns nsw utios









Calibre: 12,7mm x 108 mm

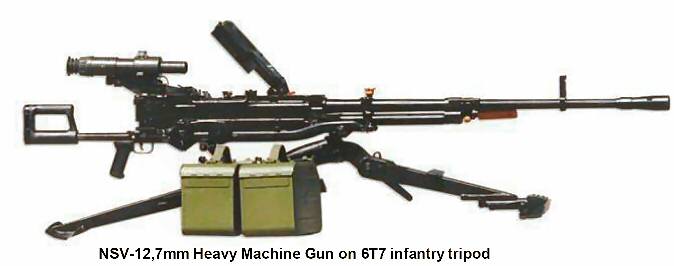

Weight: 25 kg gun body, 41 kg on tripod 6T7 with 50 rounds of ammo
Length: 1560 mm (1900 mm on 6T7 tripod)
Length of barrel: 1346 mm
Feeding: Belt 50 rounds
Rate of fire: 700-800 rounds/min



The NSV heavy machine gun is a gas operated, air cooled, belt fed, automatic only, weapon which fires from an open bolt.

The gas system consists of a gas chamber, located below the barrel, with a gas regulator and a long-stroke gas piston attached to the bolt carrier. The barrel can be quickly replaced in the field during sustained fire. The receiver is of generally rectangular shape, and is assembled from heavy gauge steel stampings and machined inserts with many rivets. Bolt locking is achieved by lateral displacement of the entire bolt to the left side, until its locking lugs are engaged with locking recesses cut in the insert attached to the receiver wall. The bolt is linked to the bolt carrier with swinging links which control the longtitudal and lateral movement of the bolt and, once the bolt is in battery and fully locked, strikes the firing pin to discharge the gun.

The bolt carrier has several anti-friction rollers which ride on the tracks cut in the receiver. The rear of the receiver houses a spring buffer for the bolt group.

The NSV uses non-disintegrating steel belts with open links; feed is of the singlestage type. Belts are assembled from 10-round pieces, using a cartridge as an interlink. The standard belt feed unit feeds from the right side, but any NSV gun can be set up for alternative left-side feed. The belt indexing mechanism is built into the feed cover, which swings up and forward for loading and unloading. Spent cartridges are ejected forward through a short tube, located to the right of the barrel.

The firing mechanism of the NSV consists of a trigger lever with the necessary linkage to the sear, and a mechanical safety. Firing controls must be built into the mount, in the form of a pistol grip on the cradle of the infantry tripod, or a firing solenoid in the cradle of the tank mount.

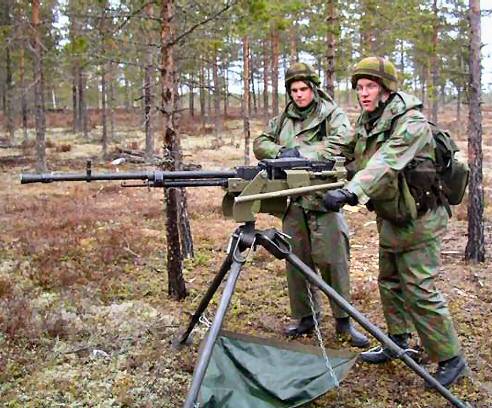

The standard mounting is either an infantry tripod, adjustable for height and intendedfor ground fire only, or a low-profile AA mount with mechanical traverse and elevation mechanisms and special sighting equipment. The infantry tripod can be folded down and carried by the soldier as a backpack using special slings. This tripod also houses a foldable shoulder rest (with a spring recoil buffer), a pistol grip with trigger, and a gun charging mechanism. This consists of a steel cable with a T-grip, wound on a spring-loaded drum, with a gear and toothed rack that connects to the bolt carrier once the gun is properly installed on its cradle in the tripod.

In infantry configuration, two soldiers can move the NSV across the battlefield; the same two soldiers can carry the NSV for longer ranges if the gun is dismounted from the tripod. One soldier then carries the tripod as a backpack, while the other carries the gun body.

Each man also carries one ammunition can with a belt.

Standard sighting equipment for infantry NSV guns is the SPP selectable power telescopic sight (3X or 6X), with an illuminated range-finding reticle. Each gun is also fitted with back-up iron sights.








  No. Nomenclature Measures QTY(pcs) Weight of one case Total weight Volume of one case Total volume
  Case №1  NSV-12,7 ,2 barrels 1290х340х270 500 60 30000 0,1184 59,2
  Case №2 Tripod  UPM-170 (2pcs) 1055х645х500 250 79 19750 0,3402 85,08
  Case №3 Ammo cans  56ZL-542М (10pcs) 1050х700х310 100 59 5900 0,2279 22,79
  Case №4 Links 6L19 (140pcs) 890х380х300 125 38 4750 0,1015 12,69
    Total   975   60400   179,76



                  Transport suggestion :
                  AN-12     12-20 tons         100 mЗ
                  IL- 76     40-50 Tons        220 m3





Note:

1. A machine gun NSVP-12,7 is supplied without an optical sight and a spare barrel.

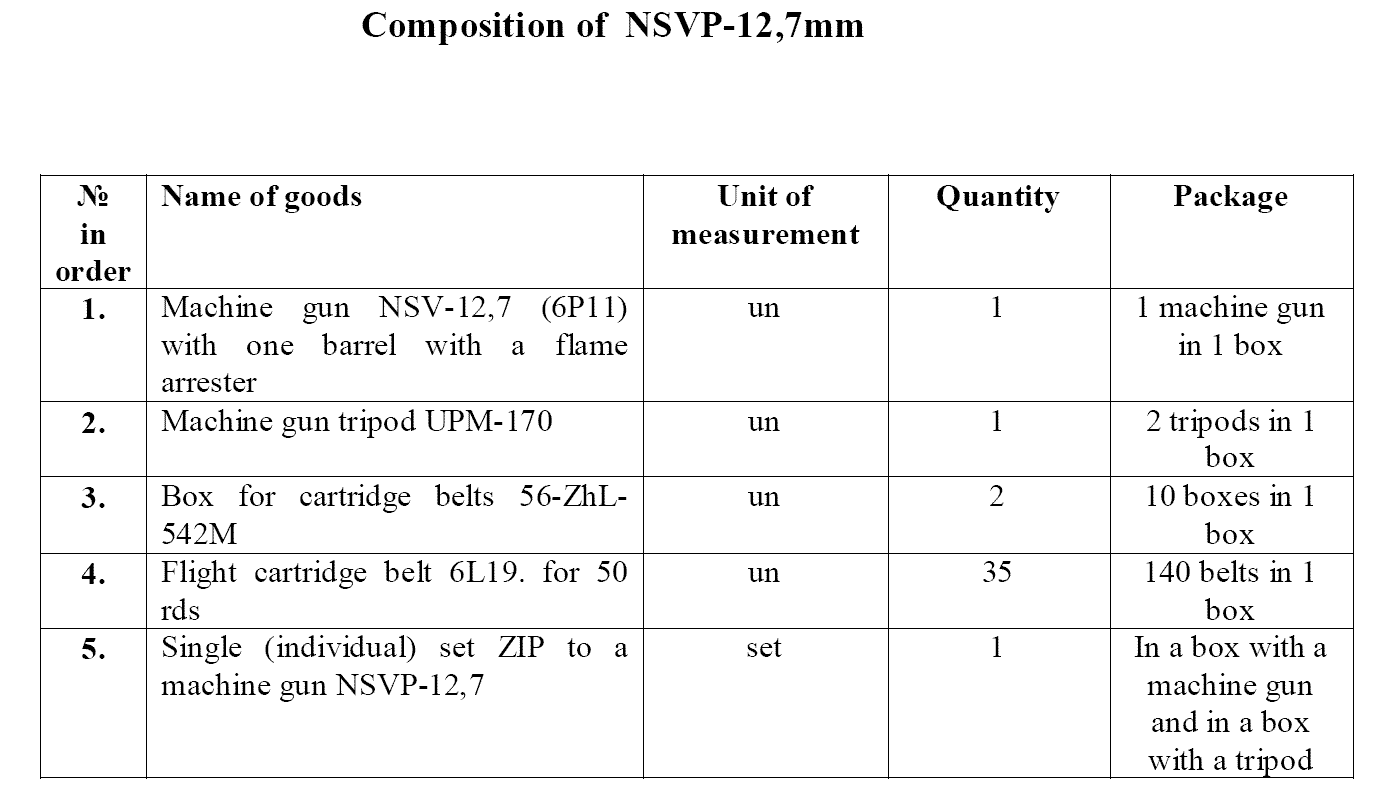

2. Supply of articles that are in the set of NSVP-12,7 is made in the quantity and package according to the above Sheet of the set composition of the supply.

3. A machine gun NSVP-12,7 is registered on a mechanical sight by a supplier.

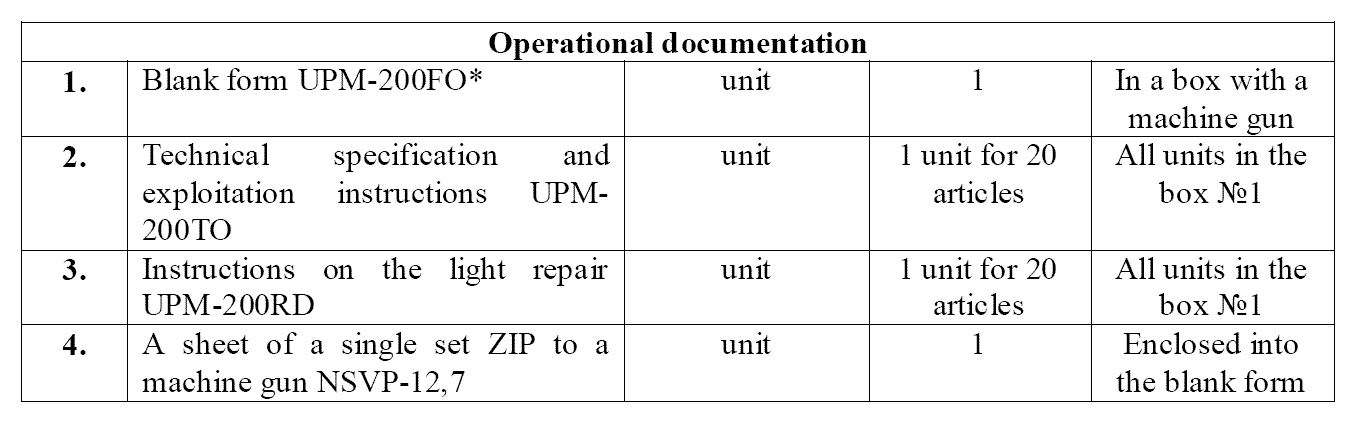

4. Operational documentation is supplied in Russian.

5. UPM-200 means NSVP-12,7 in a full set.

Packing Specifications :

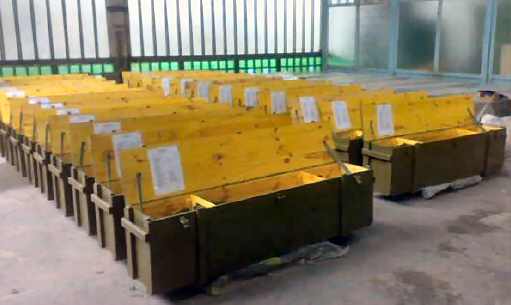

Box.1 " Product NSV-12,7 with 1 barrel " 1290х340х270mm weight of 52 kg Volume 0.1184m3

Box.2 " Product UPM-170 (2 pieces TRIPOD) " 1055х645х500mm weight of 79 kg volume 0.3402m3

Box.3 " Magazine BOXES 56JL-542M (10 units) " 1050х700х310mm weight of 59 kg volume 0.2279m3

Box.4 " Magazine BELTS (50rd) # 6L19 (140 units) " 890х380х300mm weight of 38 kg volume 0.1015m3

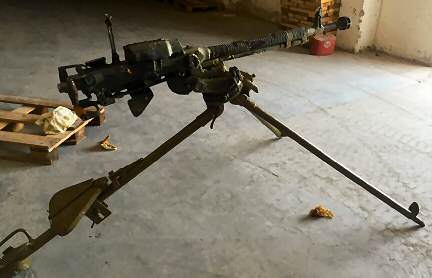

DHSK 12.7 x 108mm



Unused from Arsenal stock



Manufactured in 1945





See details at:




DShK Photo.pdf






Specification and photos are not contractual and are subject to verification upon inspection
